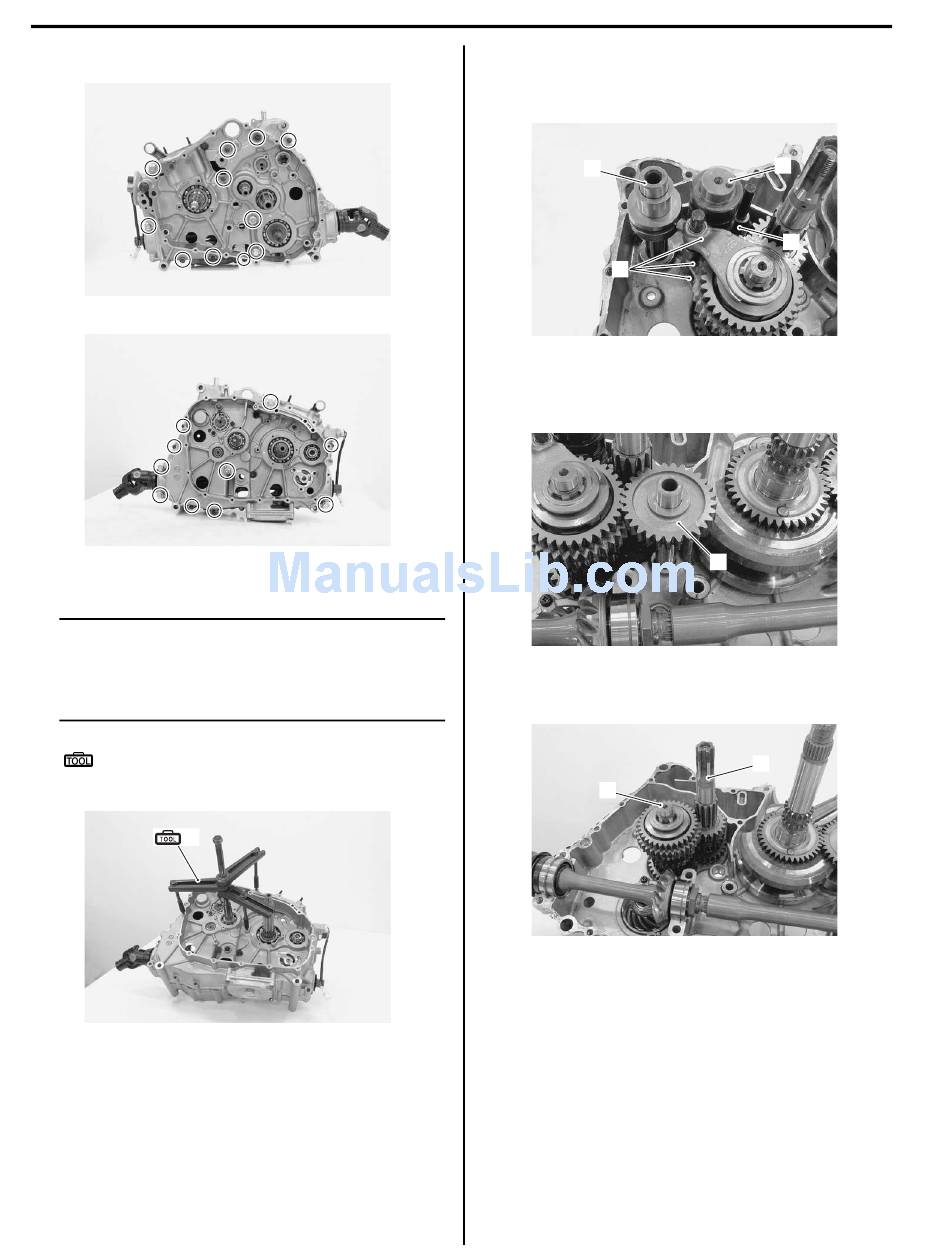

1D-42 Engine Mechanical:
2) Remove the crankcase bolts.
3) Separator the crankcase with the special tool.
NOTE
• The crankcase separator plate is parallel
with the end face of the crankcase.
• The crankcase must remain in the
crankcase half.
Special tool
(A): 09920–13120 (Crankcase separating
tool)
(A)
Gearshift Cam
Remove the transfer reverse gearshift cam assembly
(1), gearshift cam (2) and gearshift forks (3).
I827H1140144-01
Transmission
1) Remove the reverse idle gear assembly (1).
I827H1140145-01
2) Remove the driveshaft assembly (2) and
countershaft assembly (3).
I827H1140146-01
1
3
1
3
2
2
3
I827H1140147-01
I827H1140148-01
I827H1140149-01
