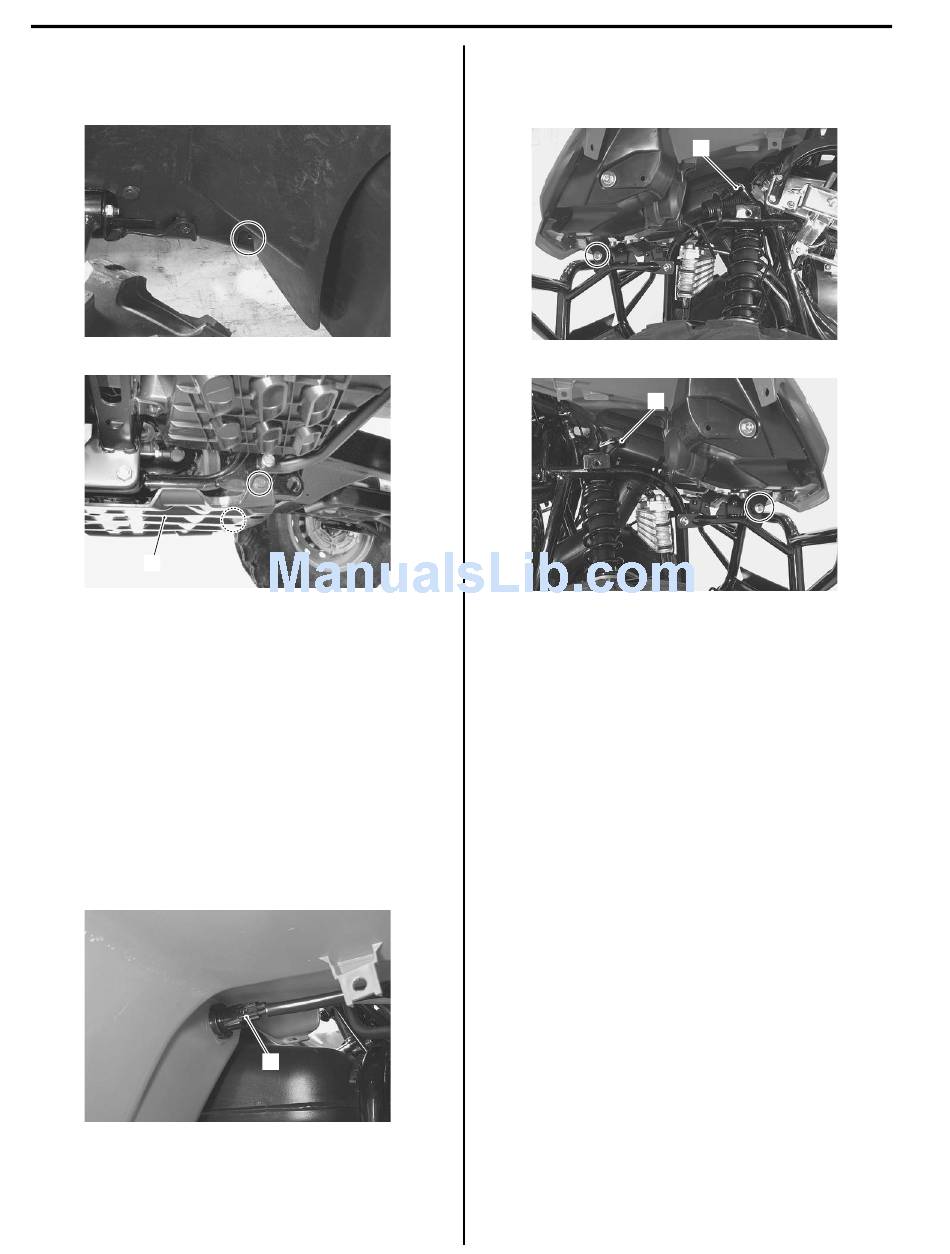

9D-5 Exterior Parts:
Engine Under Cover
Removal
Remove the engine under cover (1).
1
Installation
Installation is in the reverse order of removal.
Front Fender
Removal
1) Remove the front carrier. Refer to "Front Carrier
Removal and Installation in Section 9E (Page 9E-4)".
2) Remove the inner fenders.
3) Remove the side covers.
4) Remove the footrest mudguards.
5) Remove the fuel tank upper cover.
6) Disconnect the power source terminal coupler (1).
I827H1940015-01
I827H1940021-01
1
I827H1940017-03
7) Disconnect the headlight couplers (2).
8) Remove the front fender with the headlight
assemblies.
2
9) Remove the headlight assemblies from the front
fender. Refer to "Headlight Removal and Installation
in Section 9B (Page 9B-3)".
Installation
Installation is in the reverse order of removal. Pay
attention to the following point:
• Check the headlight beam and adjust it if necessary.
Refer to "Headlight Beam Adjustment in Section 9B
(Page 9B-4)".
2
I827H1940018-03
I827H1940019-03
