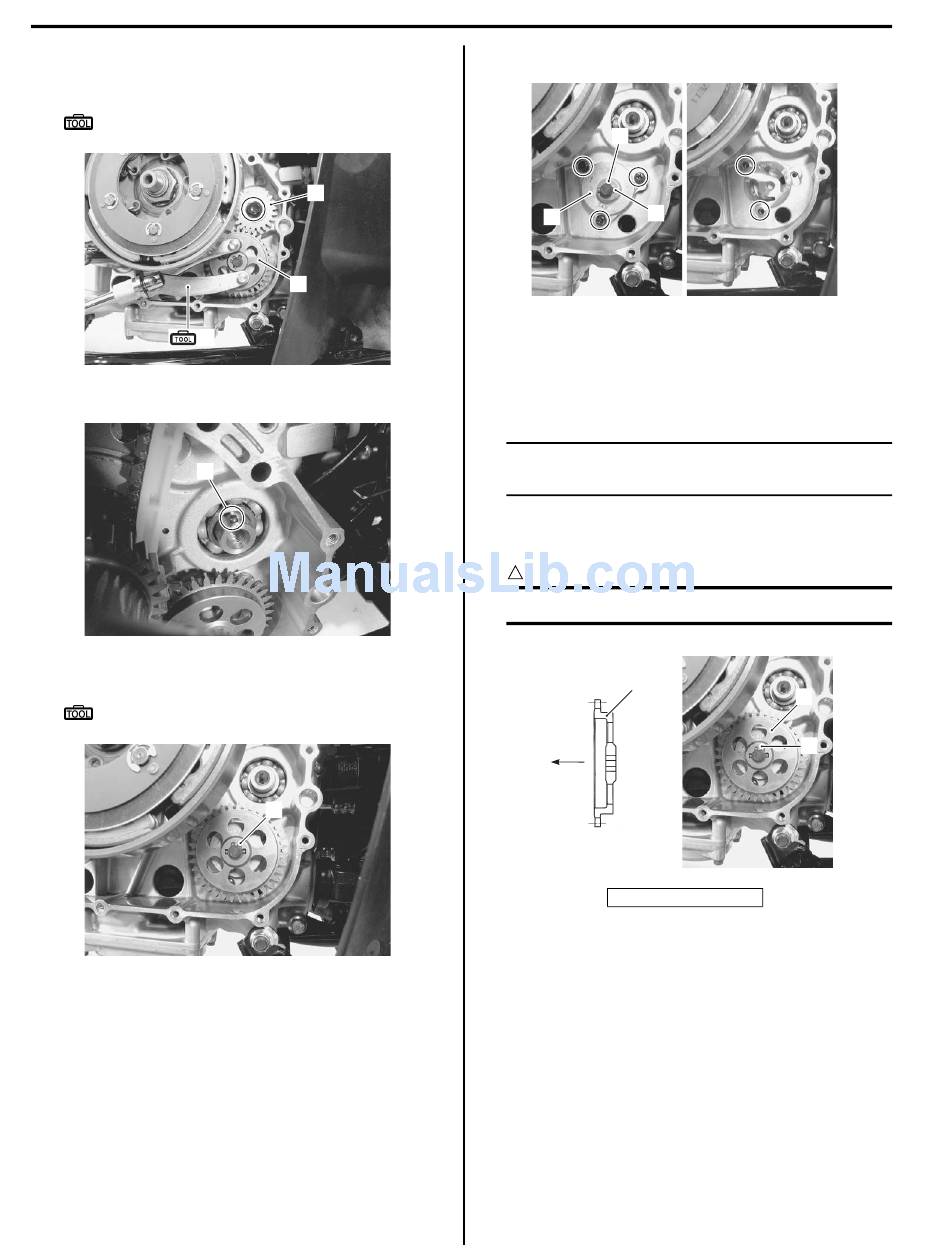

1E-7 Engine Lubrication System:
3) Remove the oil pump drive gear (1) with holding the
oil pump driven gear (2) using the special tool.
Special tool
(A): 09930–40113 (Rotor holder)
(A)
4) Remove the pin (3).
3
5) Remove the snap ring (4) and oil pump driven gear.
Special tool
: 09900–06107 (Snap ring pliers)
6) Remove the pin (5), washer (6) and oil pump (7).
1
2
I827H1150013-01
I827H1150014-01
4
I827H1150015-01
7) Remove the dowel pins.
6
5
7
Installation
Install the oil pump and oil pump drive gear in the
reverse order of removal. Pay attention to the following
points:
NOTE
Be careful not to drop the parts into the
crankcase.
• Install the oil pump driven gear (1) as shown.
• Install the new snap ring (2).
CAUTION
!
Never reuse the removed snap ring.
1
"A"
"A": Crankcase side
I827H1150016-01
1
2
I827H1150017-01
