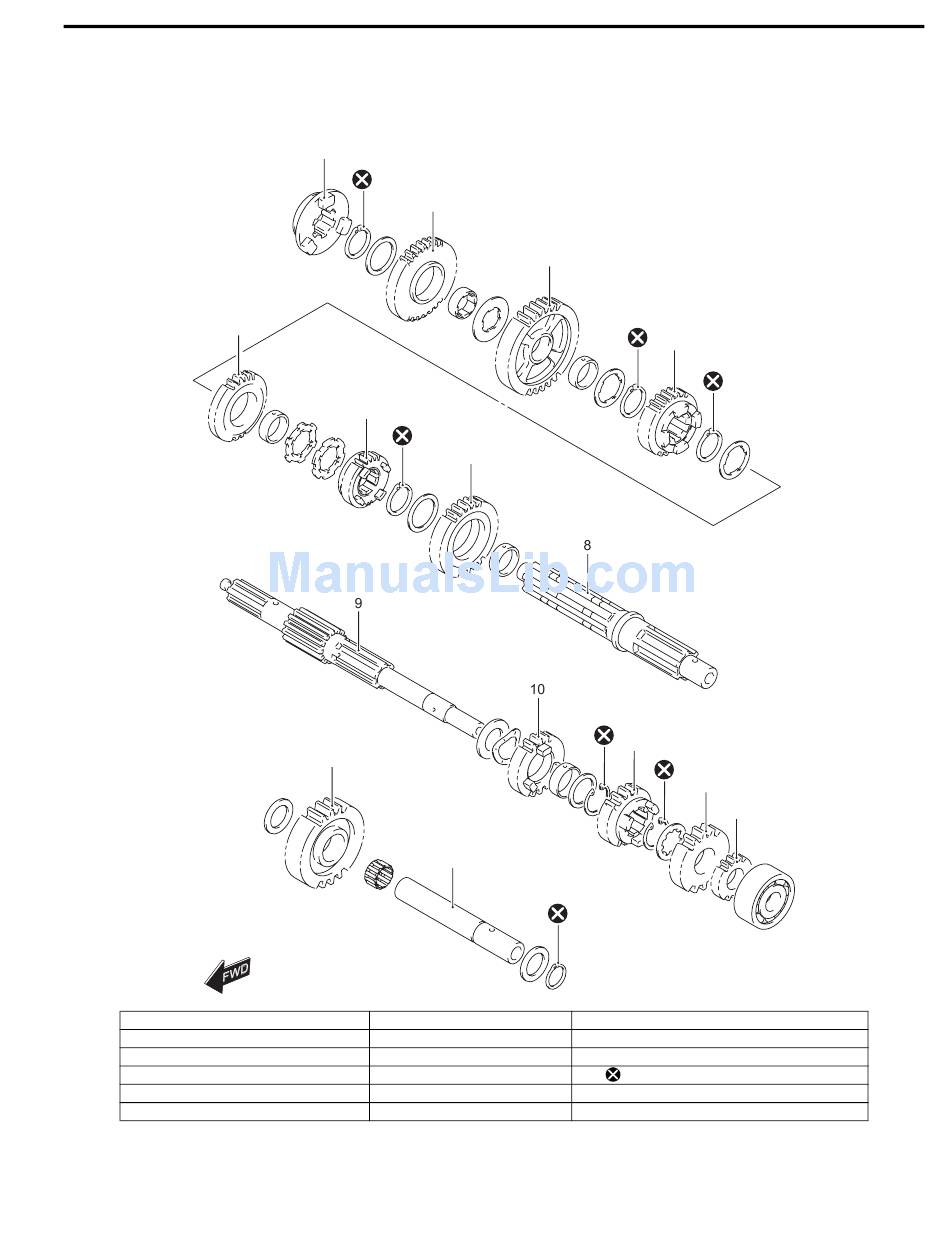

Transmission Components (LT-F400/F)

1. Reverse gear dog

2. Reverse driven gear

3. 1st driven gear

4. 4th driven gear

5. 3rd driven gear

6. 5th driven gear

Repair Instructions

7. 2nd driven gear

8. Driveshaft

9. Countershaft

10. 4th drive gear

11. 3rd drive gear

12. 5th drive gear

Manual Transmission:

13. 2nd drive gear

14. Reverse idle gear

15. Reverse idle shaft

: Do not reuse.
