Commissioning
You must commission the inverter after installation has been completed.
To do this, using Section "Commissioning with factory settings (Page 53)" you must clarify
whether the motor can be operated with the inverter factory settings or an additional
adaptation of the inverter is required. The two commissioning options are shown in the
following diagram.
①
Commissioning with factory settings (Page 53)
②
Set basic commissioning with STARTER (Page 56) or BOP-2 (Page 61)
③
Adapting the terminal strip (Page 79)

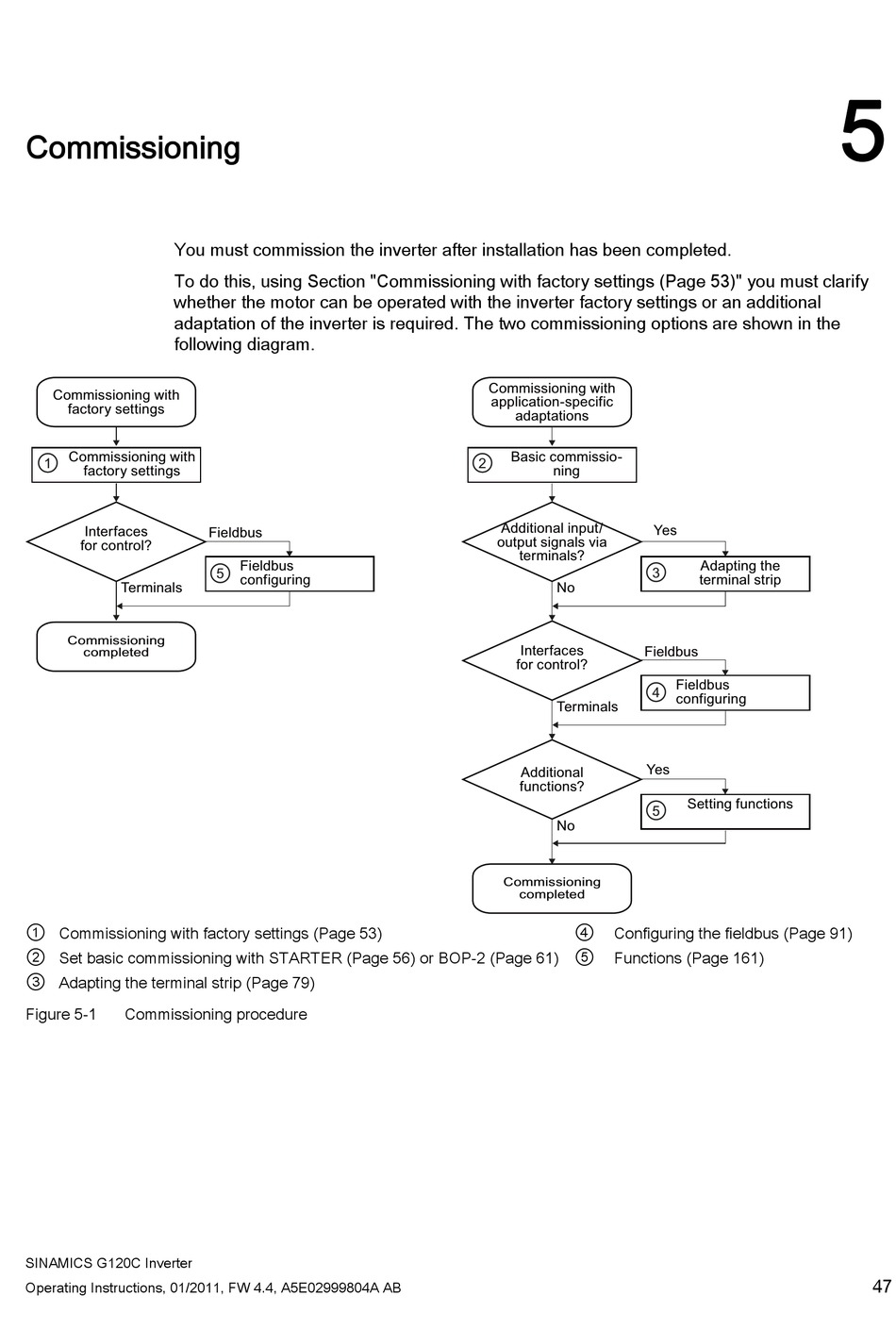

Figure 5-1
Commissioning procedure
SINAMICS G120C Inverter
Operating Instructions, 01/2011, FW 4.4, A5E02999804A AB
④
Configuring the fieldbus (Page 91)
⑤
Functions (Page 161)
