Server Front Panel Components

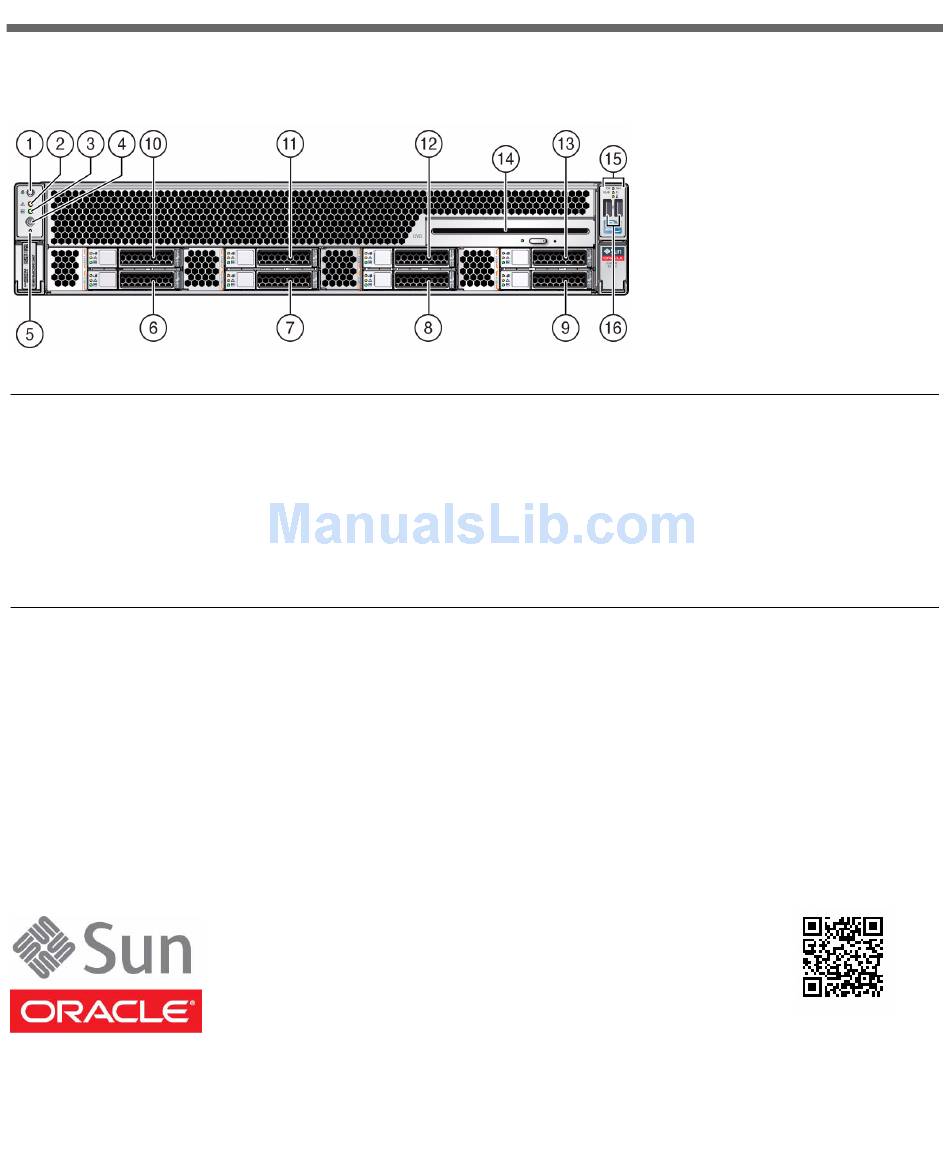

Sun Server X4-2L Front Panel Components
FIGURE 2
Figure Legend
1 Locator LED/Locator button: white
2 Service Required LED: amber
3 Power/OK LED: green
4 Power button
5 SP OK LED: green
6 Storage disk drive 0 (optional)

Access to Oracle Support

Oracle customers can access electronic support through My Oracle Support at http://support.oracle.com.
For detailed information, visit
are hearing impaired, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=trs.
The server serial number, which you will need when requesting service or technical support, is on the front
panel of the system and on the Customer Information Sheet that is shipped with the system. You can also view
the serial number using Oracle ILOM or Oracle System Assistant.
Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Oracle et/ou ses affiliés. Tous droits réservés.
Part No.: E36973-02
Mfg No.: 7060265
September 2013
7 Storage disk drive 1 (optional)
8 Storage disk drive 2 (optional)
9 Storage disk drive 3 (optional)
10 Storage disk drive 4 (optional)
11 Storage disk drive 5 (optional)
12 Storage disk drive 6 (optional)
http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info
13 Storage disk drive 7 (optional)
14 SATA DVD drive
15 Service Required LEDs (3):
Top: Fan Module (amber)
Rear: Power Supply (amber)
Overtemp Icon: System Over
Temperature Warning (amber)
16 USB 2.0 connectors (2)
or if you
