Front Panel Components

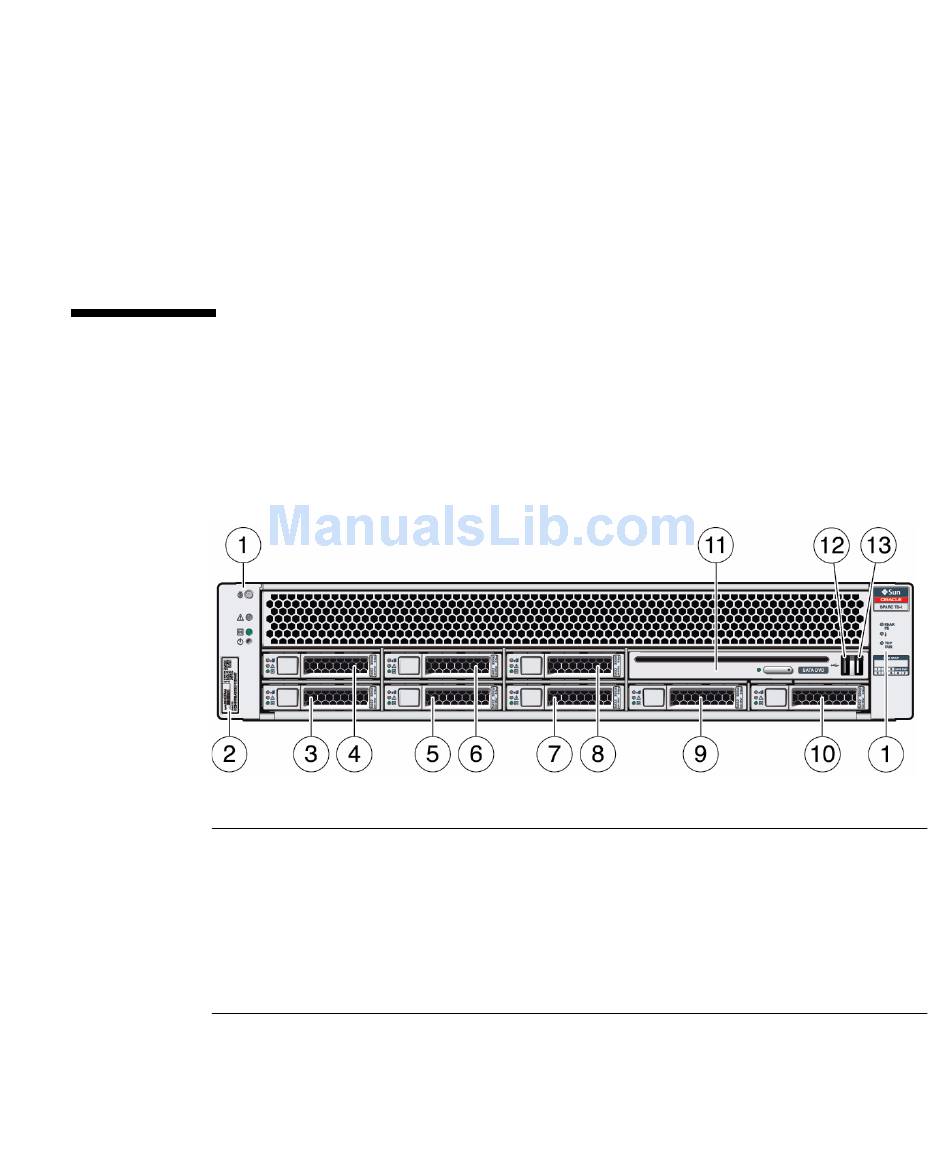

The following figure shows the components that are accessible on the server front
panel.
Components on the Server Front Panel
FIGURE:
Figure Legend
1 System controls and indicators
2 RFID tag
3 Hard drive HDD0
4 Hard drive HDD1
5 Hard drive HDD2
6 Hard drive HDD3
7 Hard drive HDD4
8 Hard drive HDD5
9 Hard drive HDD6
10 Hard drive HDD7
11 SATA DVD module
12 USB port 2
13 USB port 3
