Example 1 - Sms Configuration - Lucom lr77 v2 Configuration Manual

Example 1: SMS sending configuration.
After powering up the router, the phone with the number entered in the dialog receives an SMS
in the following form:
Router (Unit ID) has been powered up. Signal strength –xx dBm.
After connecting to mobile network, the phone with the number entered in the dialog receives
an SMS in the following form:
Router (Unit ID) has established connection to mobile network. IP address xxx.xxx.xxx.xxx
After disconnecting from the mobile network, the phone with the number entered in the dialog
receives an SMS in the following form:
Router (Unit ID) has lost connection to mobile network. IP address xxx.xxx.xxx.xxx
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

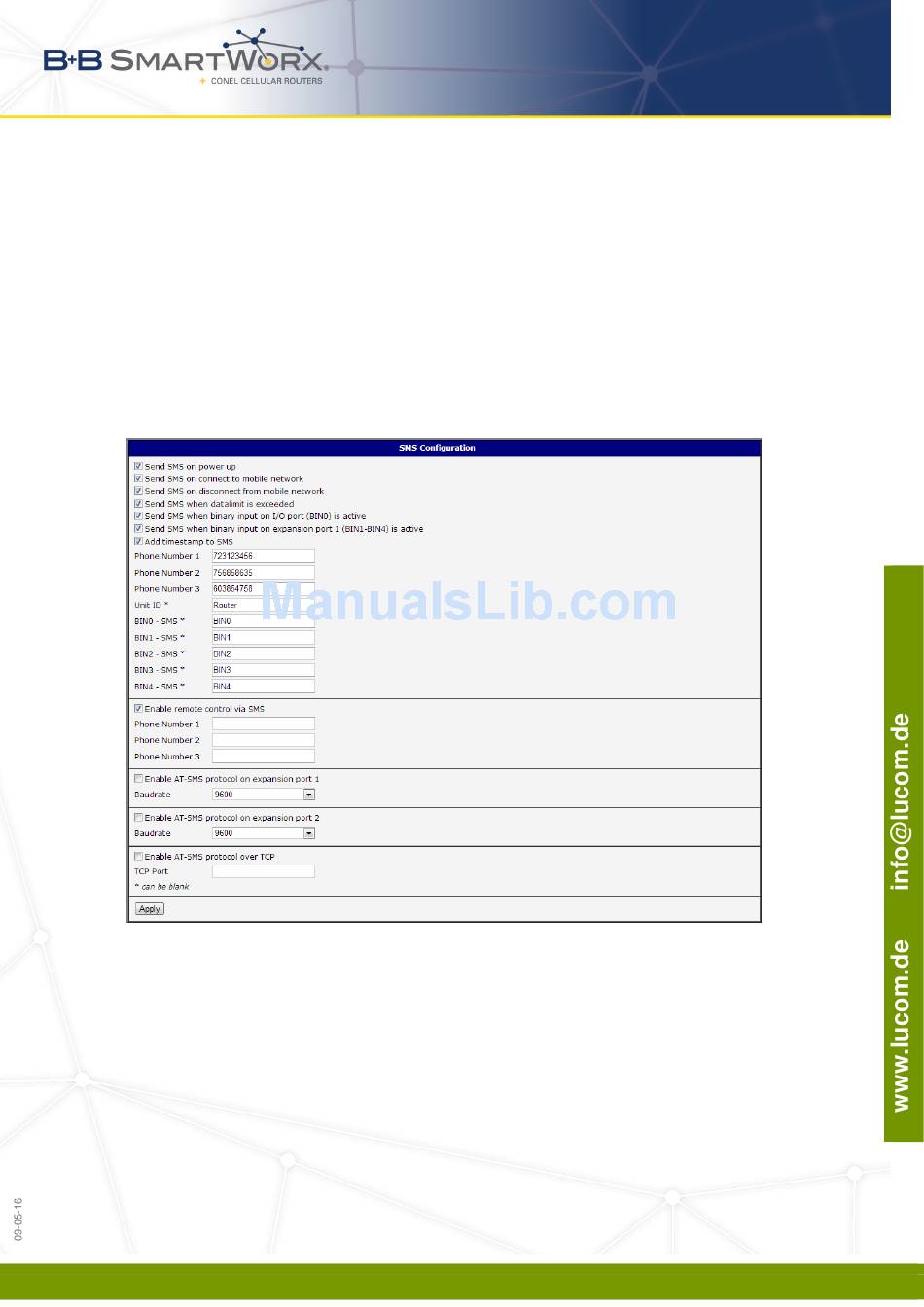

Figure 54: Example 1 – SMS Configuration
88
3. CONFIGURATION
