Example of the PPTP tunnel configuration:
Configuration of the PPTP tunnel:
Configuration
Mode
Server IP Address
Local IP Address
Remote IP Address
Remote Subnet
Remote Subnet Mask
Username
Password
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

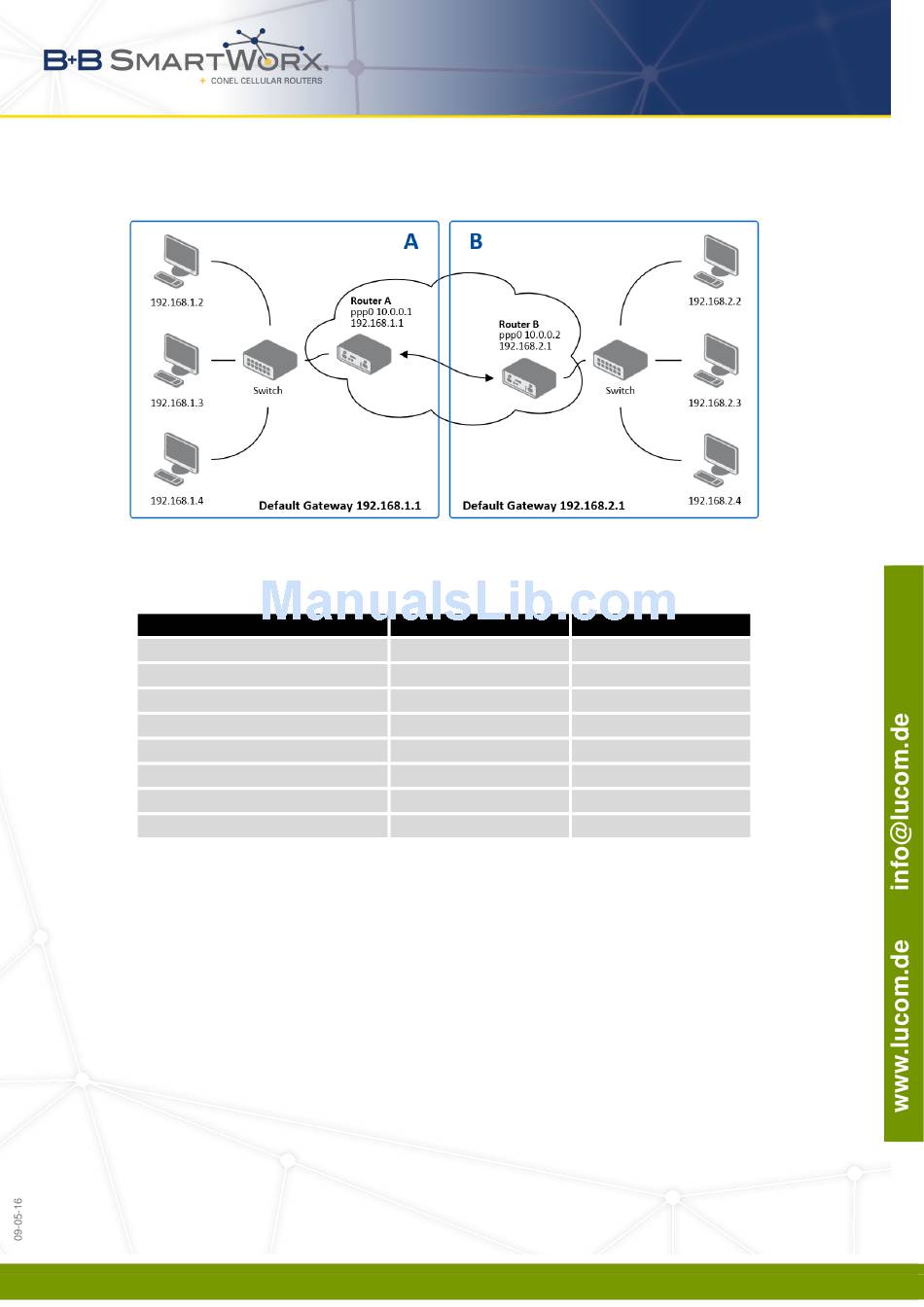

Figure 47: Topology of PPTP Tunnel Configuration Example
A
PPTP Server
—
192.168.1.1
192.168.2.1
192.168.2.0
255.255.255.0
username
password
Table 48: PPTP Tunnel Configuration Example
3. CONFIGURATION
B
PPTP Client
10.0.0.1
—
—
192.168.1.0
255.255.255.0
username
password
