3. CONFIGURATION

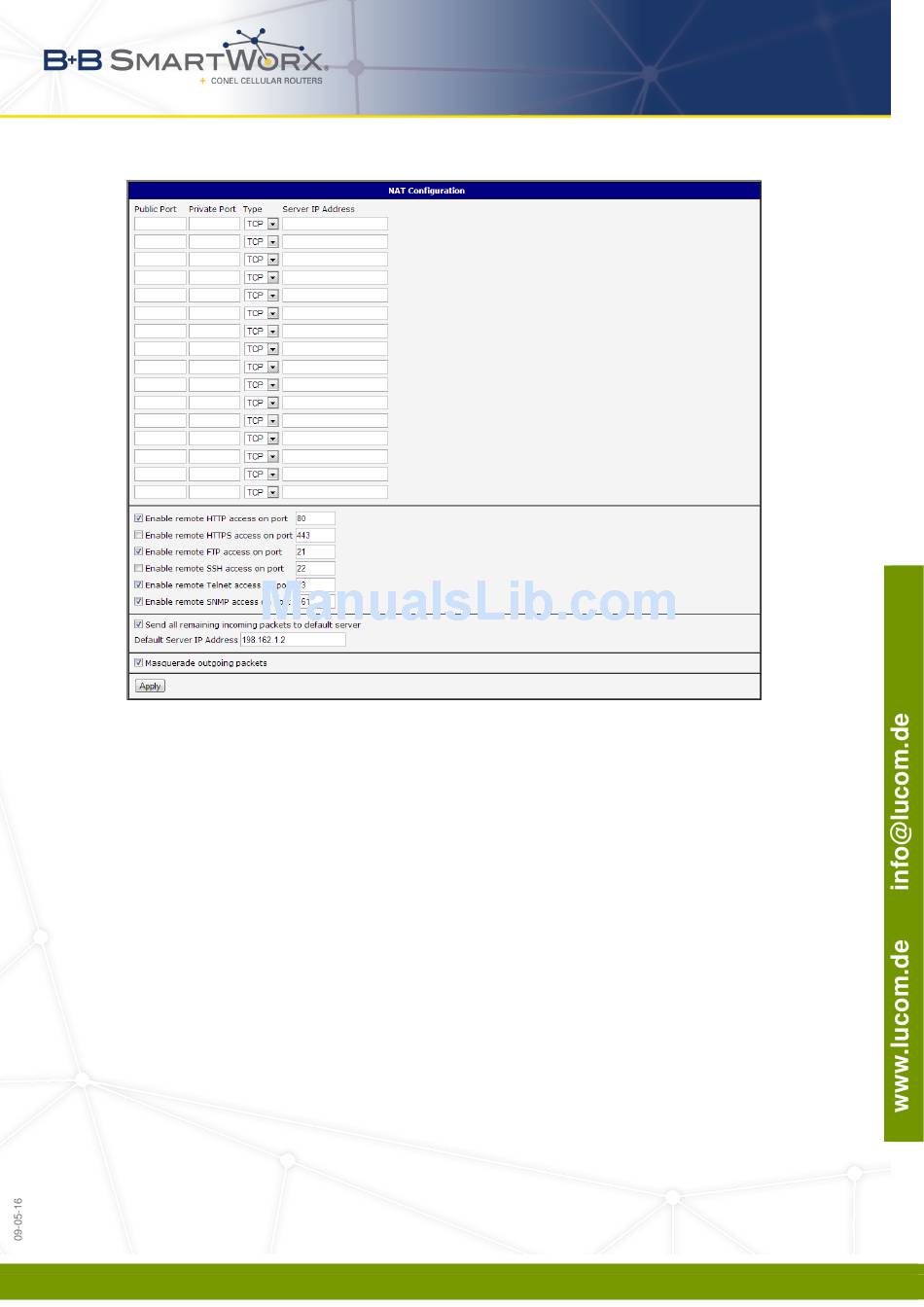

Figure 32: Example 1 – NAT Configuration
It is important to mark the Send all remaining incoming packets to default server check box
for this configuration. The IP address in this example is the address of the device behind the
router. The default gateway of the devices in the subnetwork connected to router is the same
IP address as displayed in the Default Server IP Address field. The connected device replies
if a PING is sent to the IP address of the SIM card.
52
