3.13 L2TP Tunnel Configuration
L2TP is an unencrypted protocol.
To open the L2TP Tunnel Configuration page, click L2TP in the Configuration section of the
main menu. The L2TP tunnel function allows you to create a password protected connection
between 2 LAN networks. The router activates the tunnels after you mark the Create L2TP
tunnel check box.
Item
Mode
Server IP Address
Client Start IP Address
Client End IP Address
Local IP Address
Remote IP Address
Remote Subnet
Remote Subnet Mask
Username
Password
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Description
Specifies the L2TP tunnel mode on the router side:
L2TP server – Specify an IP address range offered by
the server.
L2TP client – Specify the IP address of the server.
IP address of the server.
IP address to start with in the address range. The range is
offered by the server to the clients.
The last IP address in the address range. The range is offered
by the server to the clients.
IP address of the local side of the tunnel.
IP address of the remote side of the tunnel.
Address of the network behind the remote side of the tunnel.
The mask of the network behind the remote side of the tunnel.
Username for the L2TP tunnel login.
Password for the L2TP tunnel login.
Table 45: L2TP Tunnel Configuration

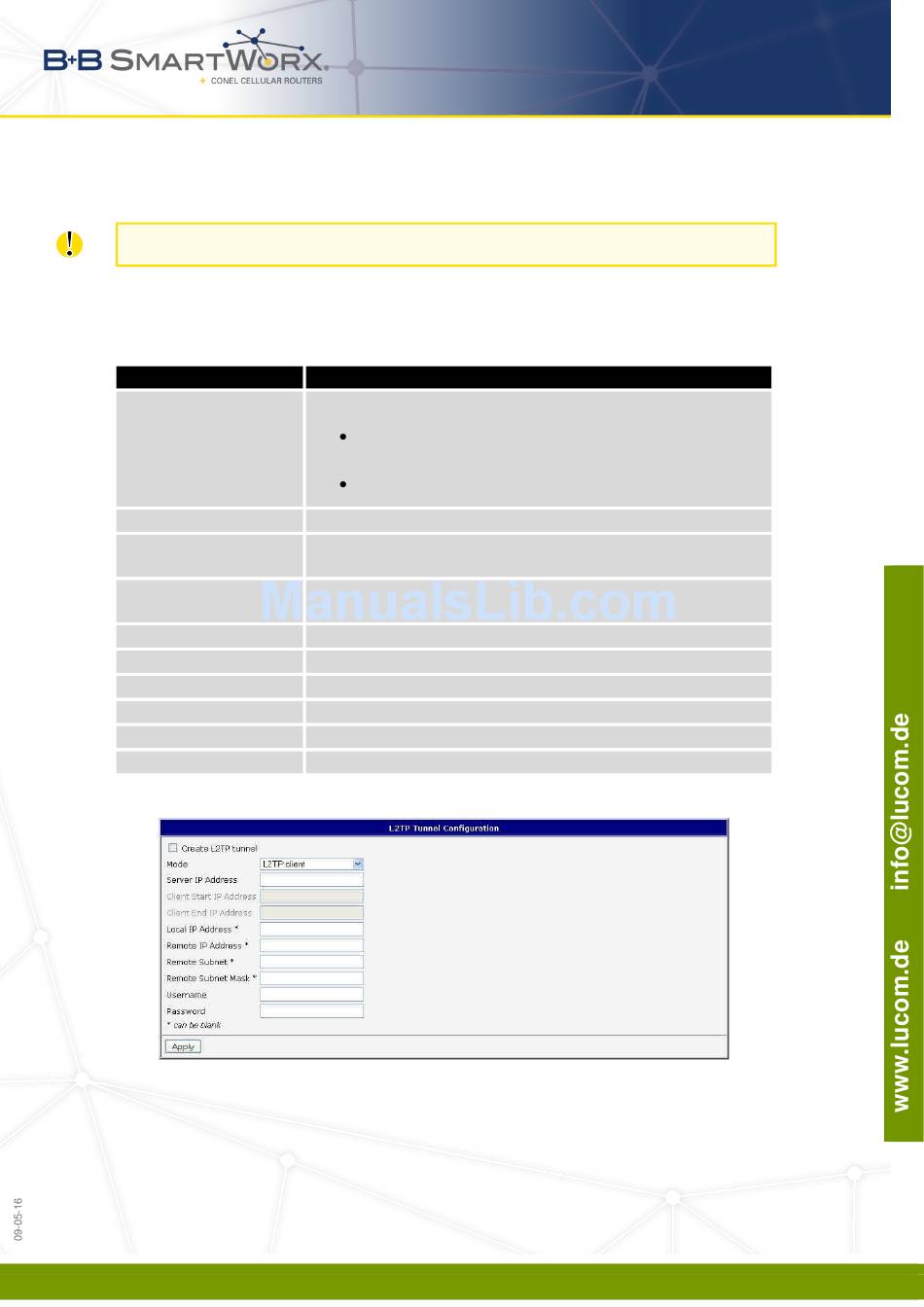

Figure 44: L2TP Tunnel Configuration
