5.7 Send SMS

The XR5i v2 router does not support the Send SMS option.
You can send an SMS message from the router to test the cellular network. Use the Send
SMS dialog in the Administration section of the main menu to send SMS messages. Enter the
Phone number and text of your message in the Message field, then click the Send button. The
router limits the maximum length of an SMS to 160 characters. (To send longer messages,
install the pduSMS user module).
It is also possible to send an SMS message using CGI script. For details of this method,
see the application note Commands and Scripts [1].
5.8 Backup Configuration
You can save the configuration of the router using the Backup Configuration function. If
you click on Backup Configuration in the Administration section of the main menu, then the
router allows you to select a directory in which the router saves the configuration file.
5.9 Restore Configuration
You can restore a configuration of the router using the Restore Configuration form. To
navigate to the directory containing the configuration file (.cfg) you wish to load on the router,
use the Browse button.
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

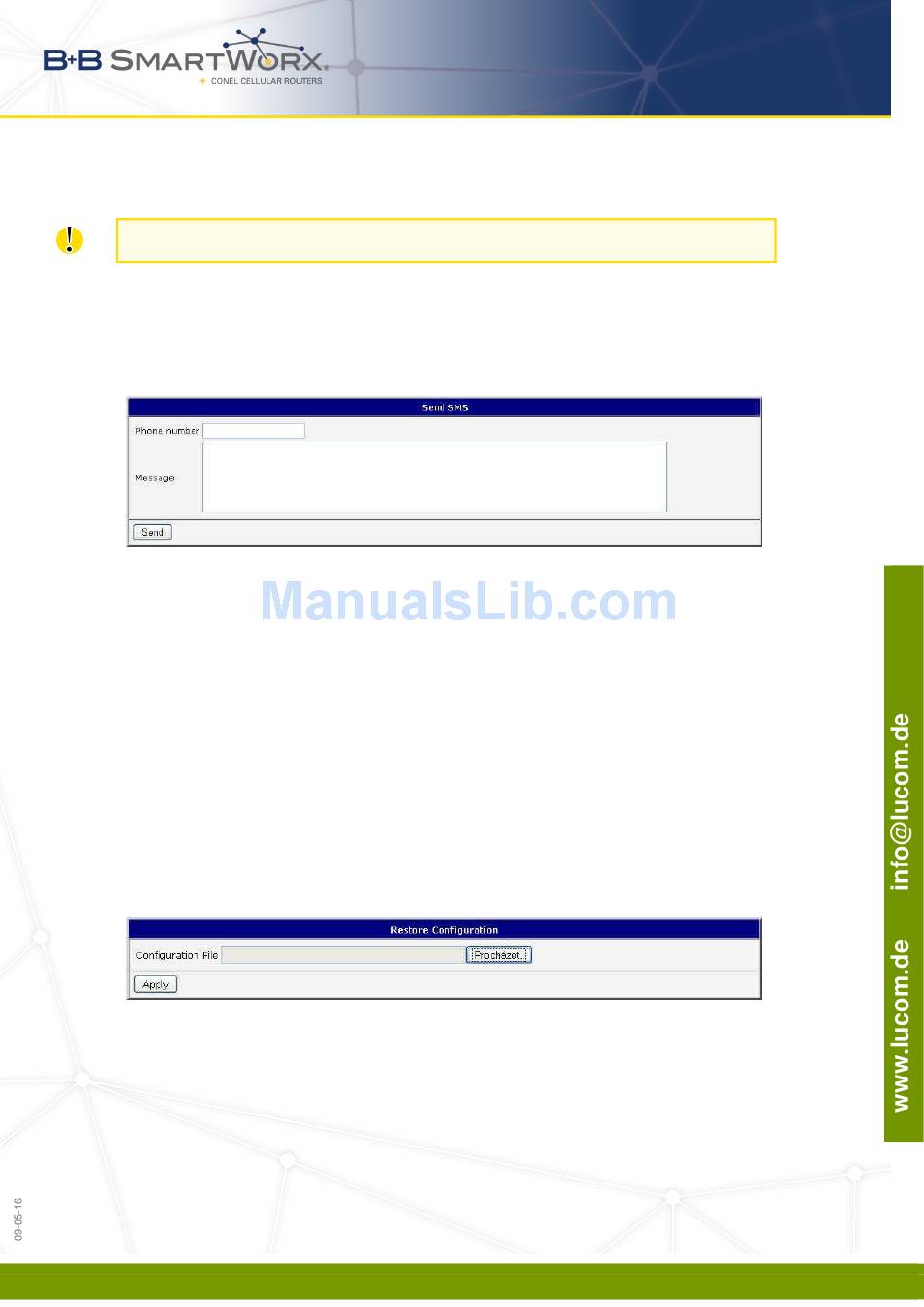

Figure 78: Send SMS
Figure 79: Restore Configuration
110
5. ADMINISTRATION
