Example of the GRE Tunnel configuration:
GRE tunnel configuration:
Configuration
Remote IP Address
Remote Subnet
Remote Subnet Mask
Examples of different options for configuration of GRE tunnel can be found in the application
note GRE Tunnel [7].
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

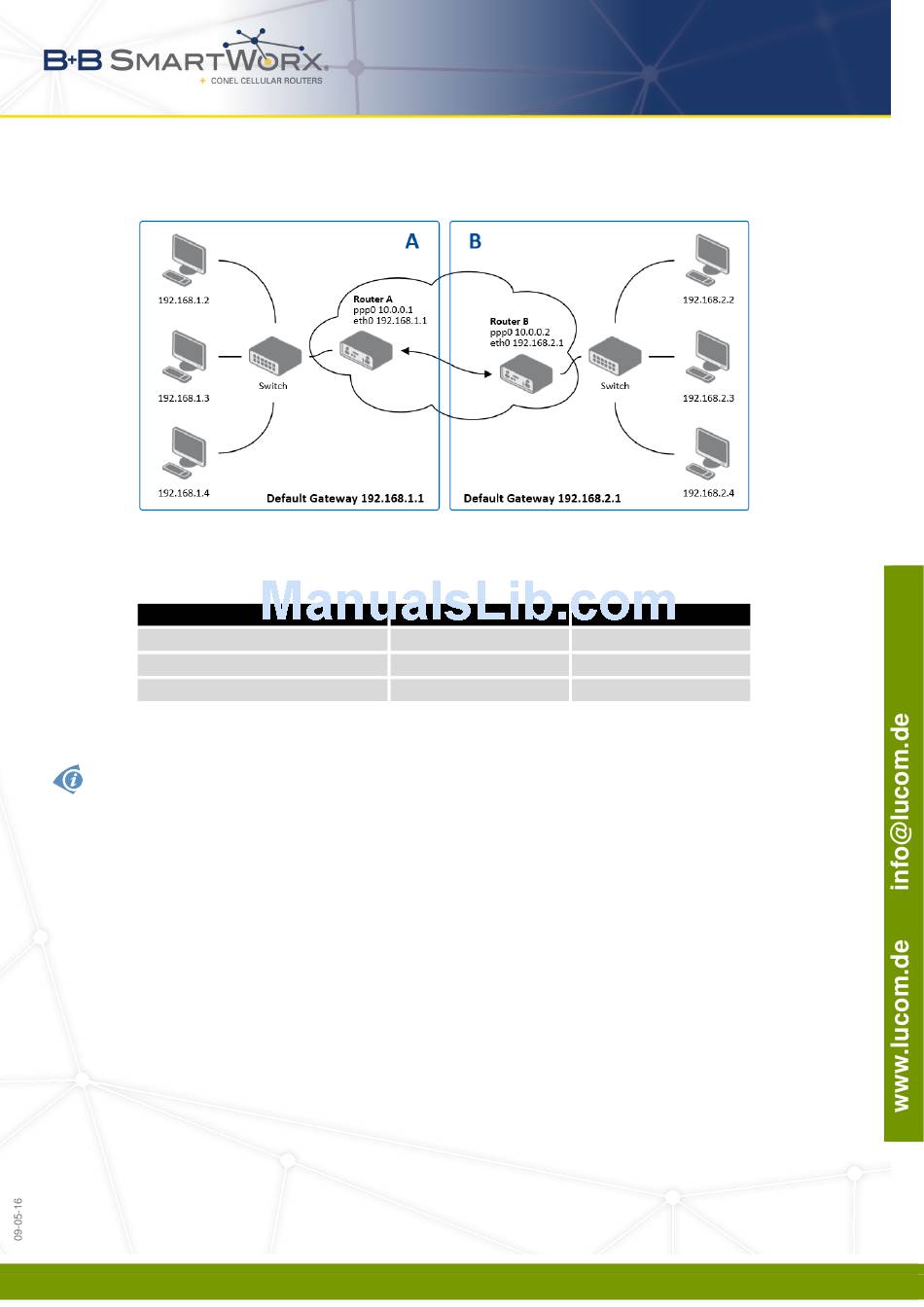

Figure 43: Topology of GRE Tunnel Configuration Example
A
10.0.0.2
192.168.2.0
255.255.255.0
Table 44: GRE Tunnel Configuration Example
3. CONFIGURATION
B
10.0.0.1
192.168.1.0
255.255.255.0
