Backup Routes - Lucom lr77 v2 Configuration Manual

3.7 Backup Routes

By using the configuration form on the Backup Routes page, you can back up the pri-
mary connection with alternative connections to the Internet/mobile network. Each backup
connection can be assigned a priority. Switching between connections is done based upon
set priorities and the state of the connections (for Primary LAN and Secondary LAN).
If the Enable backup routes switching option is checked, the default route is selected ac-
cording to the settings in the chart below. (Options include Enable backup routes switching for
Mobile WAN, Enable backup routes switching for PPPoE, Enable backup routes switching for
WiFi STA, Enable backup routes switching for Primary LAN or Enable backup routes switching
for Secondary LAN.)
Network interfaces belonging to individual backup routes should display a flag that says
they are RUNNING. This check fixes, for example, the disconnection of an Ethernet cable.
Attention! If you want to use a mobile WAN connection as a backup route, then mark
the Check Connection check box, and on the Mobile WAN page, select the enable + bind
option, see chapter 3.3.1.
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

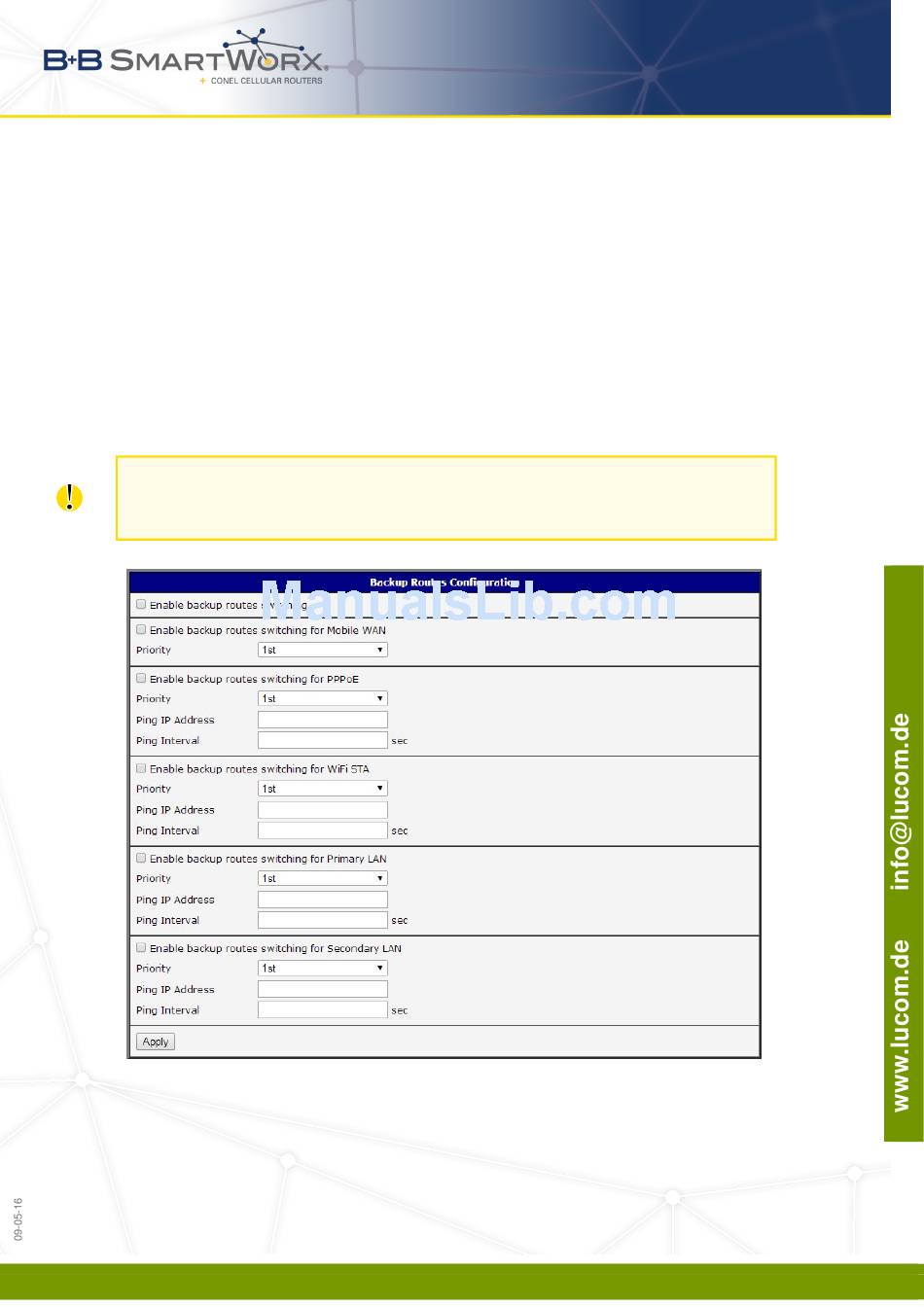

Figure 27: Backup Routes
44
3. CONFIGURATION
