Item
Enable static
DHCP leases
MAC Address
IP Address
Do not to overlap ranges of static allocated IP addresses with addresses allocated by the
dynamic DHCP server. IP address conflicts and incorrect network function can occur if
you overlap the ranges.
Example 1: Configure the network interface to connect to a dynamic DHCP server:
The range of dynamic allocated addresses is from 192.168.1.2 to 192.168.1.4.
The address is allocated 600 second (10 minutes).

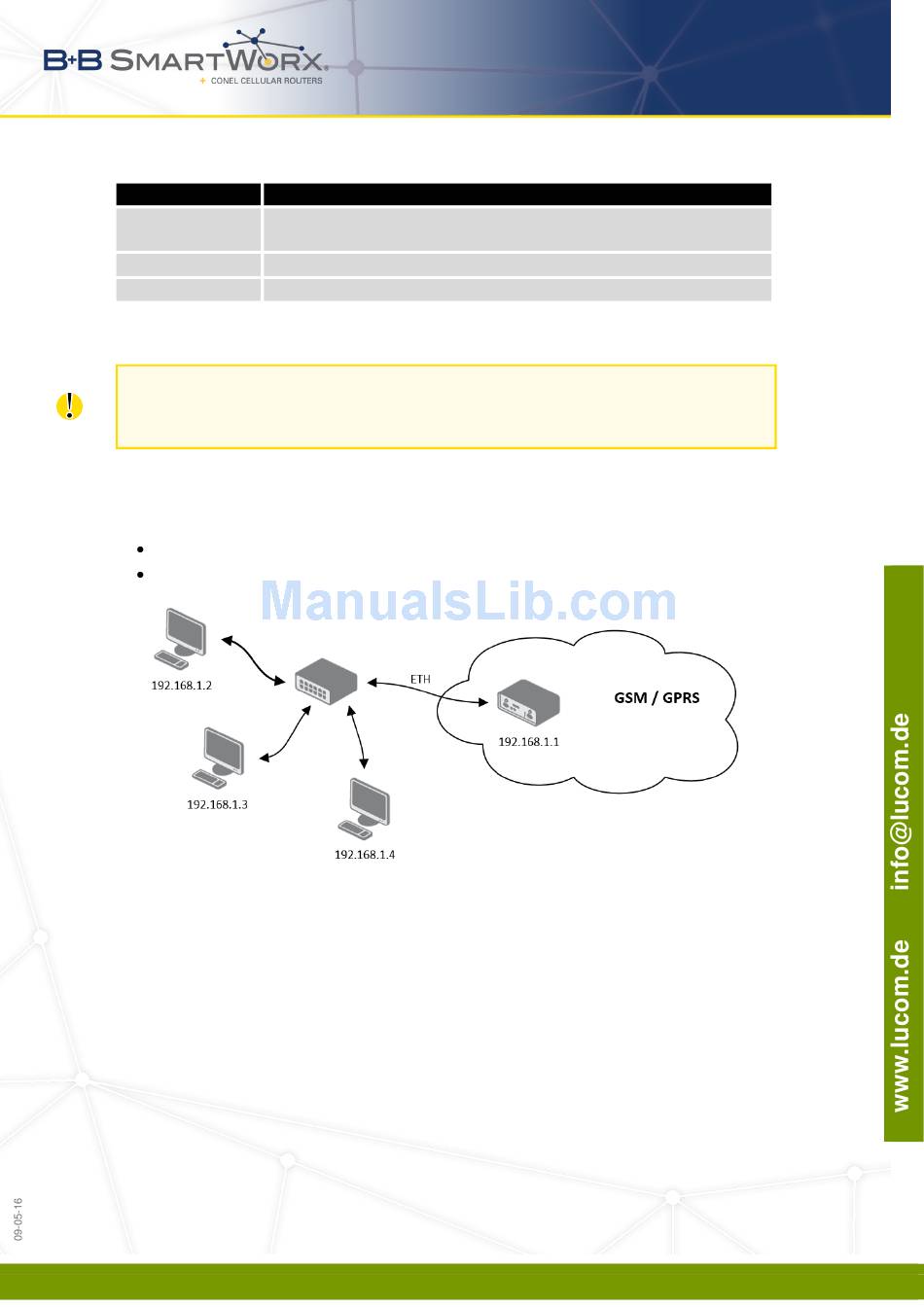

Figure 11: Example 1 – Network Topology for Dynamic DHCP Server
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Description
Select this option to enable a static DHCP server.
MAC address of a DHCP client.
Assigned IP address.
Table 16: Configuration of Static DHCP Server
