3.11 IPsec Tunnel Configuration
To open the IPsec Tunnel Configuration page, click IPsec in the Configuration section of
the main menu. The IPsec tunnel function allows you to create a secured connection between
two separate LAN networks. The router allows you to create up to four IPsec tunnels.
To encrypt data between the local and remote subnets, specify the appropriate values in
the subnet fields on both routers. To encrypt the data stream between the routers only,
leave the local and remote subnets fields blank.
If you specify the protocol and port information in the Local Protocol/Port field, then the
router encapsulates only the packets matching the settings.
Item
Create
Description
Edit
Item
Description
Remote IP Address
Remote ID
Remote Subnet
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Description
Activates/deactivates the individual IPsec tunnels.
Displays the name of the tunnel specified in the configuration of
the tunnel.
Opens the IPsec tunnel configuration form.
Table 39: IPsec Tunnels Overview

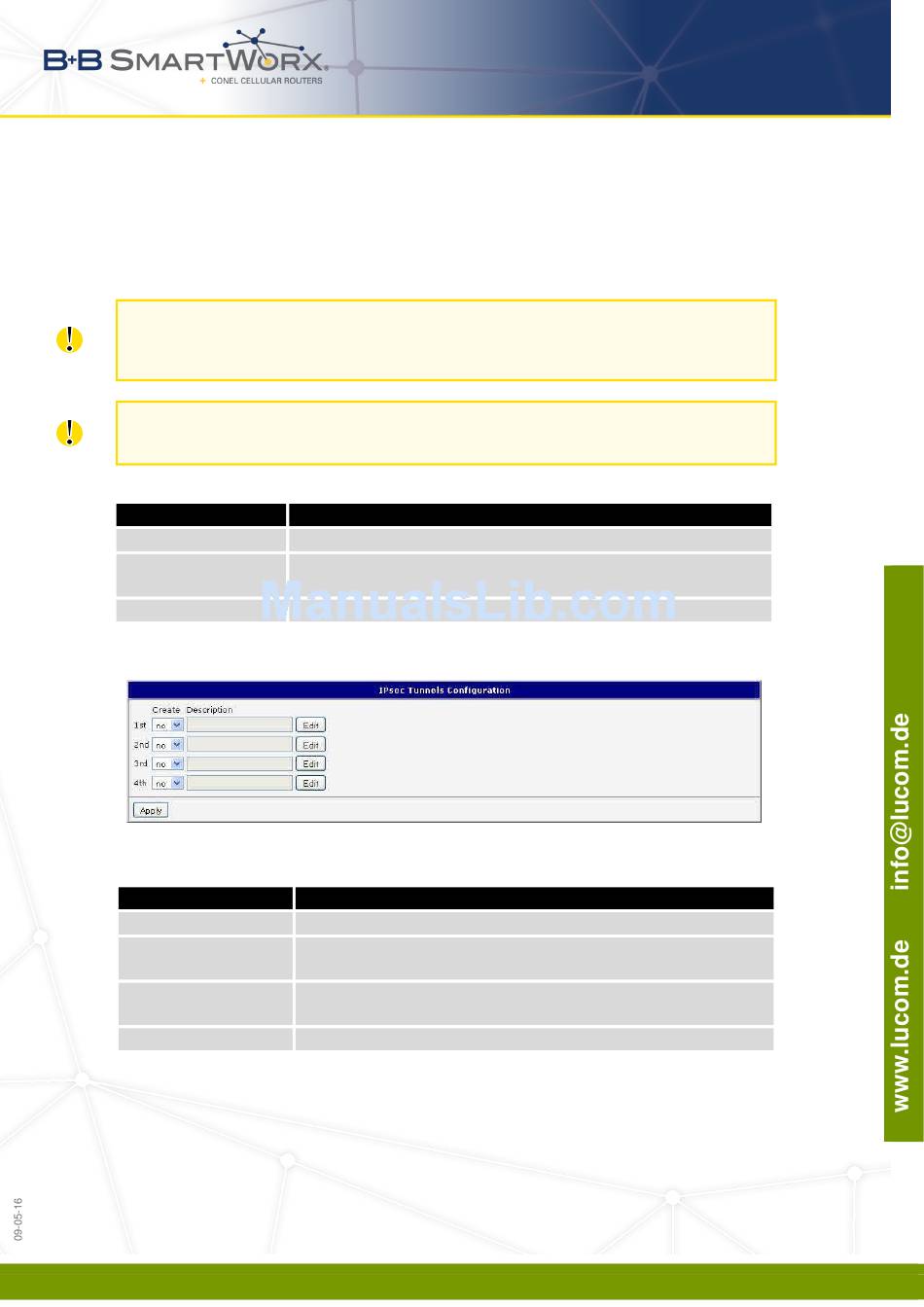

Figure 38: IPsec Tunnels List
Description
Name or description of the tunnel.
IP address of remote side of the tunnel. It is also possible to enter
the domain name.
Identifier (ID) of remote side of the tunnel. It consists of two parts:
a hostname and a domain-name.
IP address of a network behind remote side of the tunnel.
60
3. CONFIGURATION
Continued on next page
