Example of the OpenVPN tunnel configuration:
OpenVPN tunnel configuration:
Configuration
Protocol
UDP Port
Remote IP Address
Remote Subnet
Remote Subnet Mask
Local Interface IP Address
Remote Interface IP Address
Compression
Authenticate mode
Examples of different options for configuration and authentication of OpenVPN tunnel can be
found in the application note OpenVPN Tunnel [5].
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

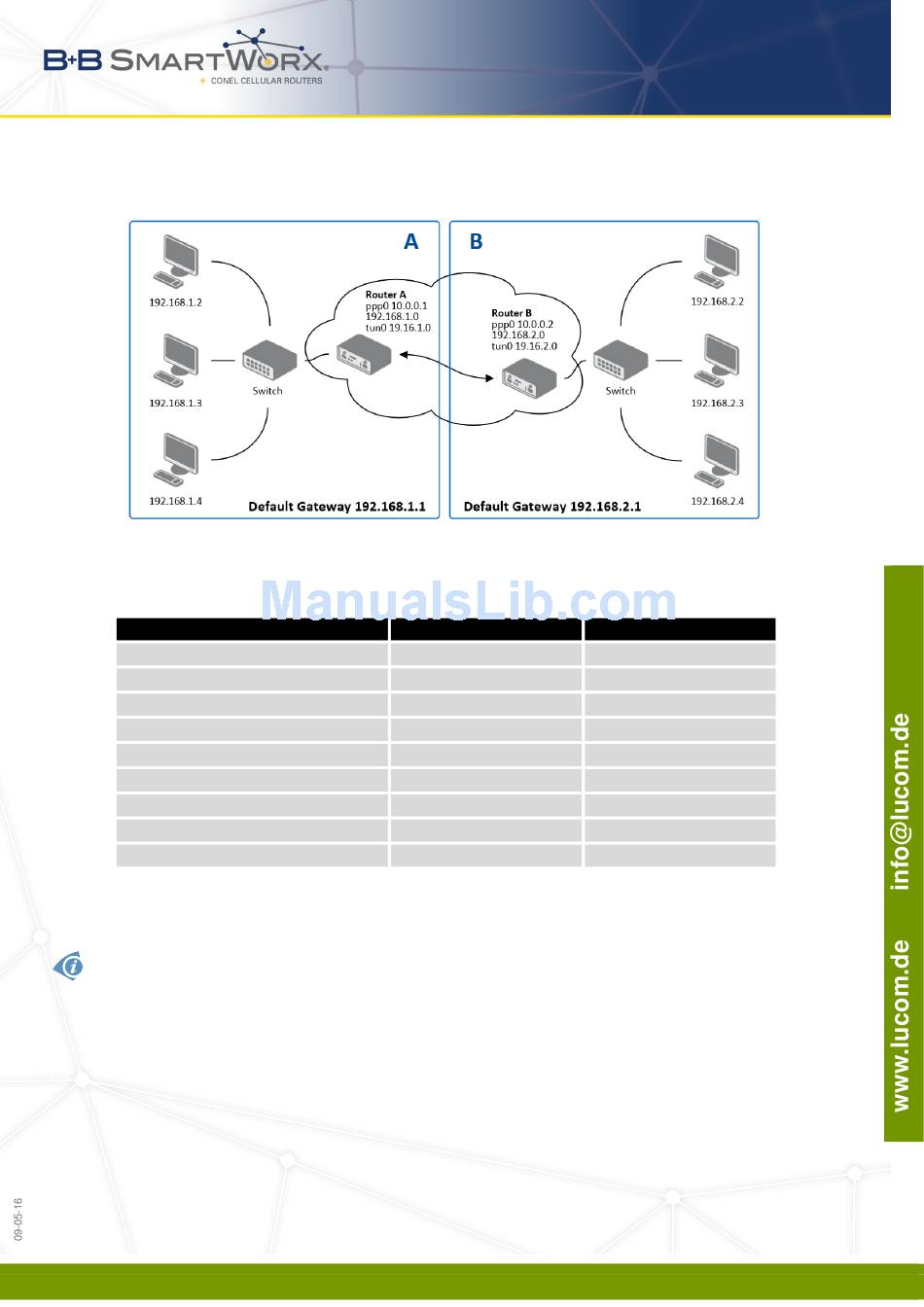

Figure 37: Topology of OpenVPN Configuration Example
A
UDP
1194
10.0.0.2
192.168.2.0
255.255.255.0
19.16.1.0
19.16.2.0
LZO
none
Table 38: OpenVPN Configuration Example
3. CONFIGURATION
B
UDP
1194
10.0.0.1
192.168.1.0
255.255.255.0
19.16.2.0
19.18.1.0
LZO
none
