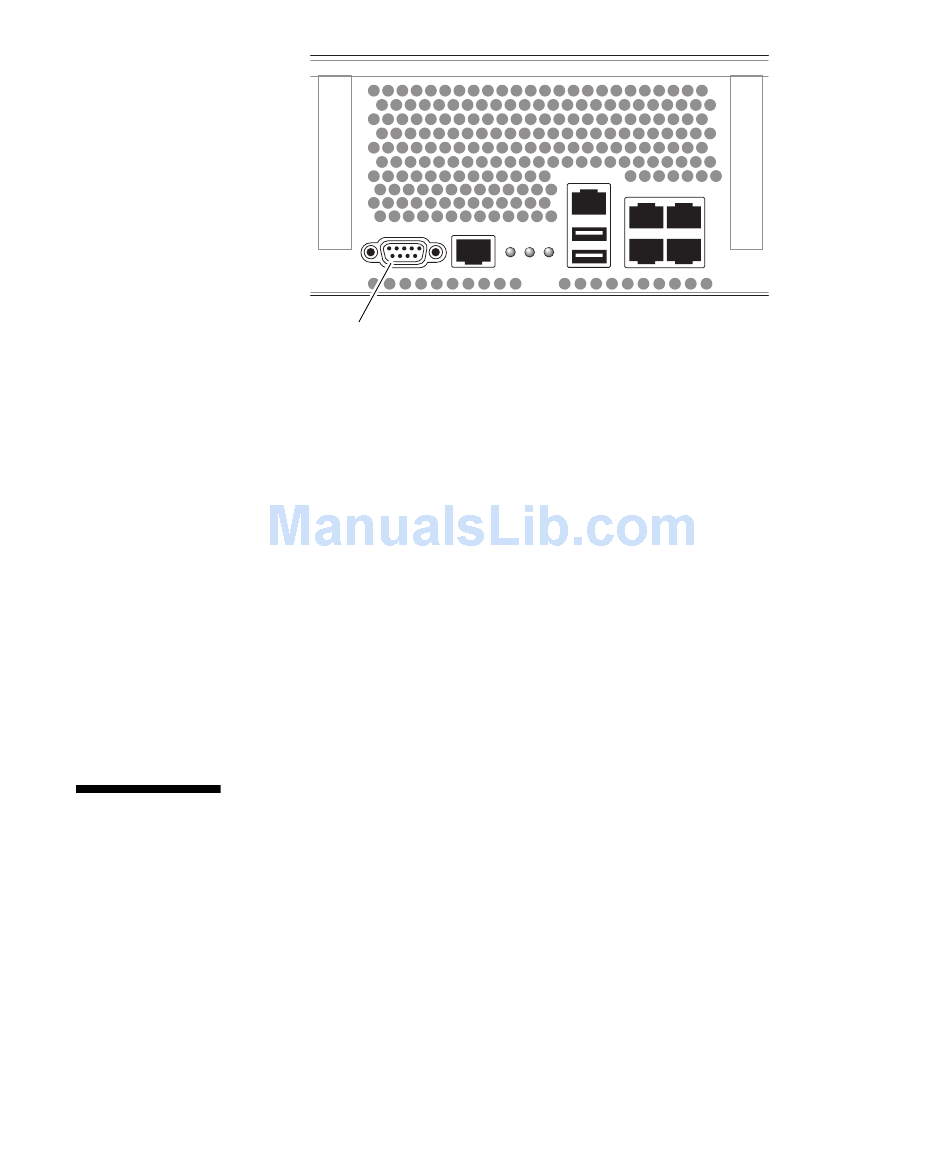

Serial port (TTYA)
Serial Port
FIGURE 2-20
Use a null modem cable or an adapter to perform the crossovers given for each
connector.
If connecting to a serial port on a personal computer, you can use Sun adapter
■
part number 530-3100-01.
If connecting to a Sun workstation or server, you can use Sun adapter part
■
number 530-2889-03.

USB Ports

Four Universal Serial Bus (USB) ports are provided on the Sun Fire T2000 server.
USB ports 0 and 1 are located on the rear of the chassis (
on the front of the chassis (

Managing Cables With the CMA

▼

To Open and Close a Cable Clip

1. To open a cable clip, press the front of the cable clip and lift the hinged top.
2. Route cables through the clip, then press the top of the cable clip to lock.
).
FIGURE 2-16
Chapter 2 Installing the Sun Fire T2000 Server
). Ports 2 and 3
FIGURE 2-15
31
