5. Determine which screws you will use to mount the slide rails.
If your rack has threaded mounting holes in the rack posts, determine whether the
threads are metric or standard. Select the appropriate screws from the package
included in the mounting kit.
If your rack does not have threaded mounting holes, the mounting screws are
secured with a caged nut.
6. Attach a slide rail to the right front rack post.
a. Loosely attach the front of a slide rail to the right front rack post (
using two screws.
Note – Do not tighten the screws yet.
FIGURE 2-5
b. Adjust the length of the slide rail by sliding the rear mounting flange to reach
the outside edge of the rear rack post.
16 Sun Fire T2000 Server Installation Guide • April 2006

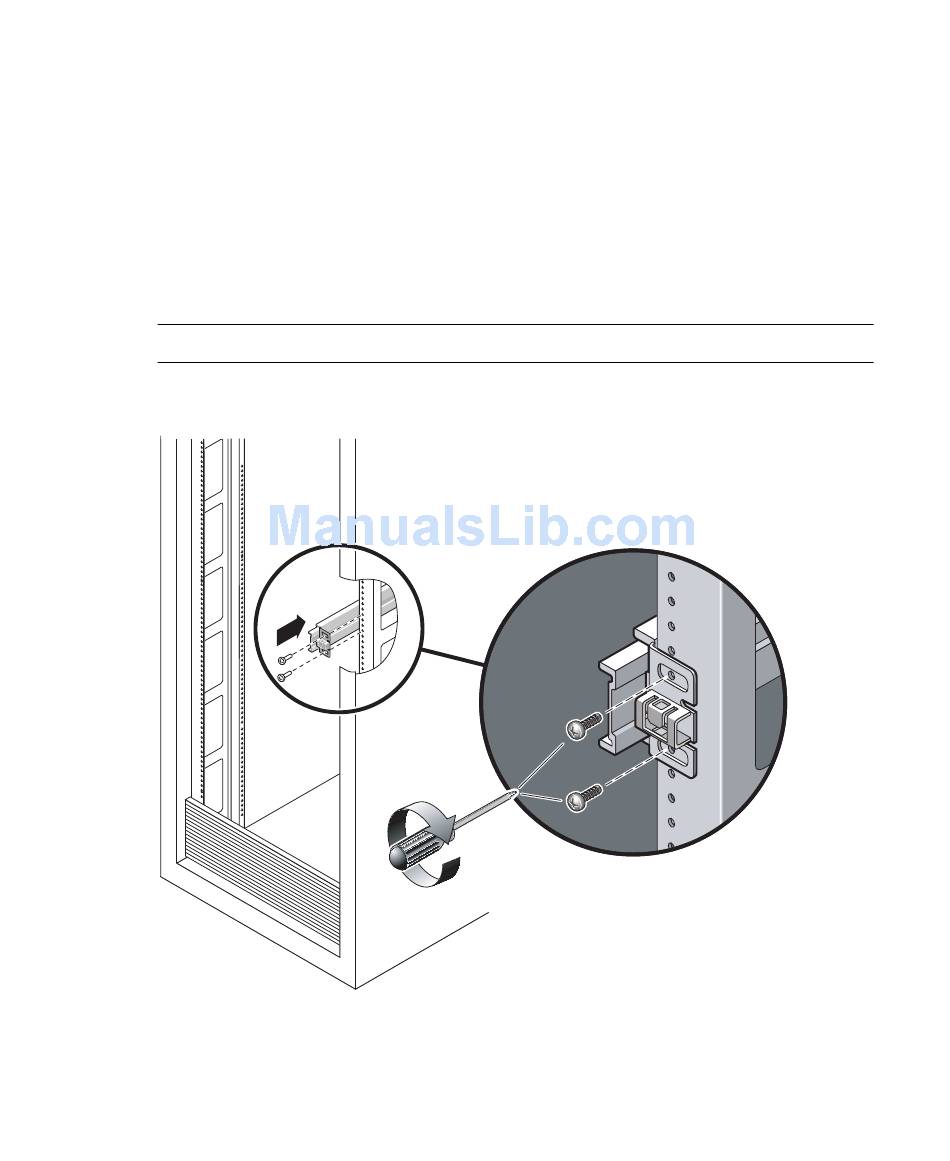

Mounting a Slide Rail
)
FIGURE 2-5
