Ac Power Cables; Ttya Serial Port; Figure 2-19 System Controller Network Connection - Sun Microsystems Sun Fire T200 Installation Manual

NET MGT

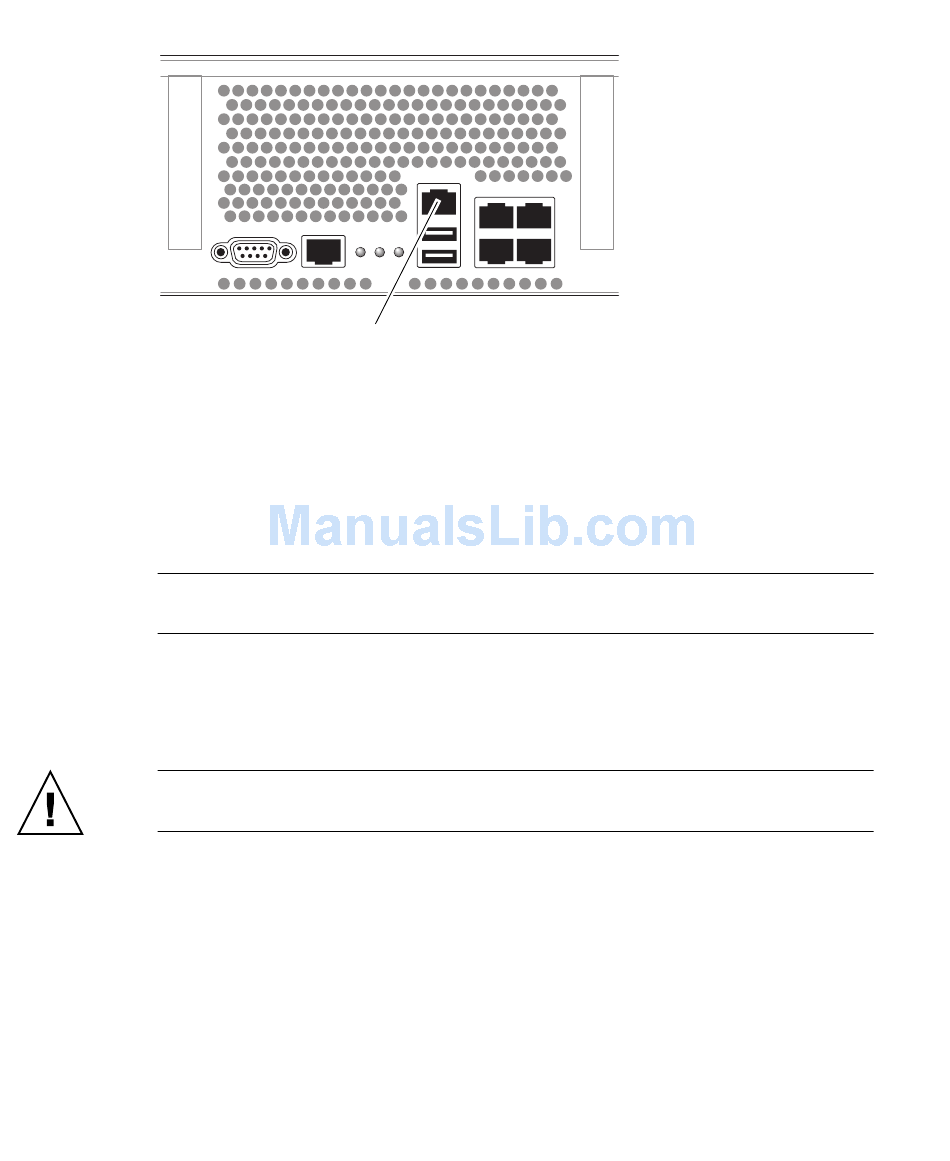

System Controller Network Connection
FIGURE 2-19
●
Connect a Category 5 cable from your network switch or hub to the Network
Management Port.

AC Power Cables

Note – Finish the hardware procedures in this chapter, but do not attach the AC
power cables yet.
Powering on the system for the first time requires special preparation and
procedures. For example, if you have not prepared a display before connecting the
AC power cables, system messages may be lost. You will be instructed to connect the
server to AC power in "Powering On the System for the First Time" on page 35.
Caution – The server goes into standby mode and the system controller initializes
as soon as the AC power cables are connected to the power source.

TTYA Serial Port

The TTYA serial port connector uses a DB-9 connector (item 1 in ). Use
FIGURE 2-20
this port for general purpose serial data transfers. This port is not connected to the
SC serial management port.
30 Sun Fire T2000 Server Installation Guide • April 2006
