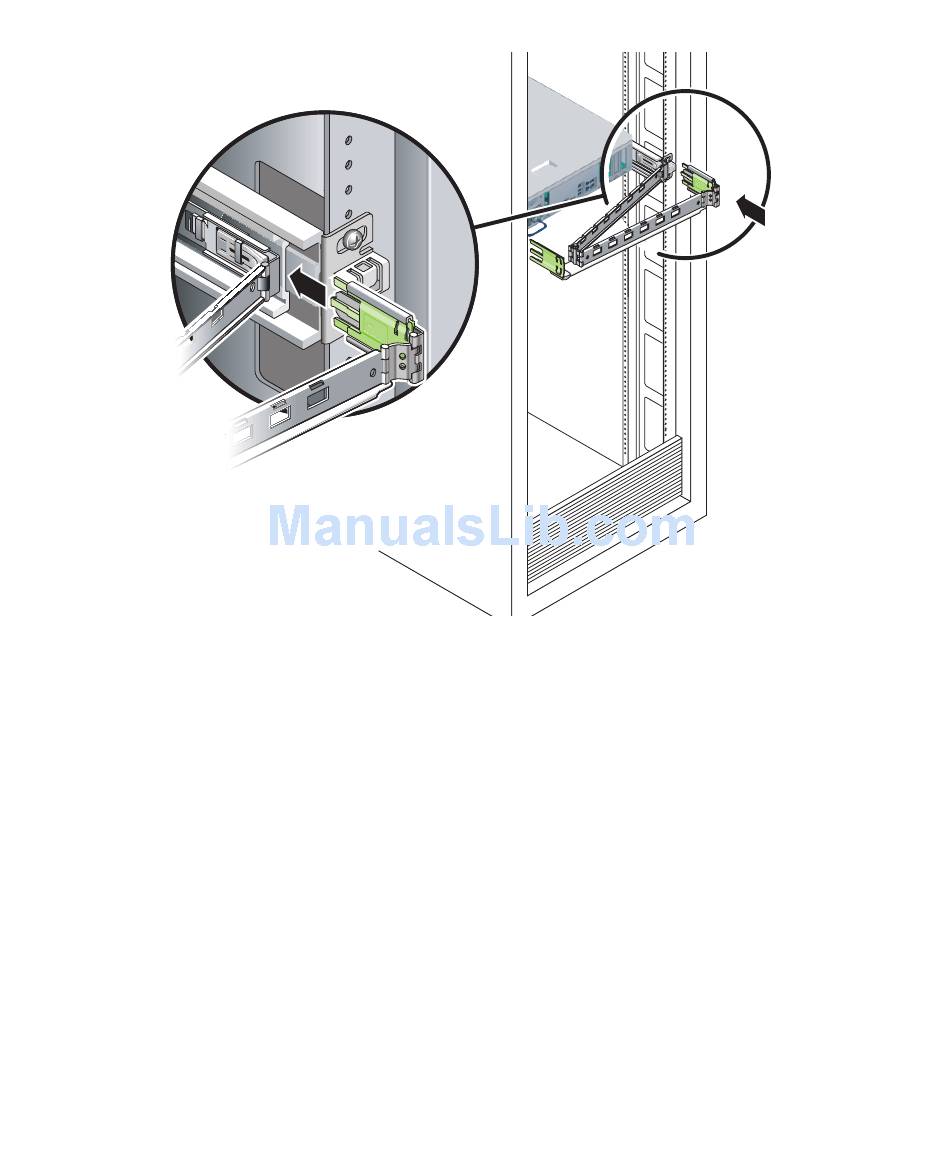

Attaching the Outer CMA Connector
FIGURE 2-10
4. Insert the hinged plastic connector at the left side of the CMA fully into the CMA
rail extension (
).
FIGURE 2-11
The plastic tab on the CMA rail extension locks the hinged plastic connector in
place.
22
Sun Fire T2000 Server Installation Guide • April 2006
