Connecting Cables to the Server

"To Connect the Ethernet Network Cables" on page 28
■
"To Connect the SC Network Management Port" on page 29
■
"To Connect the SC Serial Management Port" on page 29
■
"AC Power Cables" on page 30
■
In addition, the Sun Fire T2000 server has serial and USB ports available for
connections to optional devices.
"TTYA Serial Port" on page 30
■
"USB Ports" on page 31
■

Connector Locations

Use

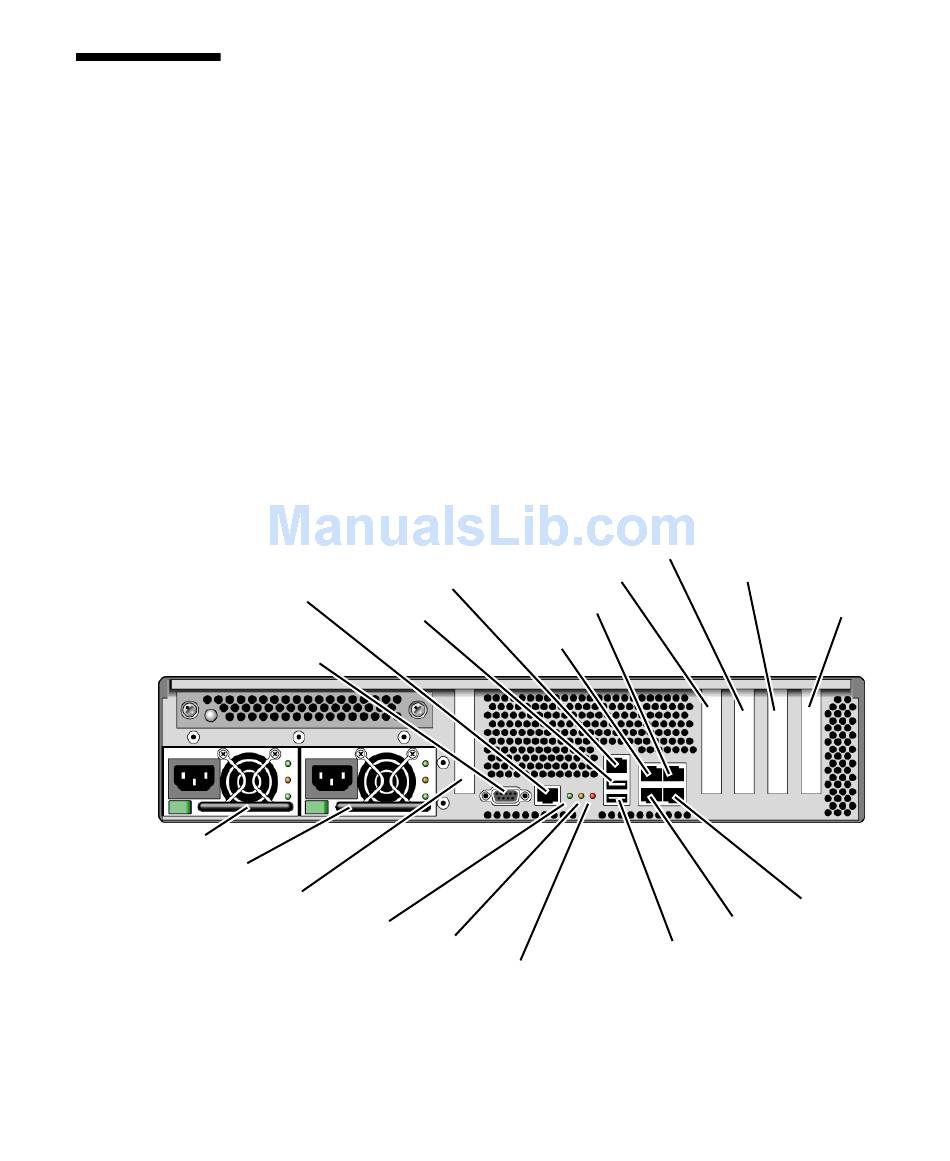

FIGURE 2-15
Fire T2000 server.
SC Serial Mgt Port
TTYA Serial Port
Power Supply 0
Power Supply 1
PCI-E Slot 0
Locator LED button
FIGURE 2-15
USB ports 2 and 3 are located on the front panel (
to locate the connectors and power supplies on the back of the Sun
SC Net Mgt Port
USB Port 1
Service Required LED
Power OK LED
Rear Panel Features
PCI-E Slot 2
PCI-E Slot 1
NET3
NET2
USB Port 0
FIGURE 2-16
Chapter 2 Installing the Sun Fire T2000 Server
PCI-X Slot 0
PCI-X Slot 1
NET1
NET0
).
