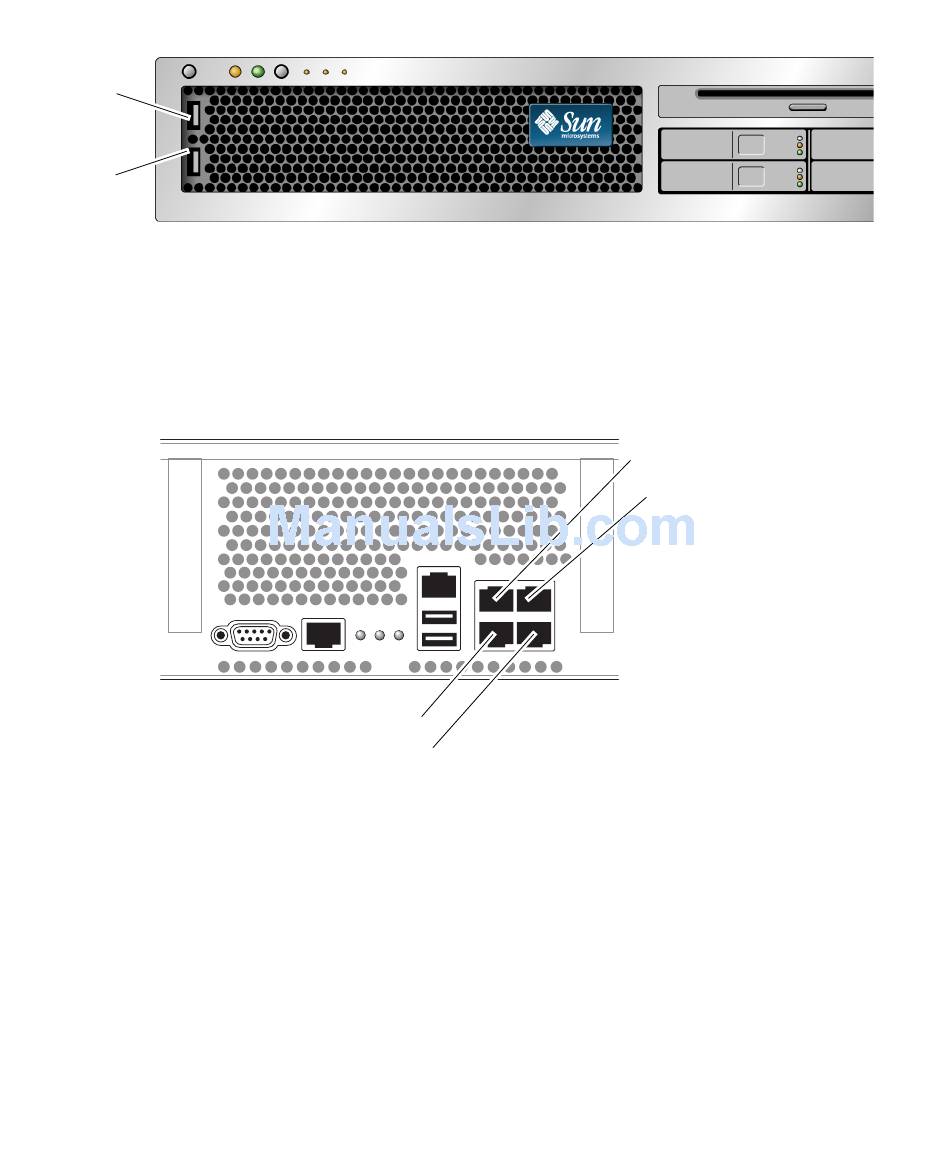

FIGURE 2-16
▼

To Connect the Ethernet Network Cables

The Sun Fire T2000 has four RJ-45 Gigabit Ethernet network connectors. They are
marked NET0, NET1, NET2, and NET3 (
FIGURE 2-17
1. Connect a Category 5 cable from your network switch or hub to Ethernet Port 0
(NET0) on the rear of the chassis.
2. As needed, connect Category 5 cables from your network switch or hub to the
remaining Ethernet ports (NET1, NET2, NET3).
28 Sun Fire T2000 Server Installation Guide • April 2006
