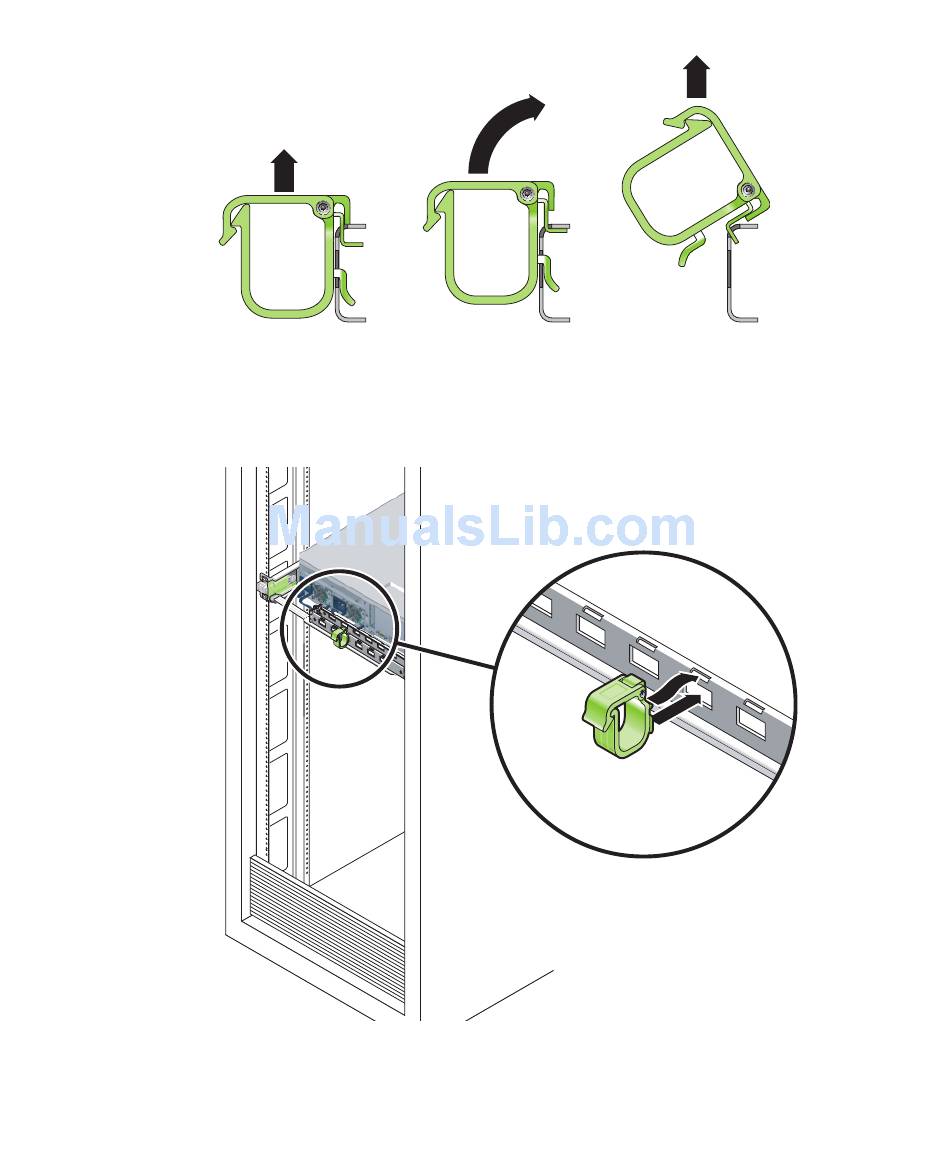

Removing a Cable Clip
FIGURE 2-22
2. To insert a cable clip, position the upper and lower clip locks in the slots of the
CMA arm, then press the clip down approximately 3/8 in (10 mm).
Mounting or Moving a Cable Clip
FIGURE 2-23
Chapter 2 Installing the Sun Fire T2000 Server 33
