c. Loosely attach the rear of the slide rail to the rear rack post with two screws.
7. Attach the second slide rail to the left rack posts in a similar manner. Again, do
not tighten the screws.
8. Use the slide rail spacing tool to adjust the distance between the slide rails:
a. At the front of the rack, plug the left side of the tool into slots at the end of the
left rail (

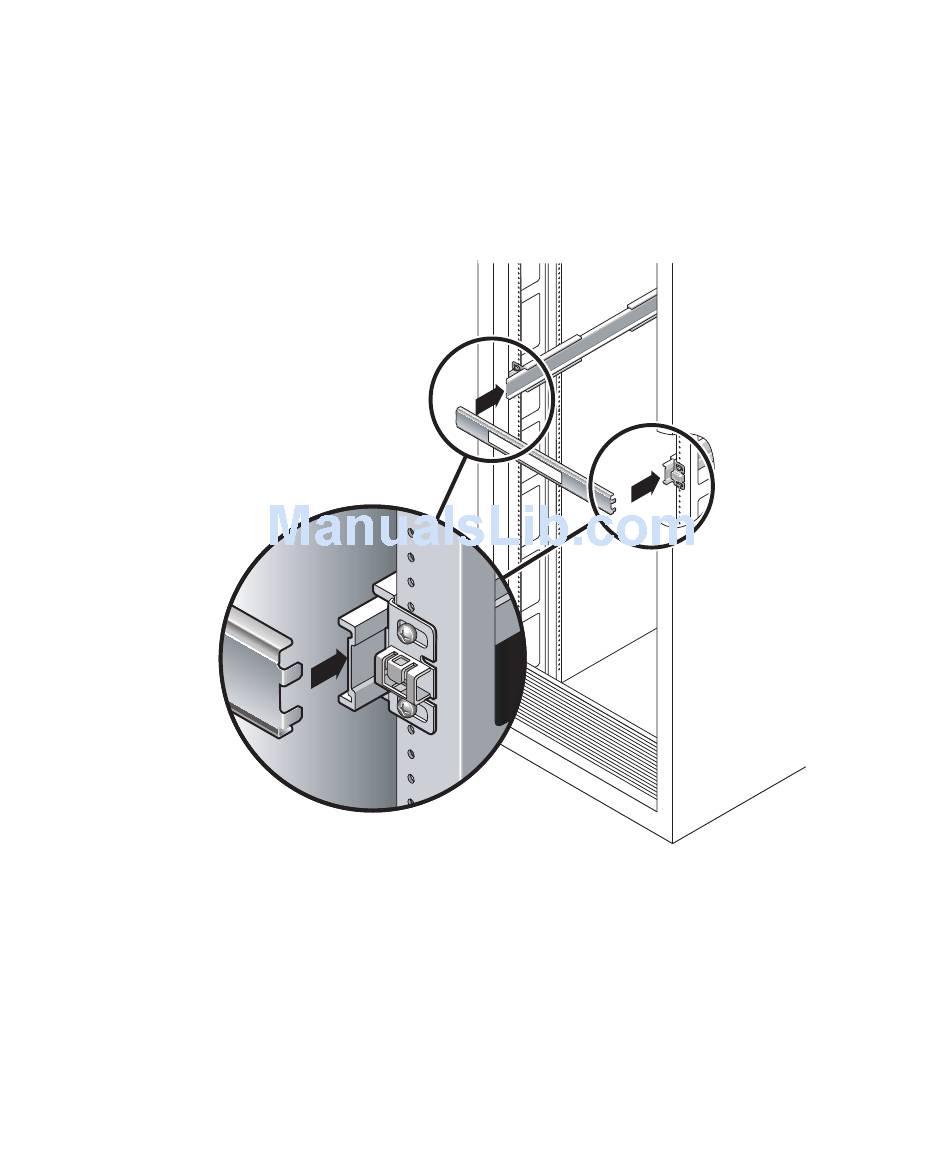

FIGURE 2-6
Using the Slide Rail Spacing Tool to Adjust the Distance Between the Slide
FIGURE 2-6
Rails
b. Insert the right side of the tool into the front end of the right rail, while sliding
the end of the rail to the right or left as needed to allow the the ends of the tool
to enter the ends of both rails.
The distance between the rails is now equal to the width of the server with
mounting brackets.
c. Tighten the screws to lock the ends of the rails in place.
).
Chapter 2 Installing the Sun Fire T2000 Server 17
