To Install the Slide Rail Assemblies

▼
1. Pull both mounting brackets completely out of their respective slide rails:
a. Simultaneously press and hold the upper and lower lock buttons of the slide
rail lock (
FIGURE 2-1
b. Pull the mounting bracket out until it locks in the extended position.
c. Slide the mounting bracket release button in the direction shown in
then slide the mounting bracket out of the slide rail.
12 Sun Fire T2000 Server Installation Guide • April 2006
).

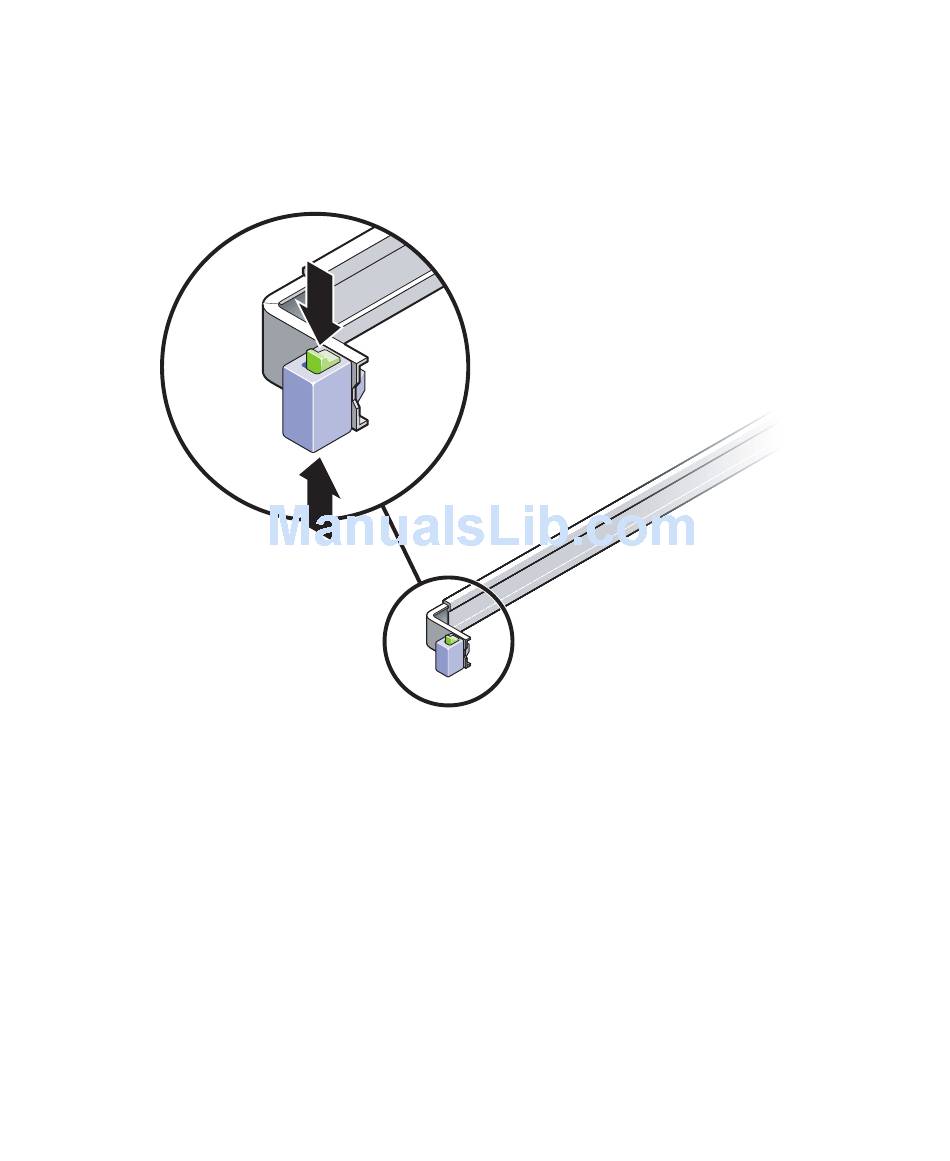

FIGURE 2-1
Unlocking the Slide Rail Assembly
,
FIGURE 2-2
