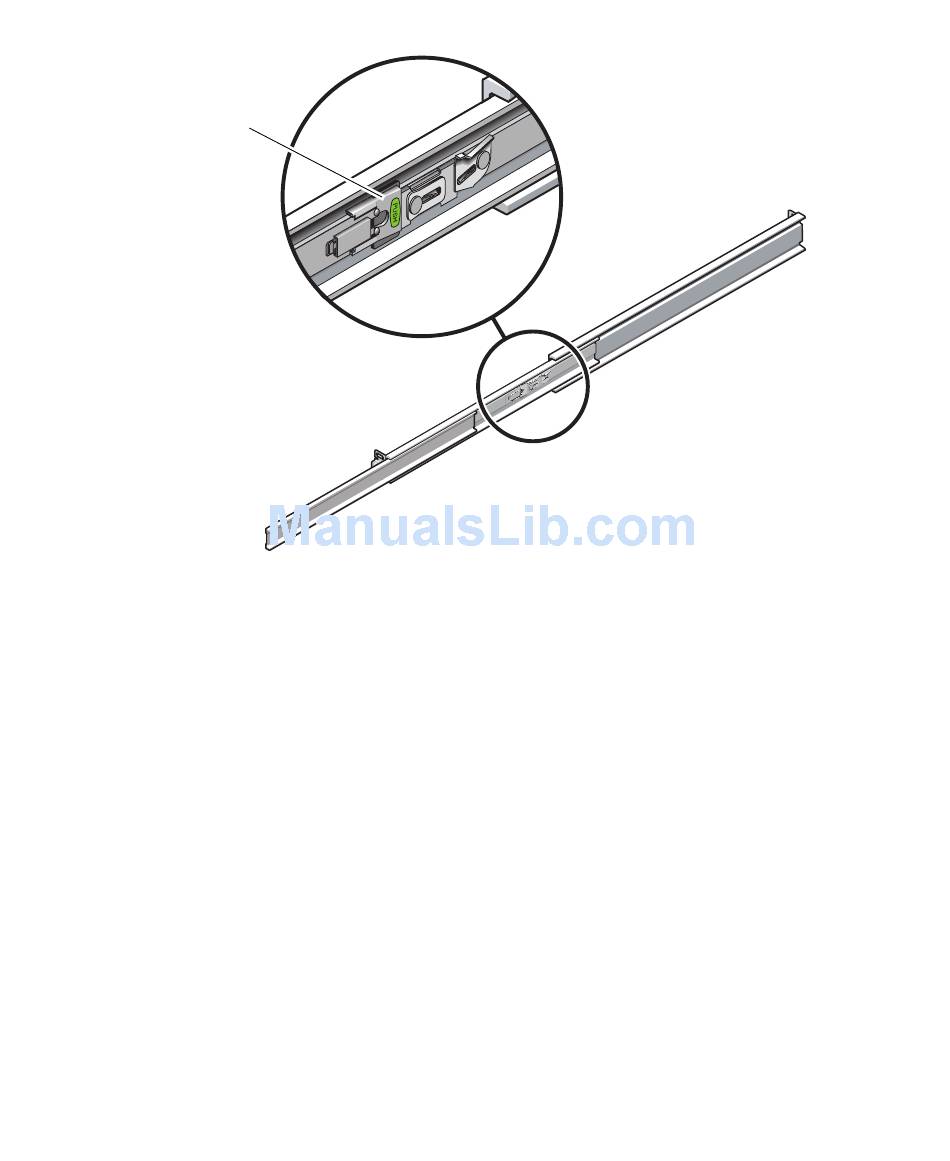

Figure 2-3 Unlocking The Slide Rail Middle Section - Sun Microsystems Sun Fire T200 Installation Manual

Metal lever
FIGURE 2-3
2. Attach a mounting bracket to the right side of the Sun Fire T2000 chassis.
a. Position the mounting bracket against the server chassis (
slide rail lock is at the front and the three keyed openings on the mounting
bracket are aligned with the three locating pins on the side of the chassis.
14 Sun Fire T2000 Server Installation Guide • April 2006
Unlocking the Slide Rail Middle Section
) so that the
FIGURE 2-4
