3D PATIENT EXPOSURE
Left
Positioning joystick
(front light = X laser)
Planmeca ProMax 3D Plus: Ø > 70 mm
Planmeca ProMax 3D Mid: Ø > 80 mm
38 Planmeca ProMax 3D Plus & 3D Mid with ProTouch

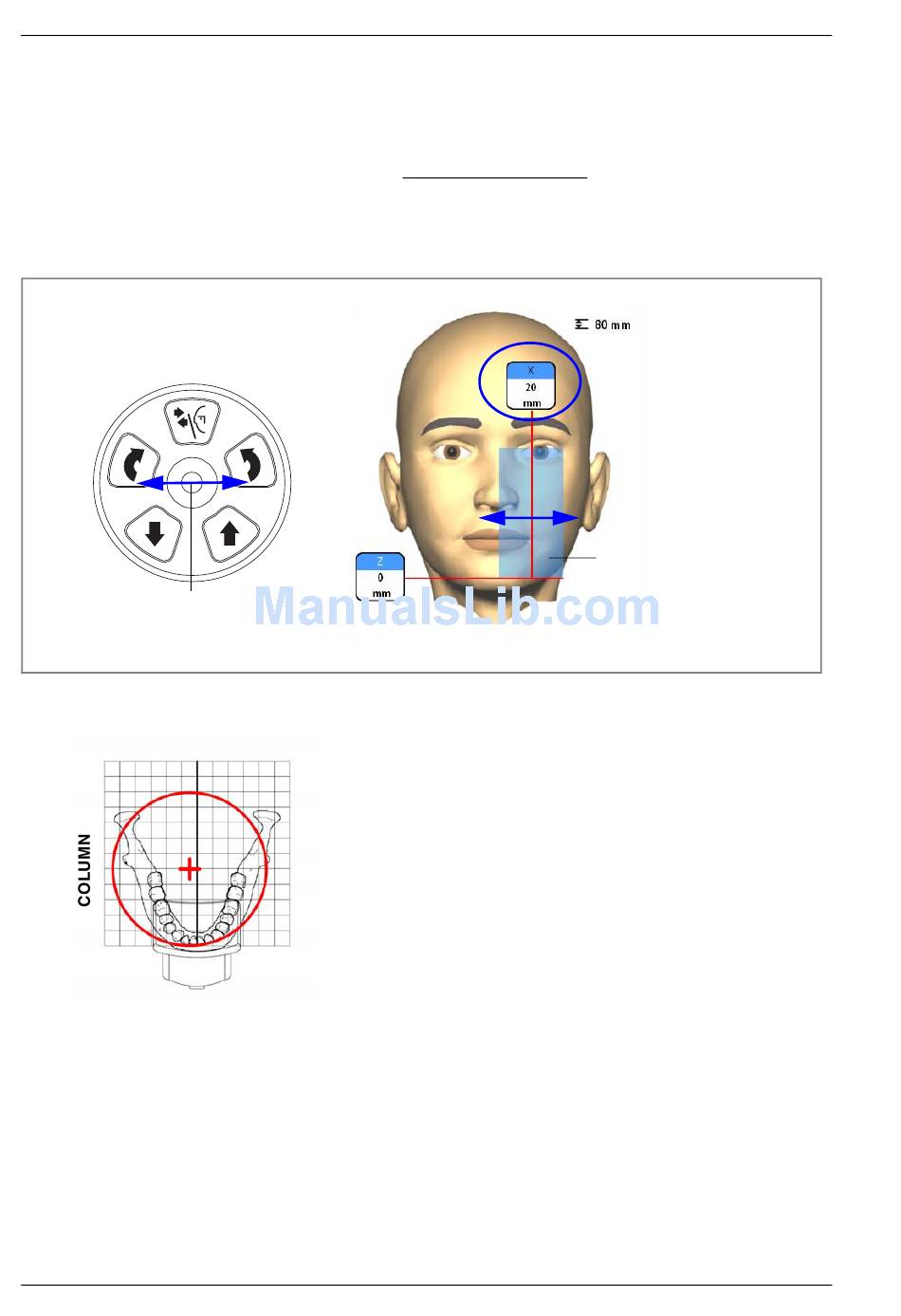

Check that the image volume is positioned correctly for
your patient. If you need to adjust the volume position,
proceed as follows.
Front light (X laser)
If you need to move the image volume to your left or right:
• Move the positioning joystick to your left or right. The
front light (i.e. the image volume center as seen from
the front) will move accordingly.
Right
Left
NOTE Image volumes with large diameters (3D Plus: Ø >
70 mm / 3D Mid: Ø > 80 mm) are slightly offset towards
the column. These image volumes cannot be moved to
the left or right.
Right
Small image volume
