Planmeca ProMax 3D Plus User Manual page 35

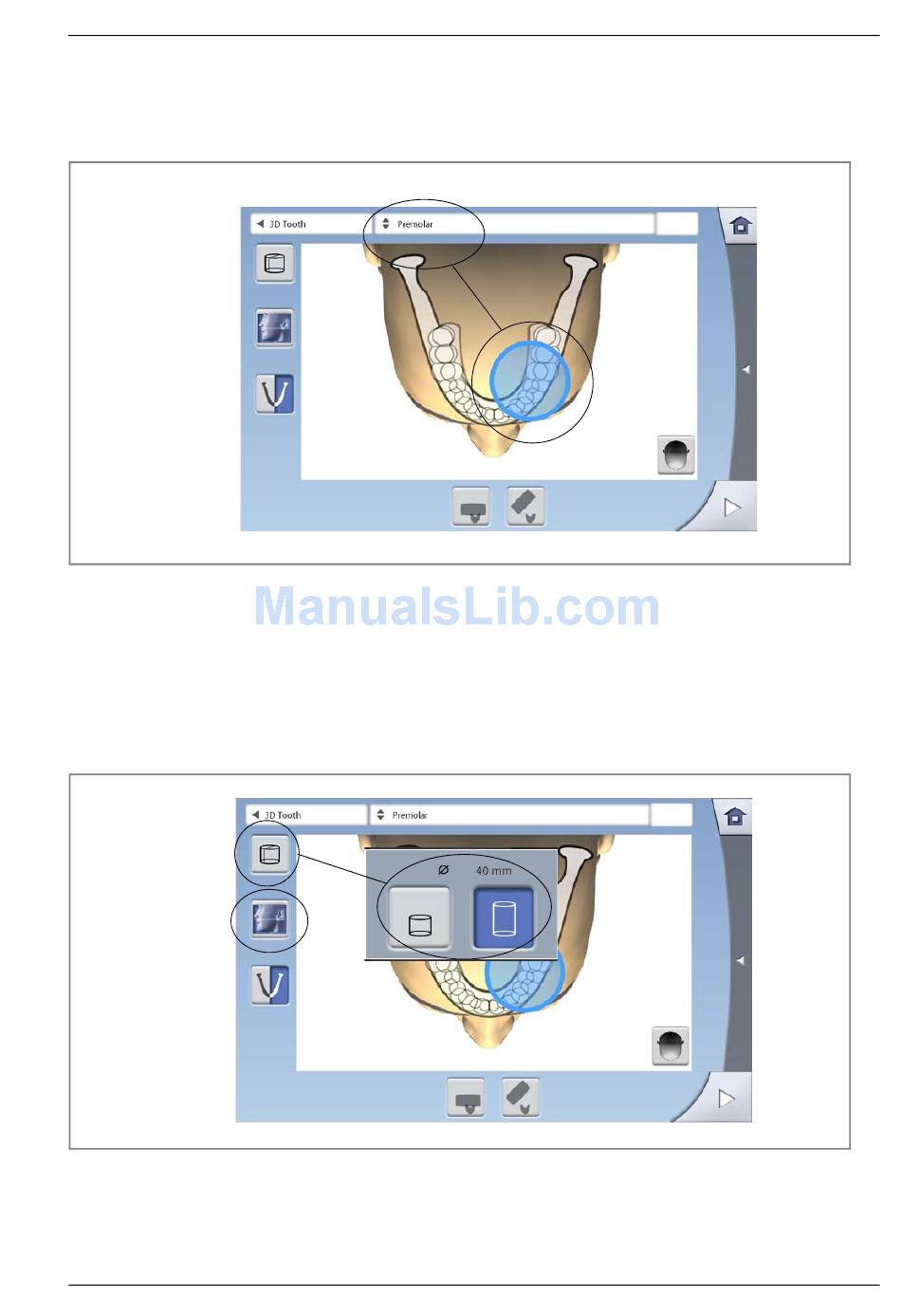

9.2.7 Selecting volume position
9.2.8 Selecting volume height and jaw half
Select
volume height
Select
jaw half
(lower / upper /
both halves)
User's Manual (3D)
Touch the area that you wish to expose. Alternatively, you
can select the volume position from the drop-down menu
at the top.
Select from list
OR
NOTE The available options depend on the selected
program.
Use the first button on the left of the screen to select the
volume height.
Use the second button on the left of the screen to select
the jaw half that you wish to expose.
NOTE The available options depend on the selected
program.
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 31
3D PATIENT EXPOSURE
Select from screen
