9 3D PATIENT EXPOSURE
9.1

Preparing X-ray system

9.1.1 Attaching and removing sensor
Attaching sensor to C-arm
User's Manual (3D)
NOTE The available sensors are shown in section 6.3
"Sensors" on page 9.

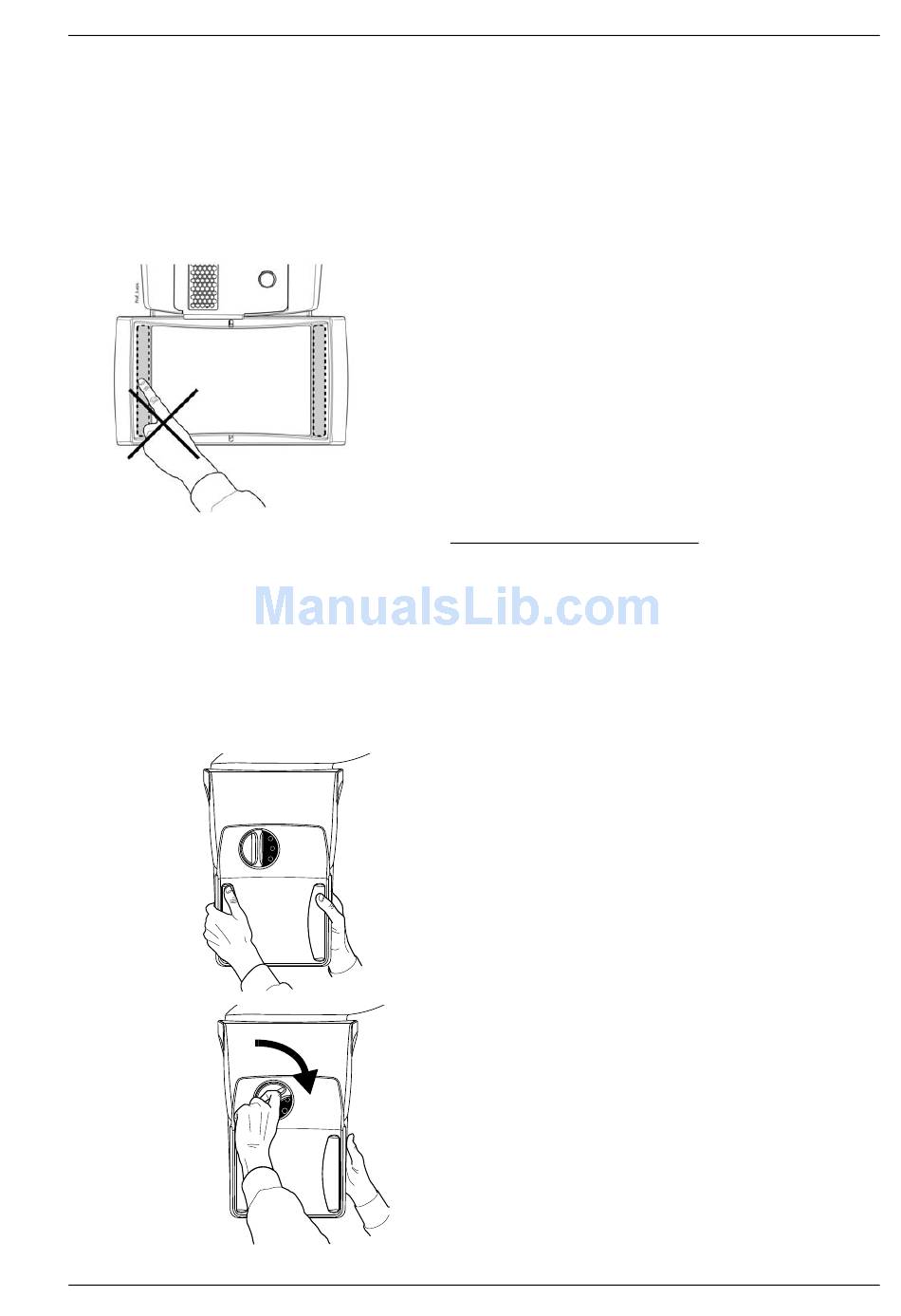

NOTE FOR PROFACE SENSOR:
Do not touch the glass windows when you hold the
sensor. Fingerprints or other stains on the glass
surface destroy image quality.
CAUTION Do not drop the sensor. Planmeca limited
warranty does not cover damage which is
due to misuse, e.g. dropping the sensor,
neglect, or any cause other than ordinary
use.
If you have any reason to believe that the
sensor might be faulty, take a test exposure
before taking a patient exposure.
1. Push the sensor onto the connector on the C-arm.
2. Turn the locking knob over the fastening mechanism.
This will secure the sensor in position.
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 21
