11.2

Taking an exposure of an impression or plaster cast

11.2.1 Selecting settings
(part number 10030330)
Adapter
Patient support table
User's Manual (3D)
NOTE The X-ray unit has to be calibrated for each new
NOTE FOR IMPRESSIONS:
Polystyrene disc
Forward field
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 51
material that is used. Refer to the previous section for
details.
Do not use impression trays made of metal.

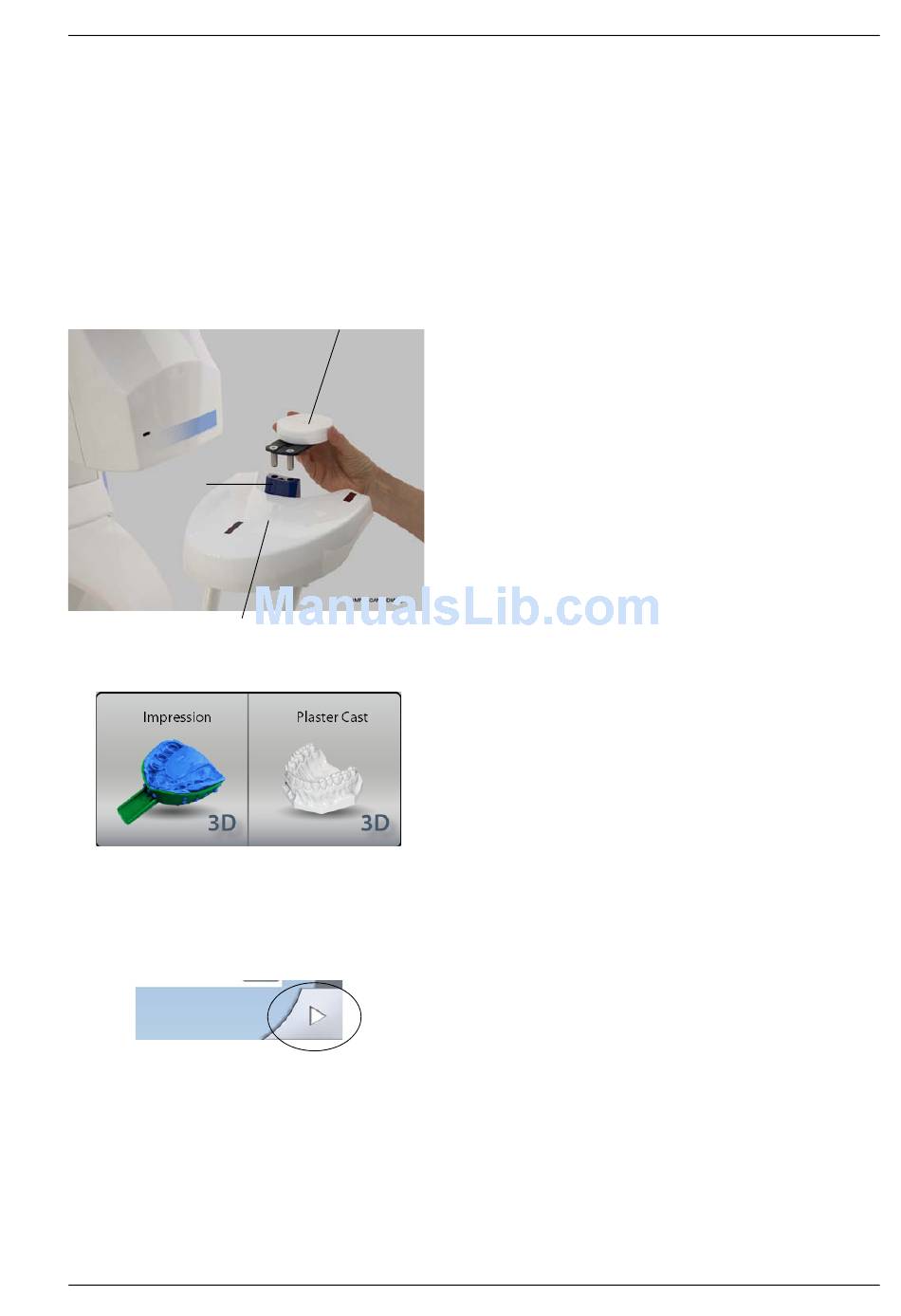

1. Remove any patient supports attached to the X-ray
unit patient support table. Insert the polystyrene disc
provided (part number 10030330) into the adapter if it
is not in place.
2. On the X-ray unit, select the program.
• For impressions select
3D Models > Impression.
• For plaster casts select
3D Models > Plaster Cast.
3. Select the exposure values that you used in the
calibration process for this material. Refer to section
9.2.5 "Adjusting exposure values for current exposure"
on page 28.
4. Select the forward field on the touch screen. The
positioning lights (volume center lights, volume bottom
light and incisor light) come on. The volume center
lights cross in the middle of the image volume.
3D MODEL EXPOSURE
