9.1.2 Attaching patient supports

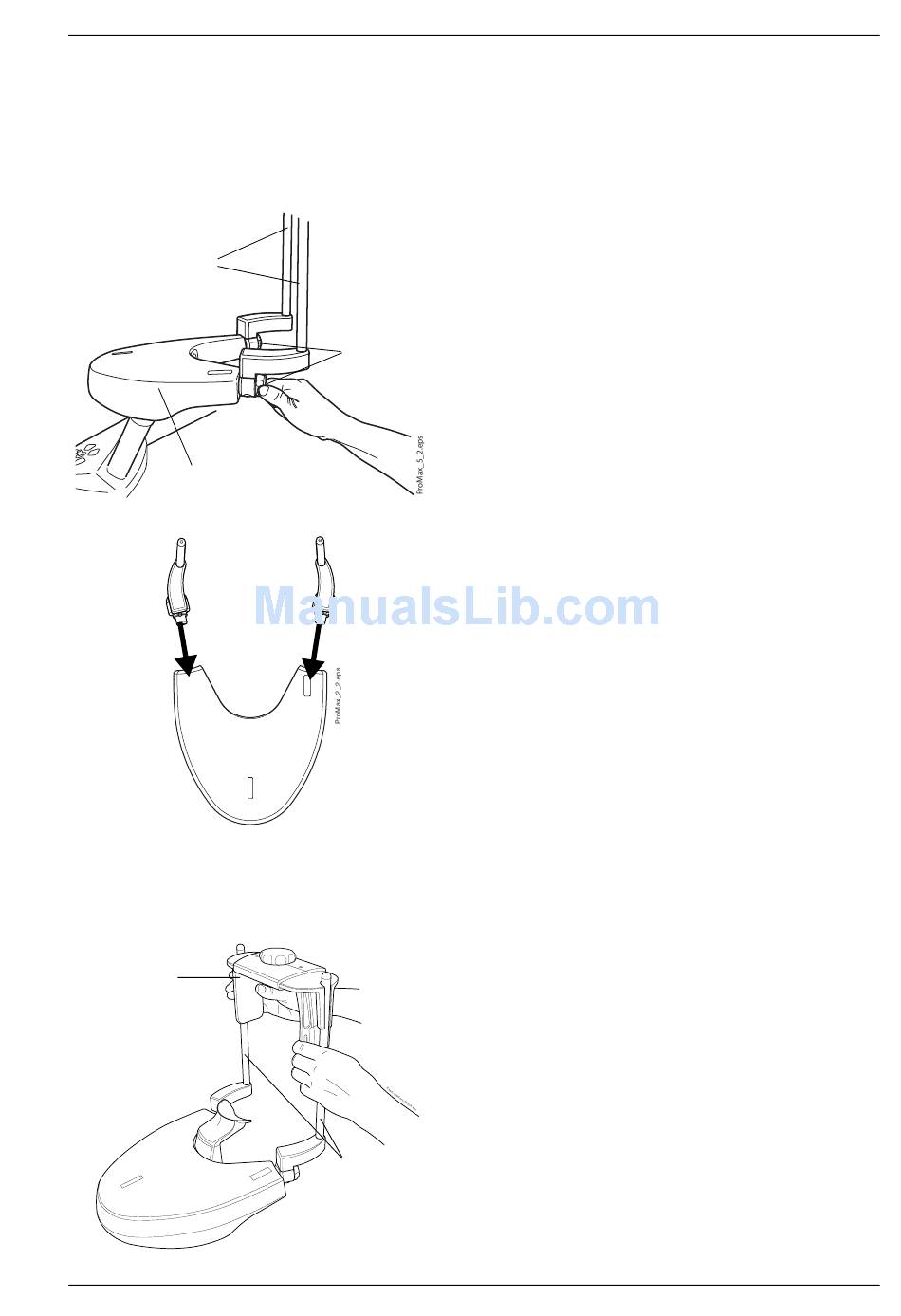

Attaching support bars
Support bars
Patient support table
Head support A: Attaching adjustable head support
Adjustable
head support
User's Manual (3D)
NOTE The available head supports are shown in section 6.5
"Exposure switch" on page 11.
Insert the support bars into the holes in the patient
support table and secure them in position by tightening
the locking knobs.
Locking
knobs
NOTE Ensure that you insert the support bars the right way
round.
If you are using the adjustable head support, slide it onto
the support bars.
Support bars
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 23
3D PATIENT EXPOSURE
