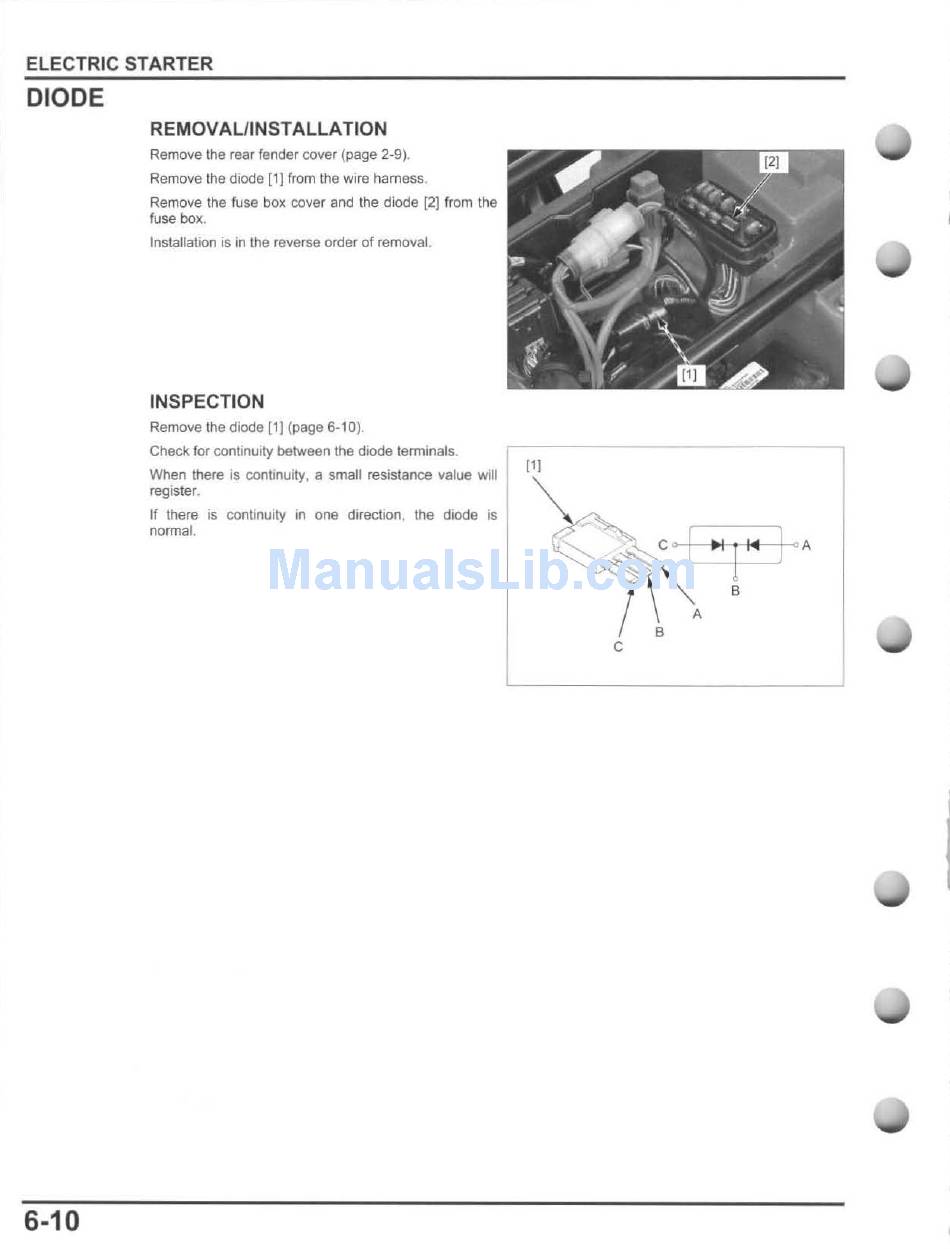

ELECTRIC STARTER
DIODE
6-10
REMOVAUINSTALLATION
Remove the rear fender cover (page 2-9).
Remove the diode [1
J
from the wire harness.
Remove the fuse box cover and the diode [2] from the
fuse box.
Installation is In the reverse order of removal.
INSPECTION
Remove the diode [1] (page 6-10).
Check for continuity between the diode terminals.
When there is continuity, a small resistance value will
register.
If there is continuity in one direction , the diode is
normal.
c
J
