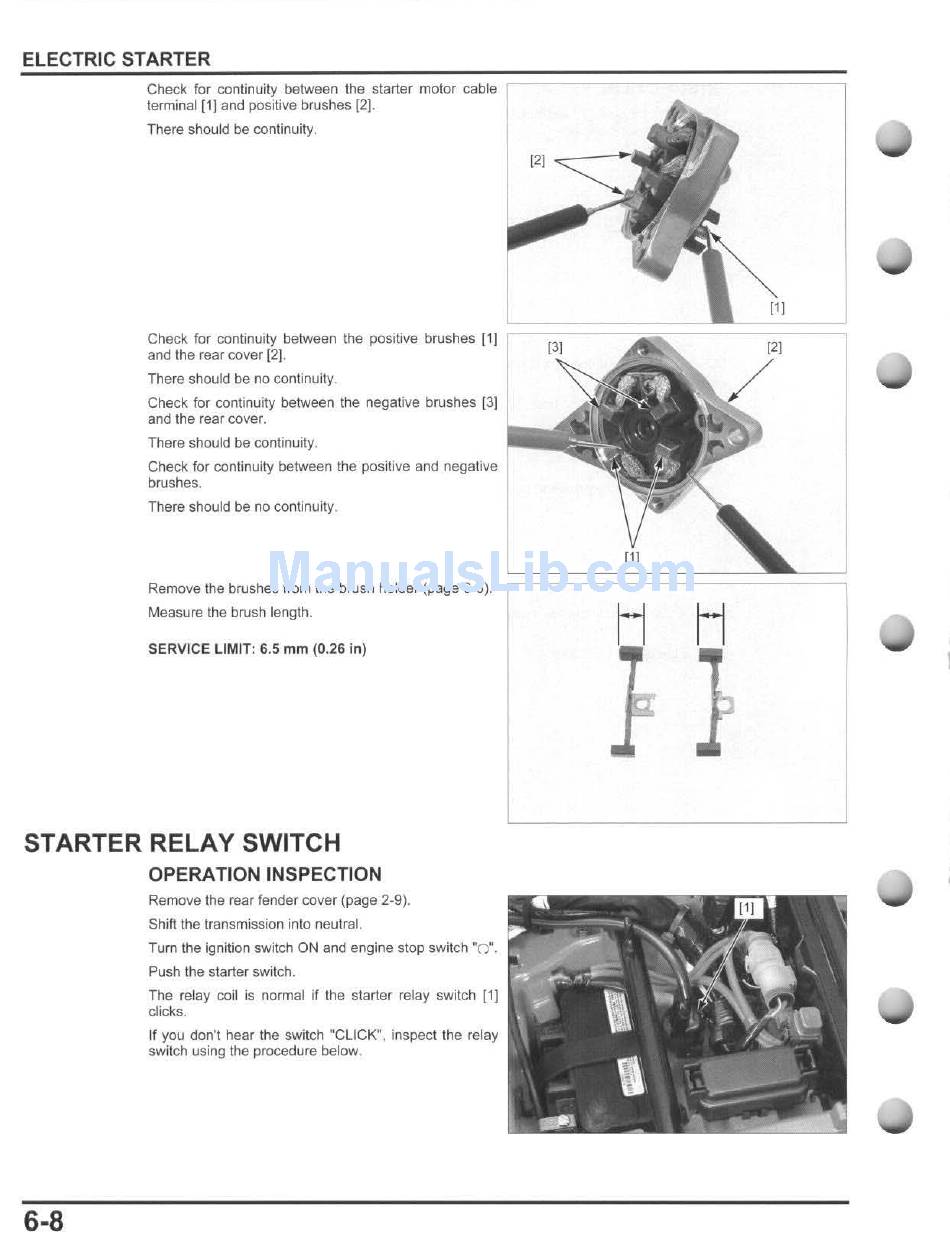

ELECTRIC STARTER
Check for continuity between the starter molor cable
terminal [1J and positive brushes
(21.
There should be continuity.
Check for continuity between the positive brushes [1]
and the rear cover (2).
There should be no continuity.
Check for continuity between the negative brushes [3]
and the rear cover.
There should be continuity.
Check for continuity between the positive and negative
brushes.
There should be no continuity.
Remove the brushes from the brush holder (page 6-6).
Measure the brush length.
SERVICE LIMIT : 6.5 mm (0.26 in)
STARTER RELAY SWITCH
OPERATION INSPECTION
6-8
Remove the rear fender cover (page 2-9).
Shift the transmission into neutral.
Tum the ignition switch ON and engine stop switch "0",
Push the starter switch.
The relay coil is normal if the starter relay switch [1J
clicks.
If you don't hear the switch "CLICK", inspect the relay
switch using the procedure below.
