ELECTRIC STARTER

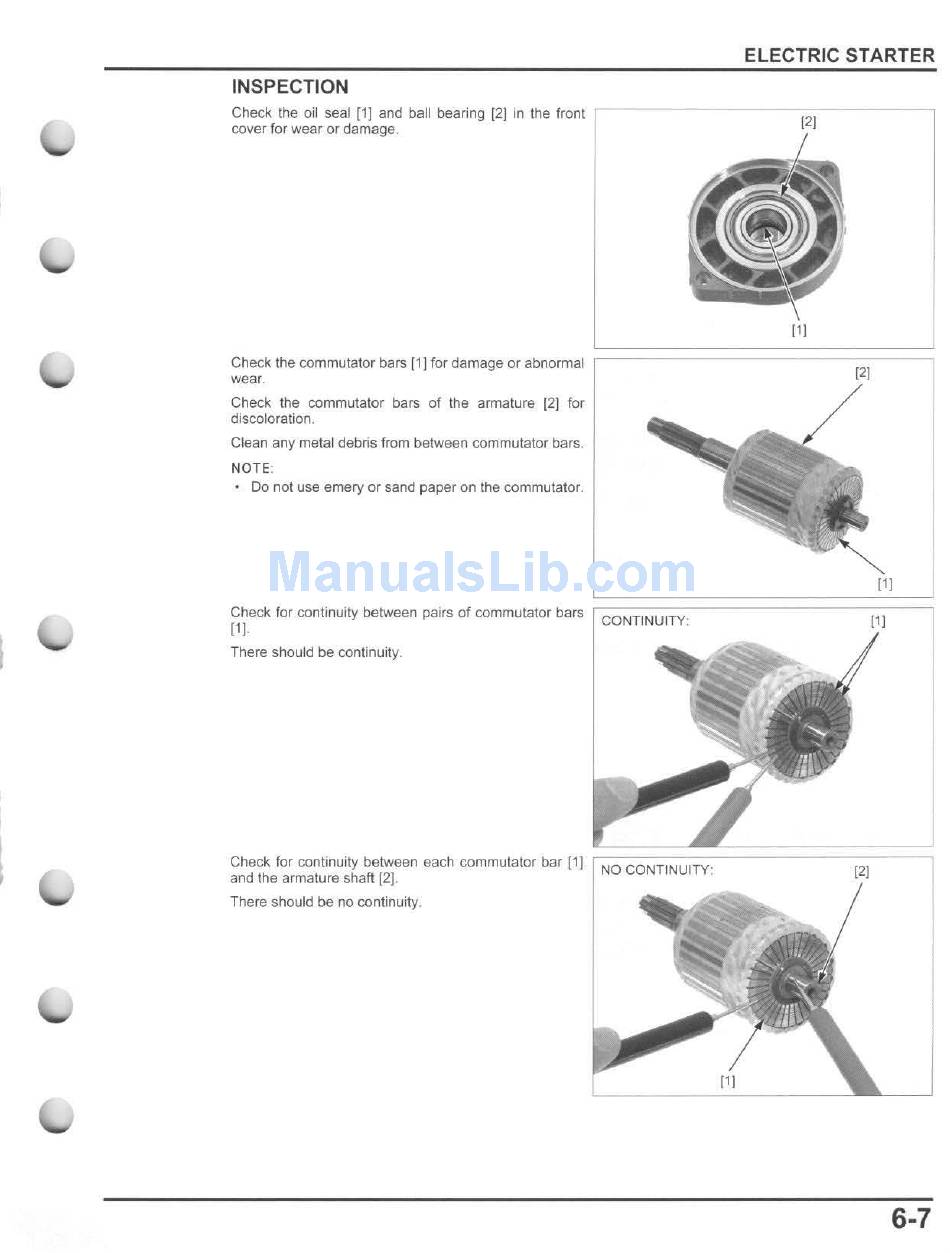

INSPECTION
Check the oil seal [1J and ball bearing [2] in the front
r - - - - - -- - - - - - - - - - - - ,
cover for wear or damage.
Check the commutator bars [1) for damage or abnormal
wear.
Check Ihe commutator bars of Ihe armature [2) for
discoloration.
Clean any metal debris from between commutator bars.
NOTE :
• Do not use emery or sand paper on the commutator.
Check for continuity between pairs of commutator bars
[1[.
There should be continuity.
[1[
[1
J
CONTINUITY:
Check for continuity between each commutator bar [1]
and the armature shaft [2].
There should be no continuity.
6-7
