The wiring loom handle socket can now be removed and replaced. To fit the wiring loom
c.
handle socket follow the removal instruction above in reverse order. Then assemble the
detector as described in Section

3.9.5 Detector Body Parts

This section of the manual describes the parts of the F3Ci detector in the body of the detector
that are not covered by the range of line replaceable units, figures 96 to 99 illustrate these parts
31-24045-982
Screw M4x45
0703-0203
3.2 - Closing the Detector Body.
31-24035-982
Screw M4x35
2703-0040 Decal

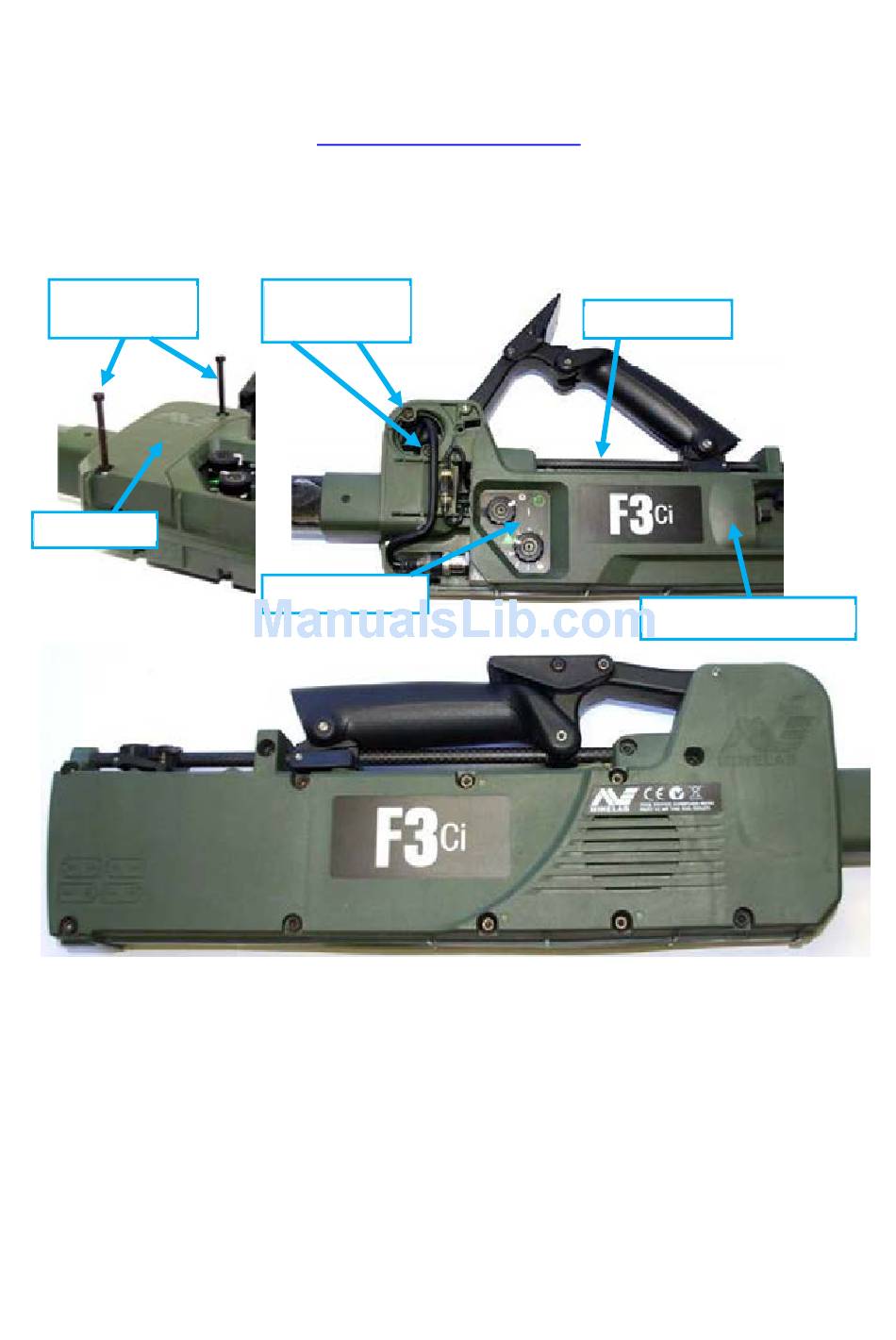

Figure 96: Detector left side
58
F3Ci Service Manual
0304-0027 Rod
0703-0205 Body Left
