Minelab F3Ci Service Manual

Minelab F3Ci Service Manual

Ied and mine detector
Hide thumbs Also See for F3Ci:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
F3Ci IED and Mine
F3 Metal Mine Detector
Detector
Version 1:
Part No:

Advertisement

Table of Contents
loading

Related Manuals for Minelab F3Ci

Summary of Contents for Minelab F3Ci

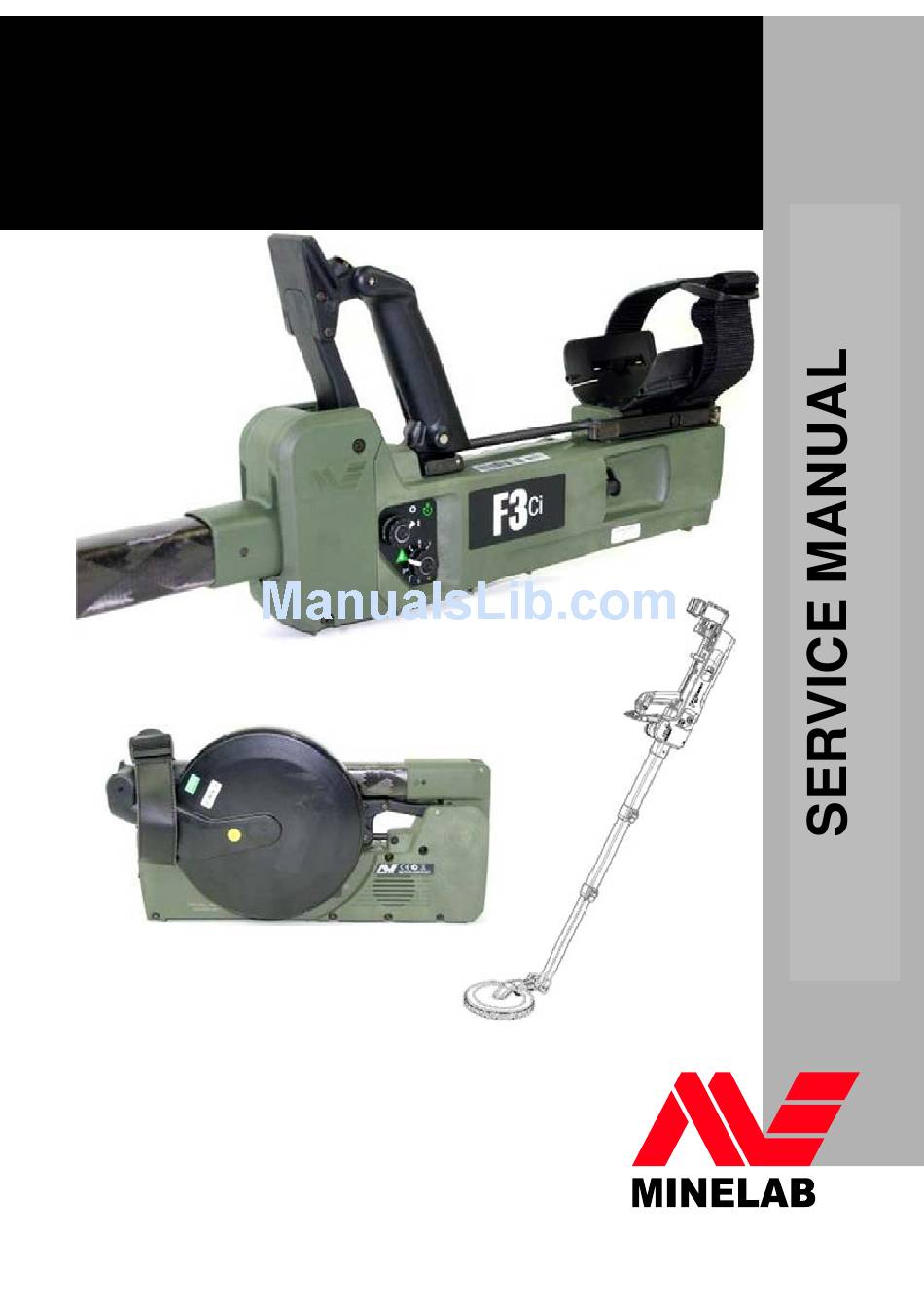

  • Page 1 F3Ci IED and Mine F3 Metal Mine Detector Detector Version 1: Part No:...

  • Page 2: Table Of Contents

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Contents Introduction ............................ 3 Mechanical & Functional Testing ..................... 4 Disassembly & Reassembly Procedures ..................12 Opening the Detector Body ....................13 Closing the Detector Body ...................... 16 Main Printed Circuit Board (PCB) .................... 22 3.3.1 Removing the Main PCB ....................

  • Page 3: Introduction

    * LRUs that are common to the Minelab F3 COMPACT detector Servicing the F3Ci can be conducted in the field (under clean dry conditions) or at local service centres. No special tools are required, but it is recommended that the F3Ci Service Tool Kit be used.

  • Page 4: Mechanical & Functional Testing

    2. Mec anical Functional estin The detector set should be regularly checked to ensure all parts and accessories are present and in good working order. The F3Ci is supplied as a mine detecting set comprising: F3Ci Detector 4901-0144 Operations Manual F3Ci...
  • Page 5 2.1 Mec anical estin Confirm all parts and accessories are present and in good working order. Unpack the detector and prepare for use. Figure 2 identifies the major components of the F3Ci. Mechanical testing and inspection includes checking: The detector for any obvious signs of damage, •...
  • Page 6 Functional testing is used to confirm the serviceability of an F3Ci before it is returned to the field for use and whenever doubt exists about its serviceability. The F3Ci must pass all tests to be considered serviceable and ready for use. Whenever a line replaceable unit is replaced or a repair is conducted, all functional testing must be completed.
  • Page 7 The noise cancelling procedure will commence with a single beep followed by 20 • seconds of sharp triple beeps and finish with a four beep sequence. During the 20 seconds the F3Ci scans the environment searching for the source of • any electrical interference. Once detected, the detector will automatically select a different operating frequency to eliminate or reduce the interference.
  • Page 8 _______________________________________________________________________________________________________________________ Note This action will cause the F3Ci to delete the previously stored ground balance condition. Unless this is done the detector will remember its last ground balance condition regardless of the unit being switched off or the batteries removed.
  • Page 9 F3Ci Service Manual _______________________________________________________________________________________________________________________ This test confirms the earset is operating correctly and is conducted as Earset est. follows: Plug the earset into the detector as shown in Figure 6. • Switch on the detector and confirm the audio tones are audible using the earset.
  • Page 10 • will resume. Sensitivity Control est. This test confirms the sensitivity control allows the operator to make adjustments to the sensitivity of the F3Ci. The test is conducted as follows: Set the sensitivity to the default position 4. • Turn on the detector.
  • Page 11 F3Ci Service Manual _______________________________________________________________________________________________________________________ Hold the test piece above the middle of the coil with the rounded end (containing • metallic target) Away from the coil. Move the test piece towards the centre of the coil until it lightly touches the coil then •...

  • Page 12: Disassembly & Reassembly Procedures

    Whenever a unit is replaced, mechanical and functional testing as described in Section Mechanical & Functional Testing must be completed. It is recommended that the 3004-0055 F3Ci service tool kit be used to conduct disassembly and reassembly procedures. The tool kit contains the following: Pull-through for coil cable •...

  • Page 13: Opening The Detector Body

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Openin t e Detector Body In order to conduct repairs and replace many of the parts of this detector, the first step will often be to open the detector body. Many sections of this manual will refer back to this section.
  • Page 14 F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 10: Disconnecting Coil Plug and Removing Screws Turn the detector over onto its left side with speaker grill uppermost. • Using the 3mm hex key driver, remove all eight screws from the detector body. •...
  • Page 15 F3Ci Service Manual _______________________________________________________________________________________________________________________ Using fingers gently separate the left and right body halves. The battery end of the • detector will come away easily. The shaft end is held by two locating pins and will require more force to separate.

  • Page 16: Closing The Detector Body

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 15: Open Detector Body The body of the detector is now opened revealing the internal components which can now be replaced as required. Closin t e Detector Body The following procedure outlines the steps involved in closing and resealing the detector...
  • Page 17 F3Ci Service Manual _______________________________________________________________________________________________________________________ Fit the coil cable into the cable router and check that the loop of coil cable within the • shaft hinge is positioned so that it will not be trapped when the detector body is closed. Refer to Figure 20.
  • Page 18 F3Ci Service Manual _______________________________________________________________________________________________________________________ The hinge cover holds the latch hinge and spring latch hinge in place. When the hinge cover is removed the spring may unintentionally disconnect from the latch. Ensure the battery lid is closed. • Connect the speaker cable to the connector on the main PCB. Check all other •...
  • Page 19 F3Ci Service Manual _______________________________________________________________________________________________________________________ Ease the two halves of the detector together. Align the detector body right side with • the locating pins either side of the shaft hinge. Check the latch hinge and spring latch hinge are in place and connected.
  • Page 20 F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 22: Fitting Four Screws Identify the four Torx screws (star) and check they all have O-rings fitted. Insert the • four Torx screws into the right side of the detector. The Torx screw positions have a Torx symbol next to their screw holes.
  • Page 21 F3Ci Service Manual _______________________________________________________________________________________________________________________ Note Do not move the detector with the hinge cover removed as this may result in the spring latch hinge and the latch hinge becoming disengaged. Confirm coil connector is tight and check the coil cable and the wiring loom are •...

  • Page 22: Main Printed Circuit Board (Pcb)

    Testing. Main Printed Circuit Board (PCB) The main PCB of the F3Ci is a line replaceable unit and this section of the manual describes the procedure for its replacement. Figure 28 shows the main parts associated with the main PCB.

  • Page 23: Removing The Main Pcb

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 29: Parts of the Main PCB 3004-0133 Main PCB Kit, contains all parts in this table. 4311-0089 Bracket Main PCB Table 1: Parts of Main PCB 3.3.1 Removin t e Main PCB To remove the main PCB, open the detector body as described in section 3.1 - Opening...
  • Page 24 F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 31: Removing the Coil Connector Nut (18mm) Remove the PCB screw from the main PCB, using a 2.5mm hex key driver. • Disconnect the battery connector from the main PCB. • PCB Screw Battery Connector...
  • Page 25 F3Ci Service Manual _______________________________________________________________________________________________________________________ Wiring Loom Handle Earset Cable Assembly Vibration Motor internal Connector Figure 33: Disconnect Connectors on main PCB Identify the ribbon cable connector on the main PCB which connects to the switches. • Lift open the locking bails on the ribbon cable connector this allows the ribbon cable •...

  • Page 26: Installing The Main Pcb

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Gently lift the main PCB out of the detector body. • Figure 35: Lifting Main PCB Out of Detector The main PCB can now be replaced. 3.3.2 Installin t e Main PCB. Having opened the detector body and removed the main PCB, install a serviceable main PCB as follows: Place the detector on its left side in a clean well lit area.
  • Page 27 F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 37: Fitting Main PCB Fit the PCB screw as shown in Figure 38. • Figure 38: PCB Screw Position the coil connector ensuring the connector has a clean and correctly • positioned O-ring as shown in Figure 39.
  • Page 28 F3Ci Service Manual _______________________________________________________________________________________________________________________ Wiring Loom Handle Earset Cable Vibration Motor Assembly Connector internal Figure 40: Connectors Align the ribbon cable with its connector. Slide the connector locking bails outwards • (up) to accept the ribbon cable. Insert the ribbon cable into the connector then push the locking bail in to secure.
  • Page 29 F3Ci Service Manual _______________________________________________________________________________________________________________________ Battery Connector Figure 42: Connecting Battery Connector Make sure all connectors are firmly in place and all wires and cables are positioned • so that they will not cause obstruction or get damaged when the two halves of the main body are fitted together.

  • Page 30: Coil

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Coil The coil is a line replaceable unit (LRU) and figure 44 illustrates the major parts of the coil. 3004-0135 Coil Kit , is a service kit containing the coil and associated parts. 3004-0130 Coil Pivot Kit is an LRU and is included in the 3004-0135 Coil Kit LRU. All parts are available individually.

  • Page 31: Skid Plate Replacement

    F3Ci Service Manual _______________________________________________________________________________________________________________________ 3.4.1 Skid Plate Replacement The skid plate is designed to protect the coil and may require replacement after long periods of use. There is no requirement to remove the skid plate to clean inside during routine maintenance or operation.
  • Page 32 F3Ci Service Manual _______________________________________________________________________________________________________________________ Coil Connector Figure 46: Remove Hinge Cover Unscrew and disconnect the coil connector. • Figure 47: Disconnecting Coil Connector Remove the pin coil cable from the upper end of the upper shaft. Turn the pin •...

  • Page 33: Coil Pivot

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 49: Removing Screws from Lower Shaft Insert a flat tip screwdriver into the slot underneath the cap shaft and lift and • remove the cap shaft. Slide the coil out and off the lower shaft, exposing the coil cable.

  • Page 34: Removing Coil Pivot

    F3Ci Service Manual _______________________________________________________________________________________________________________________ 4311-0086 4003-0121 0703-0204 4003-0126 4003-0124 4311-0074 4308-0030 30-29011-514 Figure 52: Coil Pivot Kit Parts 3004-0130 Coil Pivot Kit, contains all items in this Table 30-29011-514 O-Ring 25mm ID x2 4311-0090 Pivot Coil Yoke 4311-0086 Pivot Shaft...

  • Page 35: Fitting The Coil Pivot

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 54: Removing Pin Coil Pivot Separate the pivot lower shaft from the pivot coil yoke. Gently feed the coil cable • through the pivot lower shaft removing the pivot shaft from the coil cable. Do not stretch the coil cable.
  • Page 36 F3Ci Service Manual _______________________________________________________________________________________________________________________ 3.4.2 Removing the Coil. Once completed: Fit the O-ring to the coil as shown in Figure 60. • O-Ring 5 Coils inside Pivot Figure 57: O-Ring and Coil Cable Identify the section of coil cable closest to the coil and wind or unwind the coil cable •...
  • Page 37 F3Ci Service Manual _______________________________________________________________________________________________________________________ the pivot and try again. Do Not Use Excessive Force. Push the pin in with fingers and click into place. Figure 60: Inserting Pin Coil Pivot Note The pin coil yoke must thread through five turns of the cable inside the pivot.

  • Page 38: Fitting The Coil

    F3Ci Service Manual _______________________________________________________________________________________________________________________ 3.4.6 Fittin t e Coil With practice and a pull through tool it is possible to fit the coil to the detector without opening the detector body and removing the detector shafts. Figure 62: Coil LRU Connect the coil cable pull-through to the coil connector.
  • Page 39 F3Ci Service Manual _______________________________________________________________________________________________________________________...
  • Page 40 F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 65: Fit cap shaft and screws Thread the coil cable through the detector hinge and align the coil connectors. • Tighten coil connector. Fit coil cable into cable router then replace the hinge cover. •...
  • Page 41 F3Ci Service Manual _______________________________________________________________________________________________________________________ Spring Latch Cables held in Hinge Cable Router Spring Eyelet located on pin of Figure 67: Underneath Latch Hinge Hinge Cover Fit the hinge cover making sure the protrusion on the underside of the hinge cover •...

  • Page 42: Shafts

    F3Ci Service Manual _______________________________________________________________________________________________________________________ S afts The complete shaft assembly of the detector is a line replaceable unit and Figure 71 illustrates the major parts. 4311-0073 8007-0065 4308-0014 0703-0202 8008-0059 4308-0018 8009-0011 8008-0060 8008-0062 8007-0063 8008-0061 8007-0064 8009-0012 Figure 69: Shaft Parts...

  • Page 43: Replacing A Camlock

    F3Ci Service Manual _______________________________________________________________________________________________________________________ 3.5.1 Replacin a Camlock Camlock replacement can be achieved as follows: Open the camlock lever and using a pin punch and hammer drive the camlock pin • out. Figure 70: Removing Camlock Pin Once the camlock pin has been removed the camlock pressure block can be removed •...
  • Page 44 F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 72: Shaft and Coil removed from Detector Remove the pin coil cable from the upper end of the upper shaft. Turn the pin coil • cable clock wise and then lift out. Figure 73: Removing Pin Coil Cable Remove the two nylon screws from the cap shaft on the lower shaft as indicated in •...

  • Page 45: Fitting The Shafts

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 75: Removing Coil from Shafts Figure 76: Detector Shafts Assembly The shafts have now been removed from the detector and can be replaced if required. 3.5.3 Fittin t e S afts The detector body needs to be opened in order to fit the shafts to the detector, refer to Section 3.1 –...

  • Page 46: Handle

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Handle The handle assembly is a line replaceable unit and Figure 77 illustrates the major parts of the handle. 4308-0026 8005-0068 0705-0082 4308-0024 31-03512-982 8005-0069 8005-0067 0705-0082 4006-0038 4311-0076 4308-0023 4311-0079 4006-0041 4308-0022 Figure 77: Handle Parts 3004-0132 Handle Kit, contains all items in this table.

  • Page 47: Removing The Handle

    F3Ci Service Manual _______________________________________________________________________________________________________________________ 3.6.1 Removin t e Handle The detector body must first be opened to remove the handle as described in Section 3.1 - Opening the Detector Body. Once completed: Figure 78: Disconnect Wiring Loom Handle Disconnect the wiring loom handle. Hold one side of the connector firm against the •...

  • Page 48: Fitting The Handle

    F3Ci Service Manual _______________________________________________________________________________________________________________________ 3.6.2 Fittin t e Handle To fit the handle the detector body must be opened as described in Section 3.1 - Opening the Detector Body. Once completed: Thread the wiring loom handle into the detector body.

  • Page 49: Armrest

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 83: Correct Position of Wiring Loom Handle Assemble the detector and close the detector body as described in Section 3.2 - Closing the Detector Body. Armrest The armrest is a line replaceable unit with or without slide as shown in Figure 86.

  • Page 50: Battery Compartment

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Armrest Slide Figure 85: Removing the Armrest The armrest assembly can now be replaced as an assembly. If the armrest slide assembly must also be replaced then the detector body must be opened as described in Section 3.1 -...

  • Page 51: Battery Lid Replacement

    F3Ci Service Manual _______________________________________________________________________________________________________________________ 3.8.1 Battery Lid Replacement Open the detector body as described in Section 3.1 - Opening the Detector Body. Once completed: Note The battery lid can be replaced without opening the detector body if the tether is unscrewed from the battery lid.

  • Page 52: Detector Body

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Detector Body The detector body is not a line replaceable unit. The following assemblies within the detector body are line replaceable units and are available as service kits: 3004-0054 Switches kit • 3004-0056 Wiring Loom Handle Socket Kit •...
  • Page 53 F3Ci Service Manual _______________________________________________________________________________________________________________________ Identify the ribbon cable connector on the main PCB which connects to the switches. • Lift open the locking bails on the ribbon cable connector this allows the ribbon cable • to be removed and inserted.
  • Page 54 F3Ci Service Manual _______________________________________________________________________________________________________________________ Take note of the orientation of the switches and the ribbon cable and use a 10mm • spanner to remove the nut and locking washer from both switches. The control switches can now be removed and replaced.

  • Page 55: Speaker Replacement

    F3Ci Service Manual _______________________________________________________________________________________________________________________ 3.9.2 Speaker Replacement The speaker is a line replaceable unit and available as a service kit, 3004-0057 Speaker Kit. Figure 92 illustrates the major parts of the speaker. 30-29011-034 0708-0011 30-03512-982 9511-0130 30-29011-011 30-05214-001 Figure 92: Speaker Kit...

  • Page 56: Wiring Loom Earset Replacement

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Figure 93: Replacing Speaker Assembly Check speaker assembly is in good working order and the speaker cable is correctly • sealed into the speaker assembly and the E-Clip is fitted. Check the speaker O-ring is clean, lightly greased and correctly positioned in its •...

  • Page 57: Wiring Loom Handle Socket Replacement

    F3Ci Service Manual _______________________________________________________________________________________________________________________ Disconnect the wiring loom earset from the main PCB. • Unscrew the 13mm nut from the earset connector and remove the nut and the • connector dust cover. The wiring loom earset can now be removed and replaced as required. The wiring loom earset is fitted to the detector following the reverse order of the removal.

  • Page 58: Detector Body Parts

    3.9.5 Detector Body Parts This section of the manual describes the parts of the F3Ci detector in the body of the detector that are not covered by the range of line replaceable units, figures 96 to 99 illustrate these parts...
  • Page 59 F3Ci Service Manual 31-24020-982 _______________________________________________________________________________________________________________________ Screw M4x20mm 0703-0206 31-24035-982 Figure 97: Detector right side Body Right Screw M4X35 4003-0119 Screw M4x35 Torx 2705-0061 Decal 30-43000-001 4003-0118 Screw M4x20 Torx Figure 98: Detector right side 4308-0027 4007-0009 4309-0068 Figure 99: Detector body parts...
  • Page 60 F3Ci Service Manual _______________________________________________________________________________________________________________________ 0703-0203 Hinge Cover 31-24045-982 Screw M4x45skt head 0703-0205 Chassis Left (switches side) 0703-0206 Chassis Right (speaker side) 0304-0027 Rod Handle Slide 4309-0068 Seal Detector Body 4007-0009 Latch Hinge 4308-0027 Pin Handle Pivot 2703-0040 Decal Switches 2705-0061...

  • Page 61: Fault Finding Procedures

    A functional test failure can generally be repaired by replacing one or more of the line replaceable units. The F3Ci is designed so that line replaceable units can be exchanged between detectors without the need to calibrate. This means that where spare parts are not available and more than one detector is faulty, then parts from one detector can be used to make another serviceable.
