Earset Cable
Assembly
internal
Identify the ribbon cable connector on the main PCB which connects to the switches.
•
Lift open the locking bails on the ribbon cable connector this allows the ribbon cable
•
to be removed and inserted.
Gently slide the ribbon cable out of the connector.
•
1. Identify Ribbon Cable
Slide the main PCB away from the battery assembly until the ends of the main PCB
•
disengage from the slots in the detector body near the battery compartment.

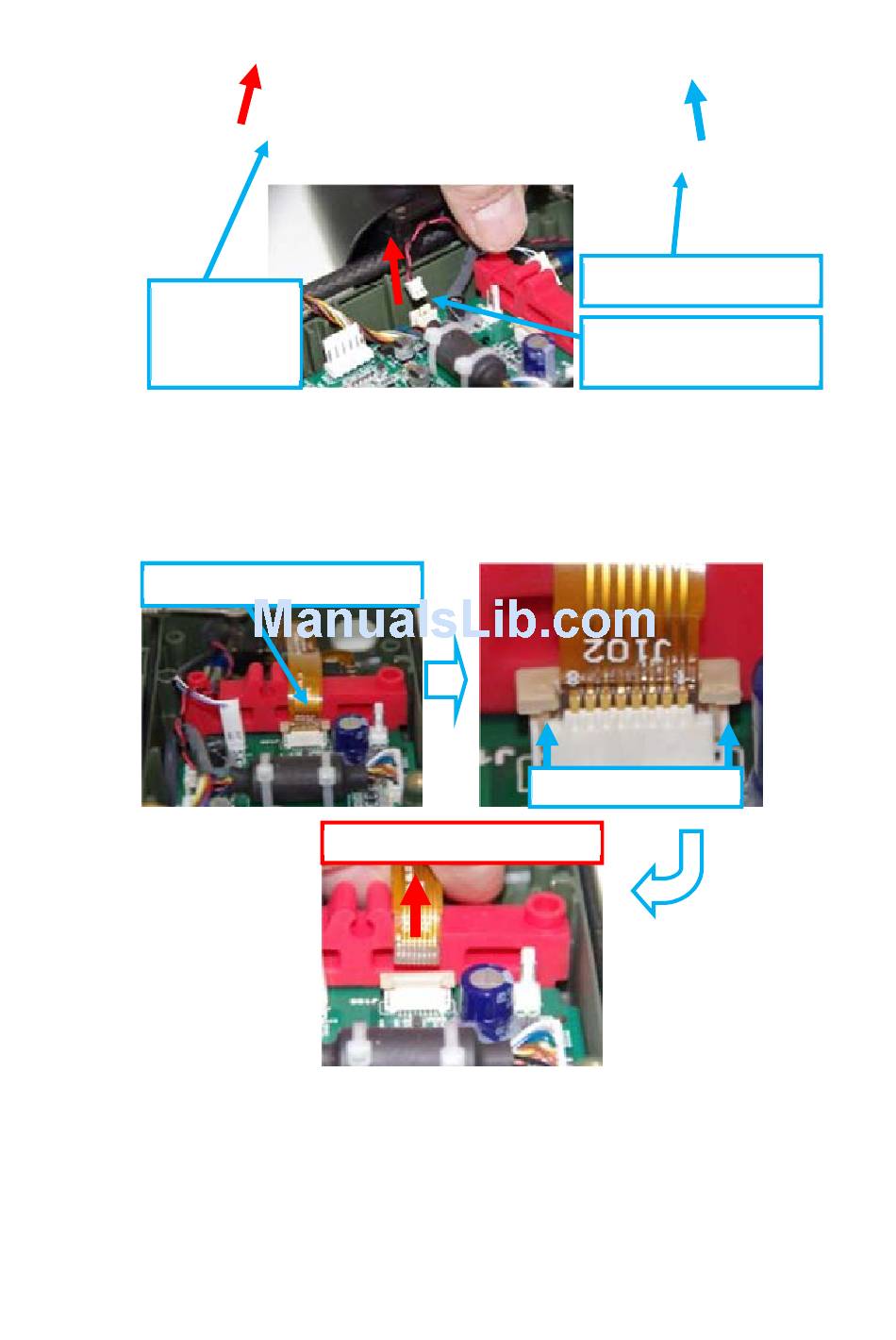

Figure 33: Disconnect Connectors on main PCB
3. Remove Ribbon Cable
Figure 34: Disconnect the Ribbon Cable
2. Open Locking Bail
25
F3Ci Service Manual
Wiring Loom Handle
Vibration Motor
Connector
