Minelab F3Ci Service Manual page 54

_______________________________________________________________________________________________________________________
Take note of the orientation of the switches and the ribbon cable and use a 10mm
•
spanner to remove the nut and locking washer from both switches.
c. The control switches can now be removed and replaced.
Use care handling the control switches and the flexible ribbon cable. These are internal
components and will be easily damaged if they are forced or misaligned.
Do not use a soldering iron on the switches or the flexible ribbon cable.
Check each control switch has a clean and lightly greased O-ring correctly positioned
•
on the mounting face.
Carefully align the control switches and the flexible ribbon cable within the detector
•
body as illustrated in Figure 91.
Insert the control switches into the detector body, fit the lock washer and 10mm nut.
•
Fit the switch knob then the spring followed by the bush and screw to the control
•
switch.
Check the switch knobs move through their arc of movement with end stops.
•
Identify the connector on the interface PCB that mates with the flexible ribbon cable
•
of the control switches. Open the connector locking bail (slide out). As shown in
Figure 89.
Insert the ribbon cable into the connector on the interface PCB then close the locking
•
bail on the connector. Also see
Reassemble the detector by closing the detector body as described in Section
d.
Closing the Detector
O-Ring

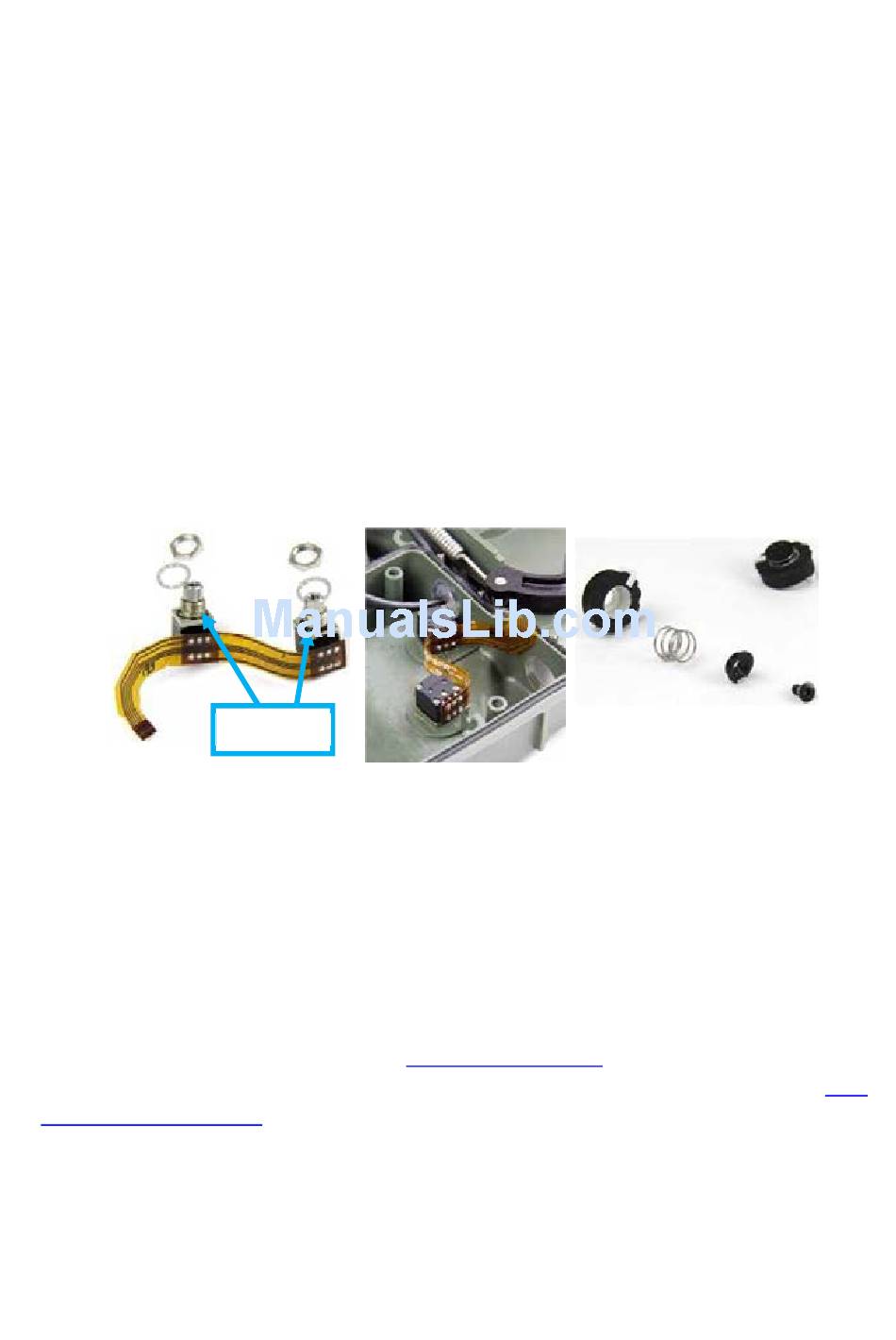

Figure 91: Control Switches
Body.
Note
Note
Installing the Main PCB, figure 44.
54
F3Ci Service Manual
3.2 -
