Insert a flat tip screwdriver into the slot underneath the cap shaft and lift and
•
remove the cap shaft.
Slide the coil out and off the lower shaft, exposing the coil cable.
•
Push the coil cable connector into the shaft hinge whilst gently pulling the coil cable
•
out of the end of the lower shaft. Once the coil connector has passed through the
shaft hinge it should slide out easily from the shafts. Do not force t e coil cable or
coil connector.
The coil can now be removed or replaced as required. To fit the coil to the detector refer
b.
to section 3.4.6 - Fitting the

3.4.3 Coil Pivot.

The coil pivot is a line replaceable unit and Figure 55 illustrates the major parts. Each part
a.
of the coil pivot can be ordered individually or as a 3004-0130 Coil Pivot Kit which includes all
parts shown in Table 3.

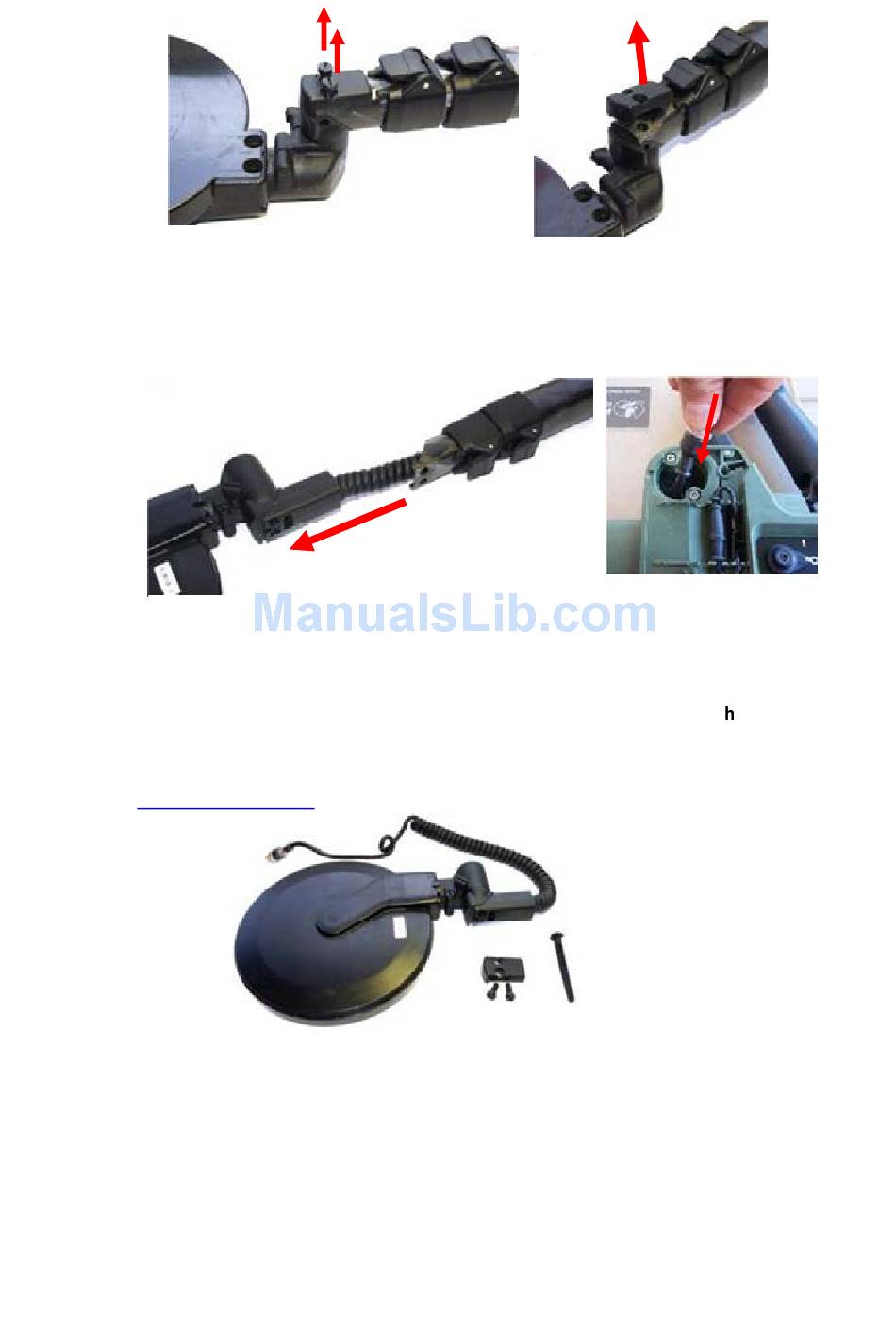

Figure 49: Removing Screws from Lower Shaft
Figure 50: Sliding the Coil Off the Shaft
Coil.
Figure 51: Coil Assembly.
