The body of the detector is now opened revealing the internal components which can
c.
now be replaced as required.
Closin t e Detector Body
3.2
a. The following procedure outlines the steps involved in closing and resealing the detector
body:
Ensure all parts are present, in good working order and lay the detector body on its
•
left side.
Thread the coil cable through the detector hinge and position the upper shaft into
•
the detector body.
Carefully turn the detector body over so that it is on its right side. Check the coil
•
connector nut is tight.
Attach the coil connector to the socket and tighten the coil connector as tight as
•
possible with fingers. Figure 17.

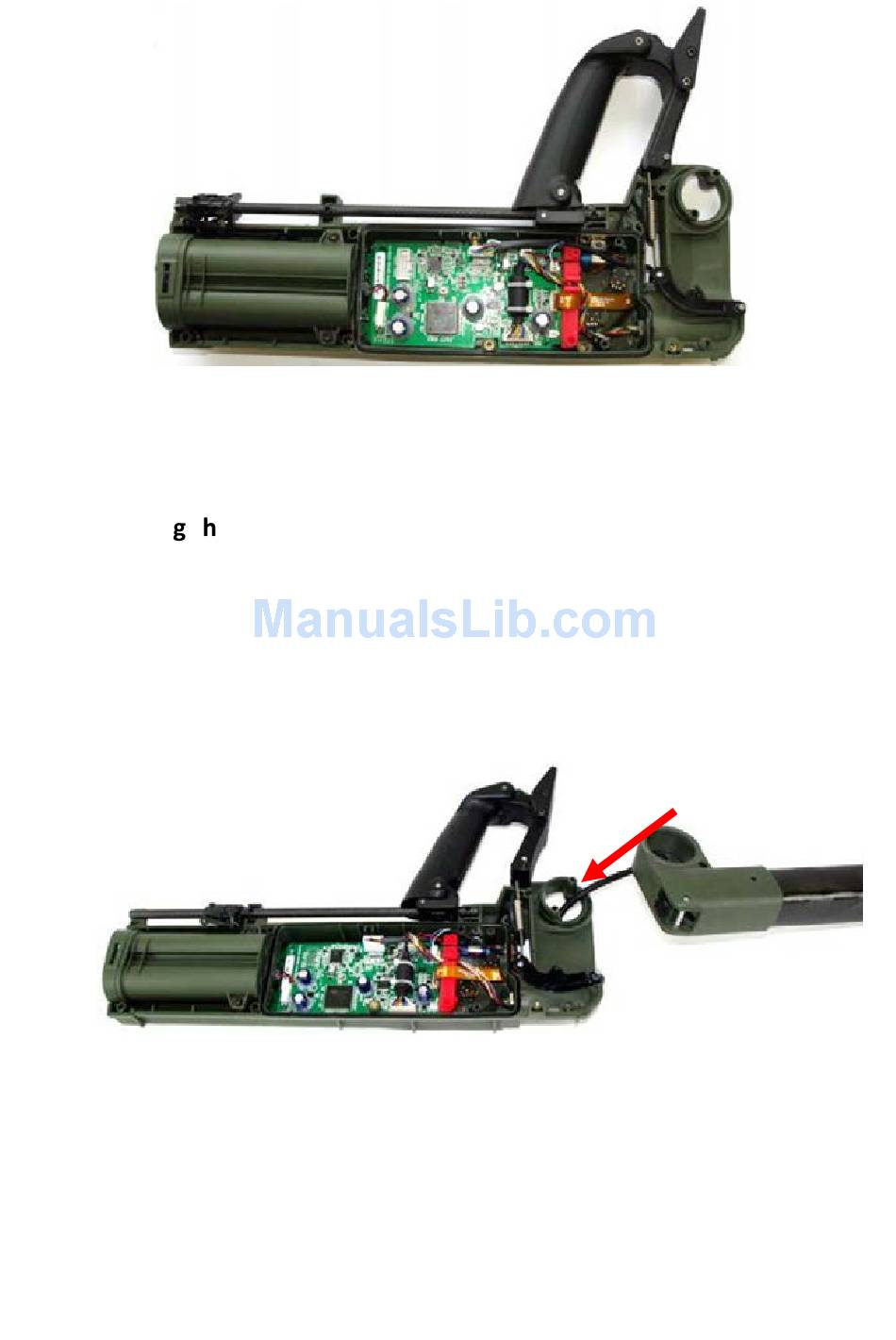

Figure 15: Open Detector Body
Figure 16: Threading Coil Cable and Attaching Shafts
16
F3Ci Service Manual
