Minelab F3Ci Service Manual page 17

_______________________________________________________________________________________________________________________
Fit the coil cable into the cable router and check that the loop of coil cable within the
•
shaft hinge is positioned so that it will not be trapped when the detector body is
closed. Refer to Figure 20.
Coil Plug

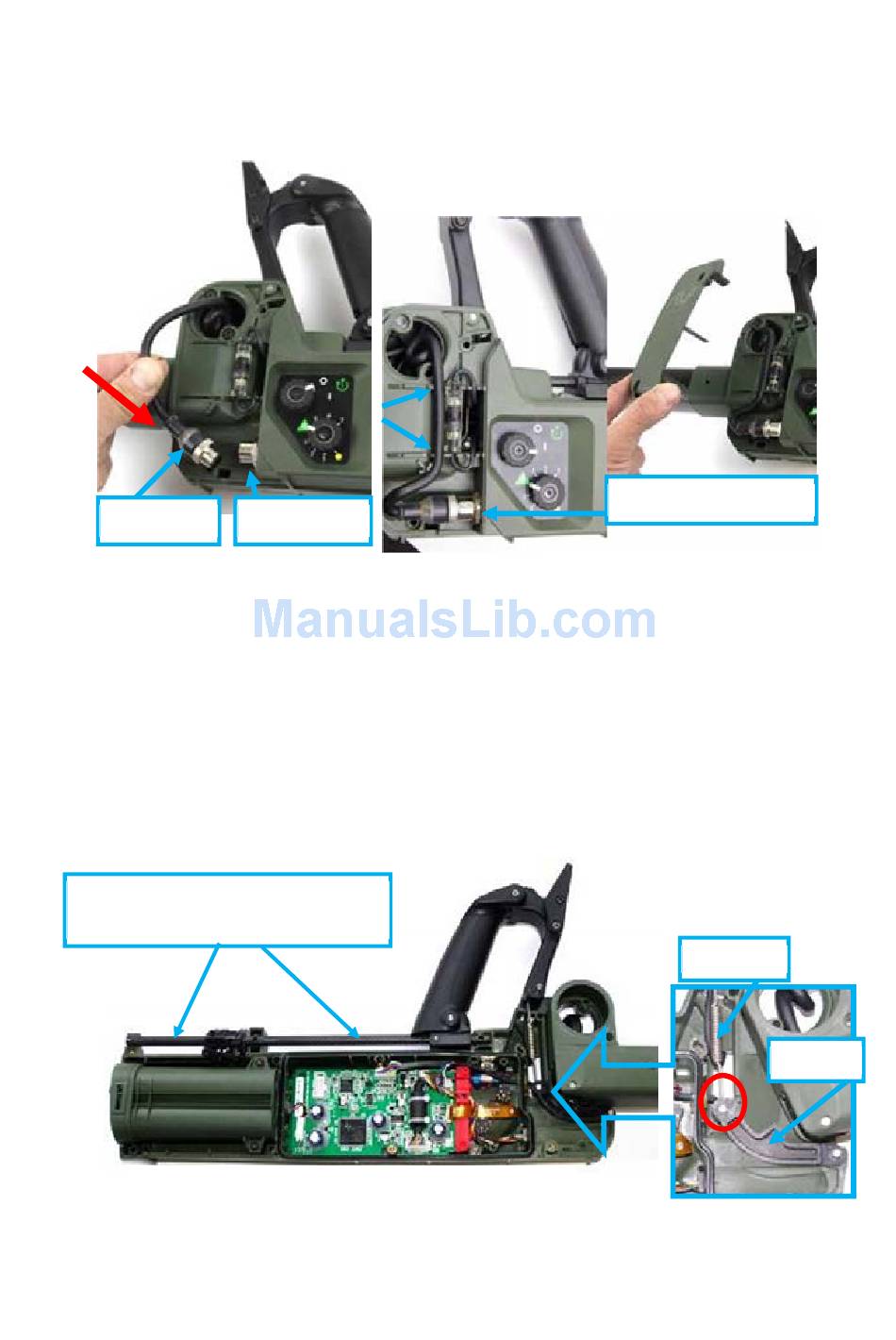

Figure 17: Connecting Coil Cable and Removing Hinge Cover
Fit the hinge cover but Do Not fit the two hinge cover screws. Turn the detector body
•
over so it is on its left side.
Check the detector handle is correctly positioned on the detector as well as the
•
armrest slide. The rod detector slide must be positioned through the handle and
armrest slide. The holes in the rod detector slide must align with the holes in the
detector body.
Check that the latch hinge and spring latch hinge are correctly positioned into the left
•
side of the detector body with the latch connected to the spring.
Rod Handle Slide passing through
Armrest Slide and Handle
Figure 18: Latch Hinge and Spring Latch Hinge
Coil Socket
Note
17
F3Ci Service Manual
Coil Connector Nut
Spring
Latch
