Gently lift the main PCB out of the detector body.
•

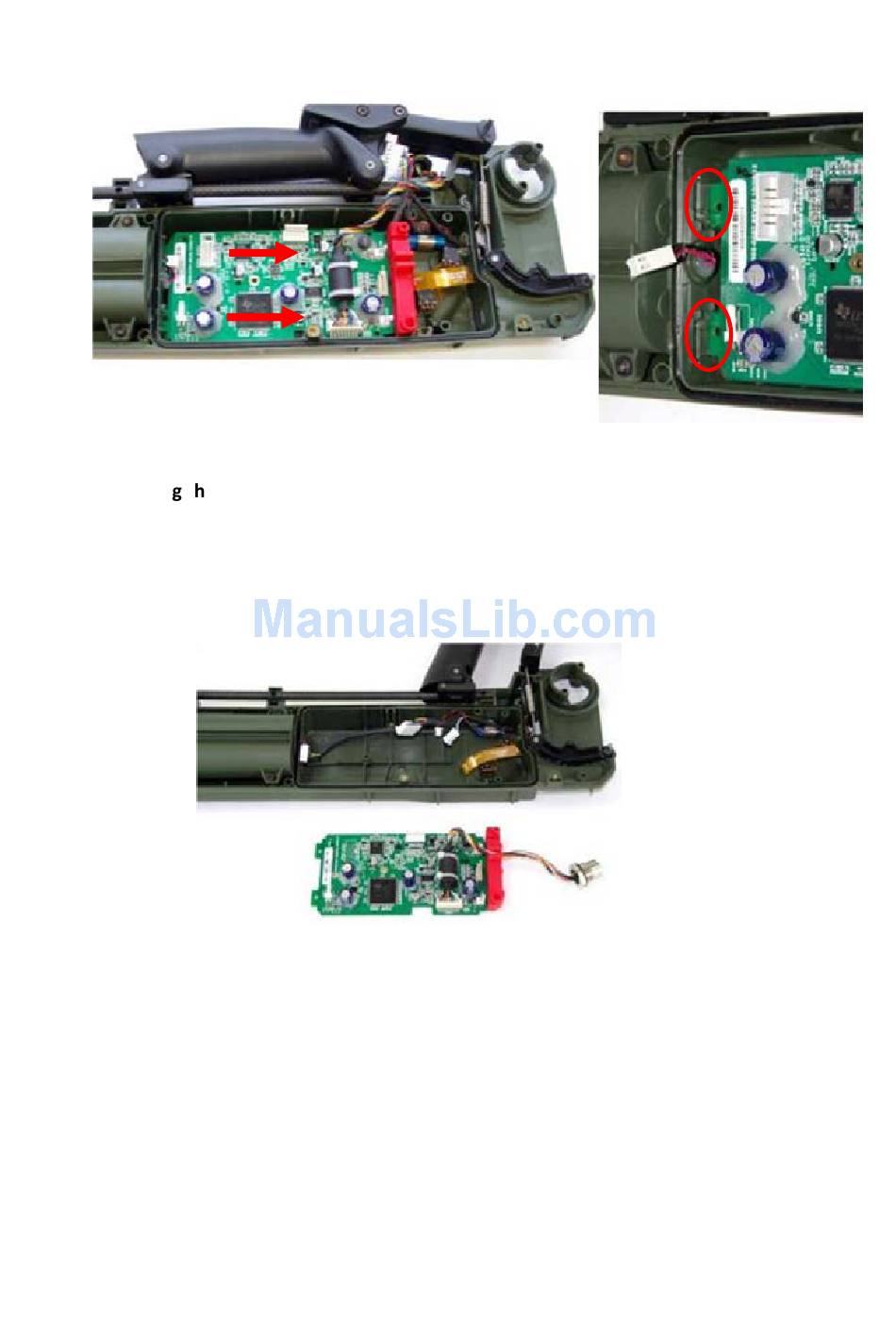

Figure 35: Lifting Main PCB Out of Detector
b. The main PCB can now be replaced.
3.3.2 Installin t e Main PCB.
a. Having opened the detector body and removed the main PCB, install a serviceable main
PCB as follows:
Place the detector on its left side in a clean well lit area.
•
Lower the main PCB into the detector, gently position the main PCB flat inside the
•
detector body.
Gently slide the main PCB rearward towards the battery compartment so that the
•
ends of the main PCB insert into the locating slots in the detector body.
Figure 36: Main PCB
