3.4.4 Removin Coil Pivot
a. To remove the coil pivot, first remove the coil as described in section
the Coil. Once completed:
Remove the thumb screw and screw (Nylon M6x29).
•
Figure 53: Removing Two Screws
The two screws can be used to adjust the friction of the coil pivot movement.
Push the pin coil pivot out with a pin punch or hex key driver and remove the pin coil
•
pivot.

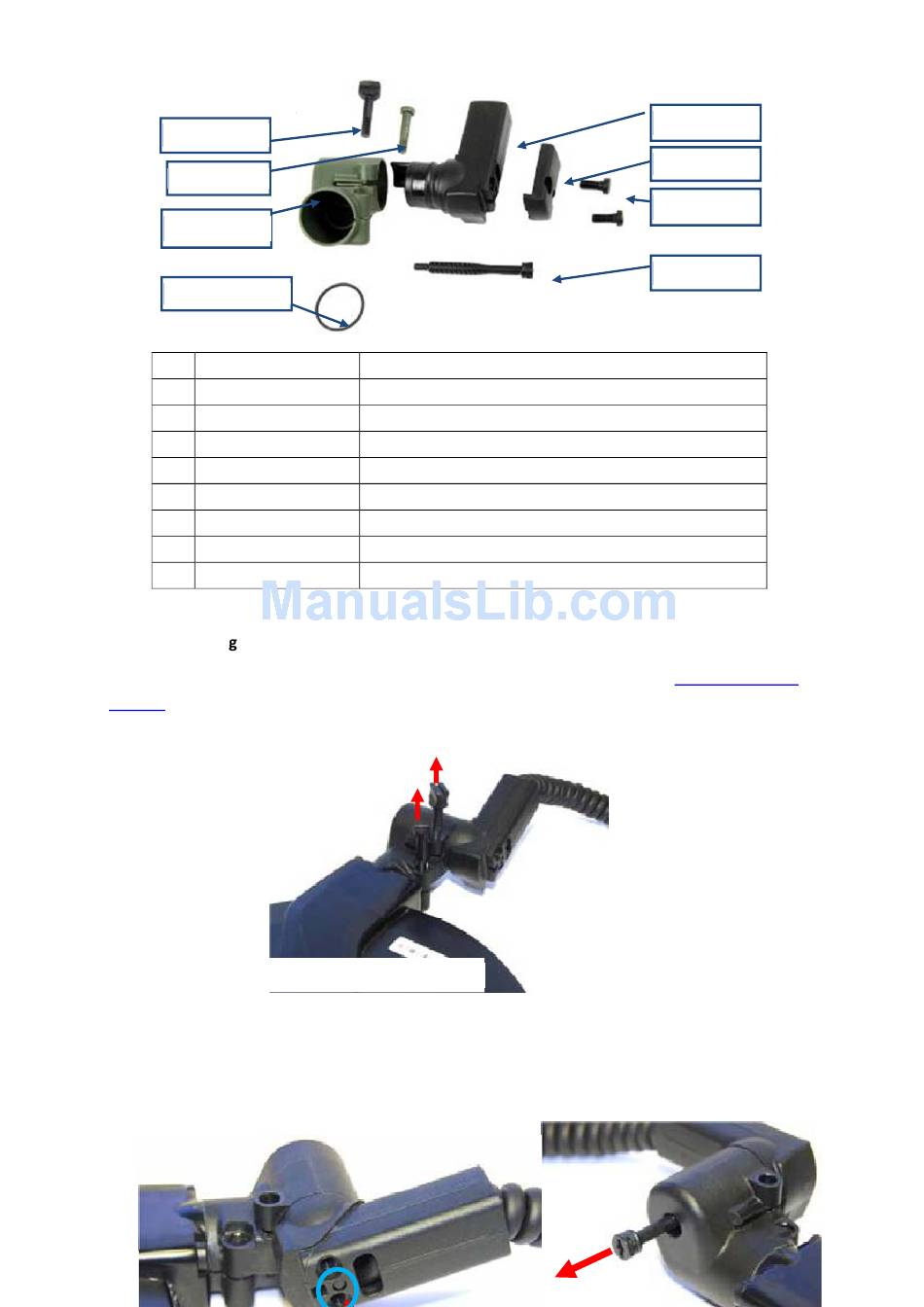

Figure 52: Coil Pivot Kit Parts
Coil Pivot Kit, contains all items in this Table
O-Ring 25mm ID x2
Pivot Coil Yoke
Pivot Shaft
Screw Nylon M6x29
Thumb Screw Nylon 1/4BSW
Pin Coil Pivot
Screw Nylon M6x14
Cap Shaft
Table 3: Coil Pivot Kit Parts
Note
34
