Analog Devices AD9361 Reference Manual page 96

UG-570
1R1T, DDR, TDD, SINGLE PORT, 0x010 = 0xC8, 0x011 = 0x00, 0x012 = 0x2C
FB_CLK
TX _FRAME
0 T1_I[11:0]
P0_D[11 :0]
P1_D[11 :0]
1R1T, DDR, TDD, SINGLE PORT, 0x010 = 0xC8, 0x011 = 0x00, 0x012 = 0x0C
FB_CLK
TX _FRAME
0 T1_I[11:0]
P0_D[11 :0]
P1_D[11 :0]
1R2T, DDR, TDD, SINGLE PORT, 0x010 = 0xC8, 0x011 = 0x00, 0x012 = 0x0C
FB_CLK
TX _FRAME
0 T1_I[11:0] T1_Q[11:0]
P0_D[11 :0]
P1_D[11 :0]
2R2T, DDR, TDD, SINGLE PORT, 0x010 = 0xC8, 0x011 = 0x00, 0x012 = 0x0C
FB_CLK
TX _FRAME
0 T1_I[11:0] T1_Q[11:0]
P0_D[11 :0]
P1_D[11 :0]
2R2T, DDR, TDD, SINGLE PORT, 0x010 = 0xC8, 0x011 = 0x00, 0x012 = 0x0C
FB_CLK
TX _FRAME
0 T1_I[11:0] T1_Q[11:0] T2_I[11:0] T2_Q[11:0] T1_I[11:0] T1_Q[11:0] T2_I[11:0] T2_Q[11:0] T1_I[11:0] T1_Q[11:0] T2_I[11:0]
P0_D[11 :0]
P1_D[11 :0]
T1_Q[11:0] T1_I[11:0]
T1_Q[11:0] T1_I[11:0]
DNC DNC T1_I[11:0] T1_Q[11:0]
DNC DNC T1_I[11:0] T1_Q[11:0]

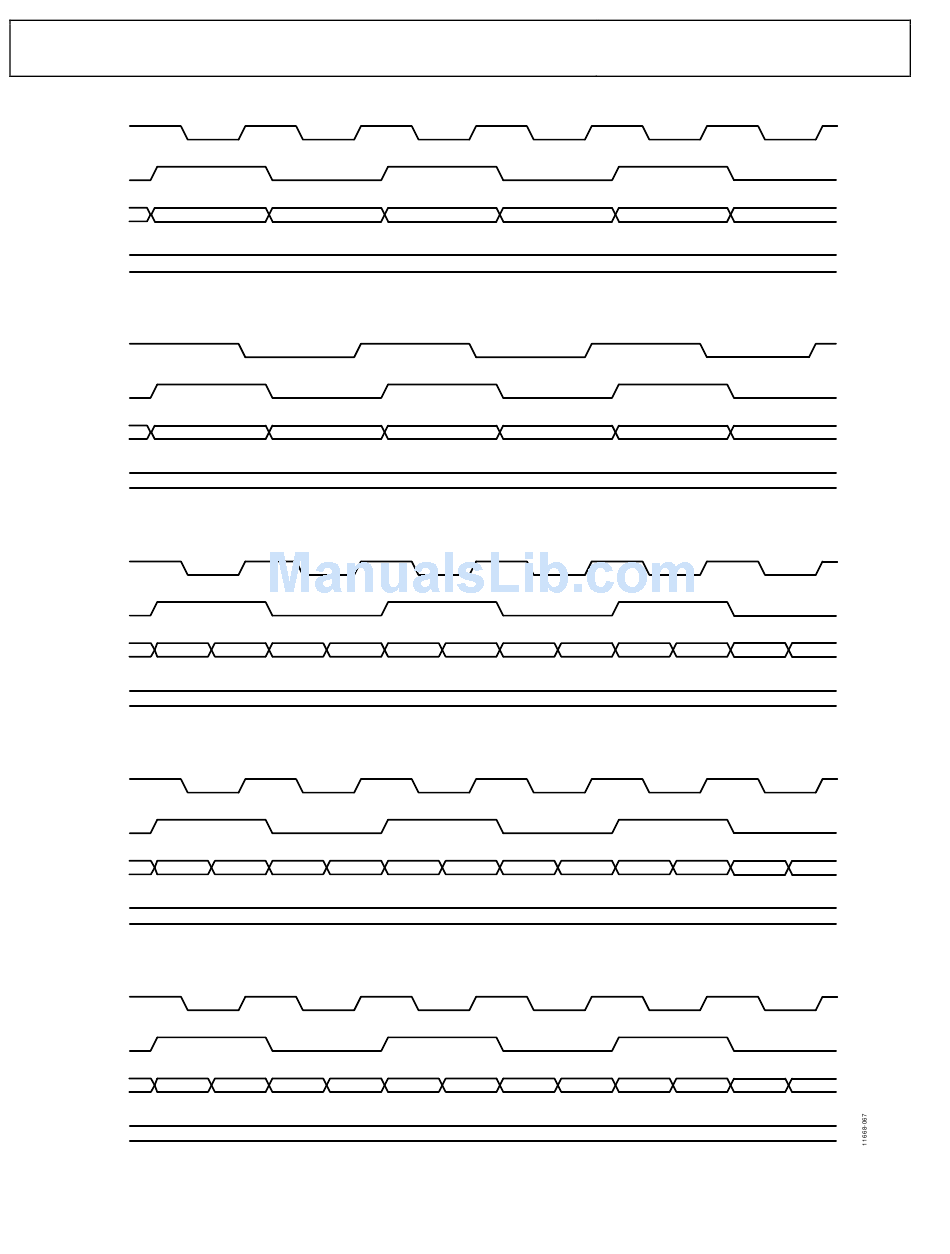

Figure 66. Transmitter Data Path, Single Port TDD (DNC = Do Not Care)
Rev. A | Page 96 of 128
