Analog Devices AD9695 Quick Start Manual

Quick Start Guide for using the Triggered Capture Feature of the ADS7-V2
Capture Board with the AD9695 ADC Evaluation Board

TYPICAL SETUP

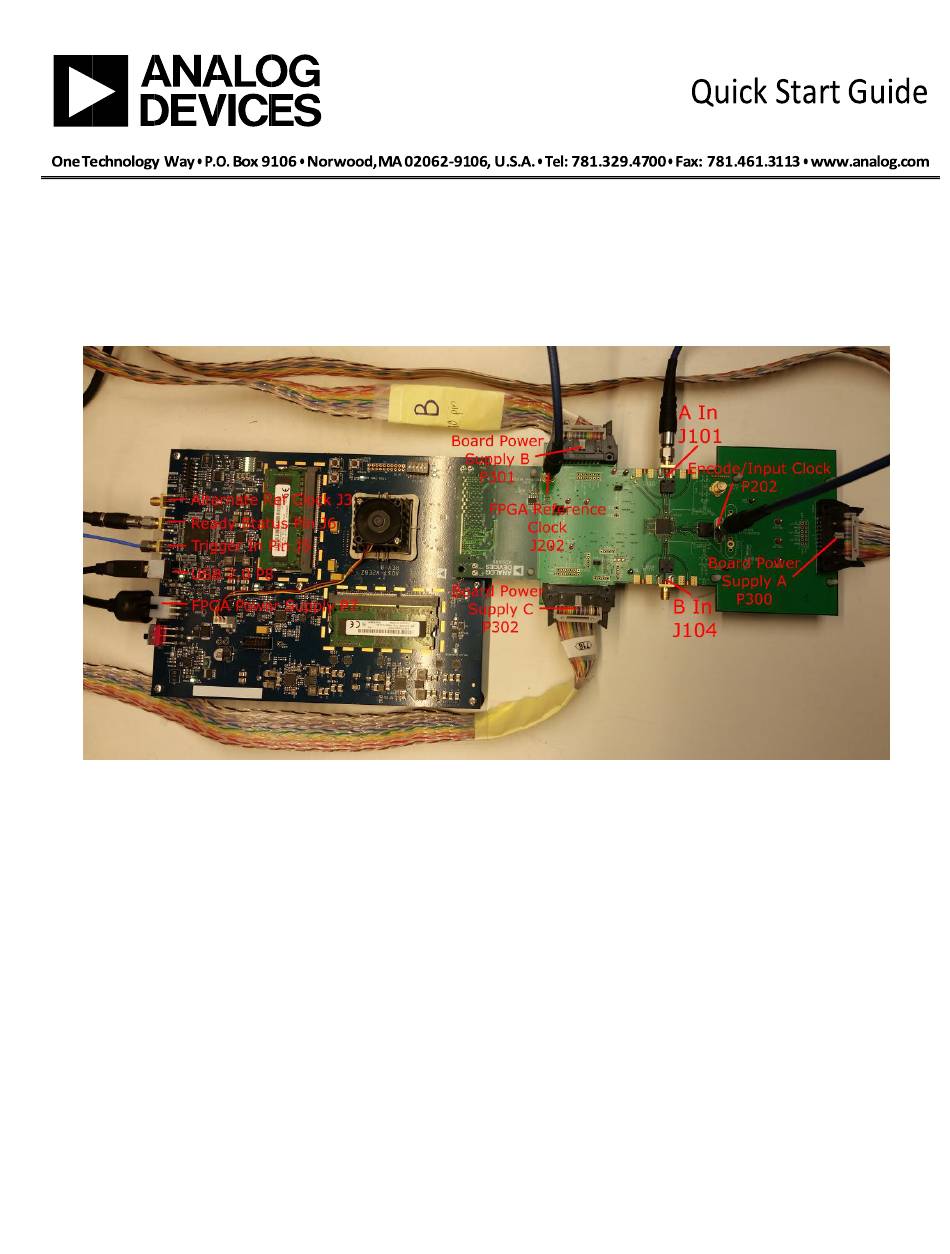

Figure 1. AD9695-1300EBZ Evaluation Board and ADS7-V2 Data Capture Board

EQUIPMENT NEEDED


Data Capture Evaluation Board
o
ADS7-V2 Data Capture Board
o
12VDC Power Supply and USB2.0 Cable
o
External Pulse Generator (Such as Stanford Research Systems DS345)

ADC Evaluation Board
o
AD9695 Evaluation Board, or others in family (Such as AD9689 or AD9 208)
o
External Power Supply and Three 10-pin Ribbon Cables
o
External Input Clock (Such as Rohde&Schwarz SMA100A)
o
External Reference Clock (Such as Stanford Research Systems SG384)
o
External Signal Input (Any signal generator, such as Rohde&Schwarz SMA100A)

HELPFUL DOCUMENTS


AD9695 Evaluation Board User Guide

VisualAnalog Converter Evaluation Tool User Manual, AN-905

High Speed ADC SPI Control Software User Manual, AN-878

Interfacing to High Speed ADCs via SPI, AN-877
