AD9361 Reference Manual
Rx1C SERIES EQUVALENT DIFFERENTIAL IMPEDANCE
FREQUENCY (70MHz TO 6GHz)
Rx1C
450
400
350
300
250
200
150
100
50
0

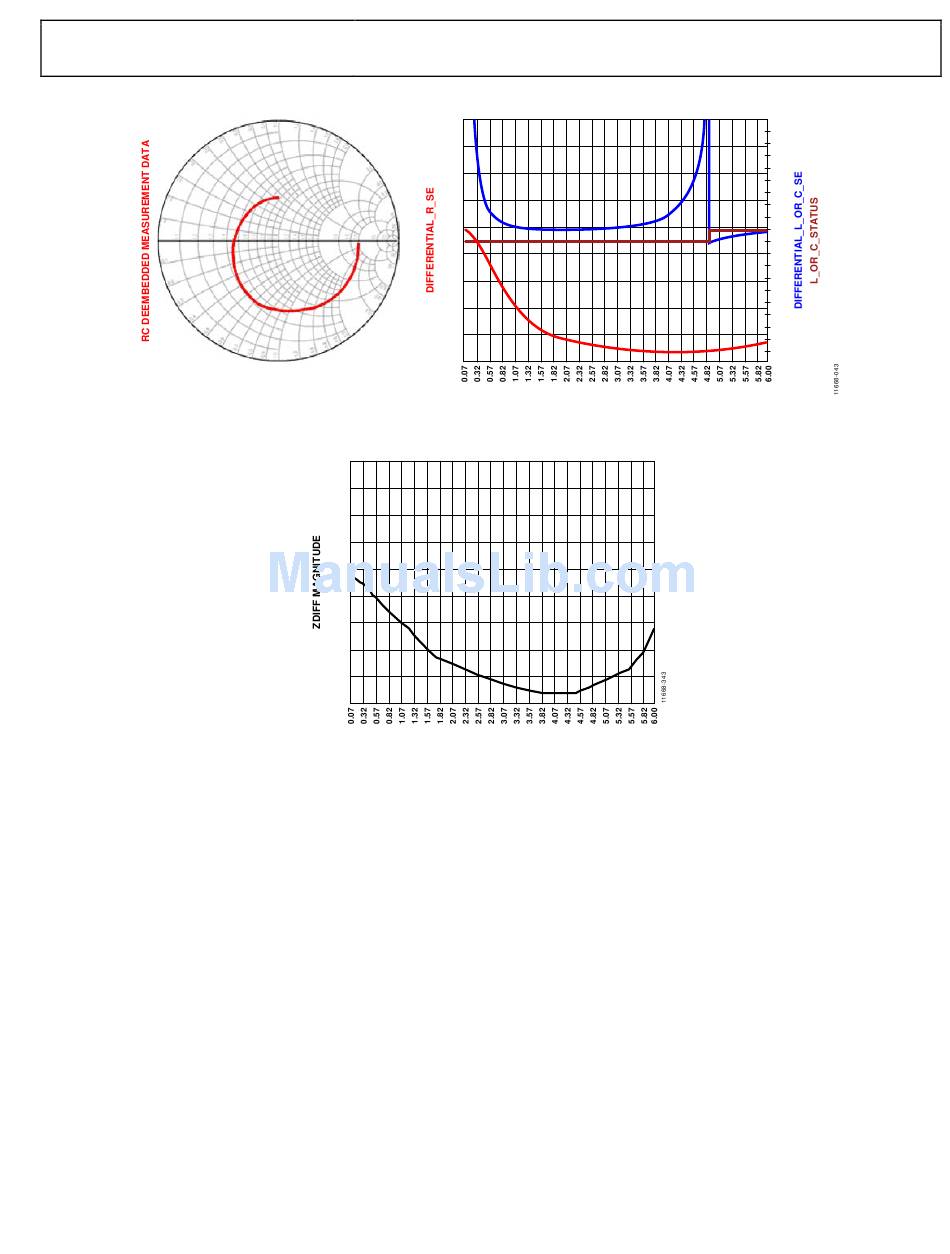

Figure 42. AD9361 Rx1C Input Differential Impedance
450
400
350
300
250
200
150
100
50
0
FREQUENCY (GHz)
Figure 43. AD9361 Rx1C Input Differential Impedance Magnitude
