Evaluating the

FEATURES

Full featured evaluation board for the
SPI interface for setup and control
Support LVDS output mode option
External or on-board oscillator options
Balun/transformer or amplifier input drive options
Switching power supply
VisualAnalog™ and SPIController software interfaces

EQUIPMENT NEEDED

Analog signal source and antialiasing filter
Sample clock source (if not using the on-board oscillator)
Two switching power supplies (6.0 V, 2.5 A),
CUI EPS060250UH-PHP-SZ, provided
PC running 32-bit Windows® XP, Window Vista, or Windows 7
USB 2.0 port, recommended (USB 1.1-compatible)
AD9286
evaluation board
HSC-ADC-EVALCZ
FPGA-based data capture kit

SOFTWARE NEEDED

VisualAnalog
SPIController
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD9286
AD9286

TYPICAL MEASUREMENT SETUP

9286CE01
REV A
AD9286
9286CE01A

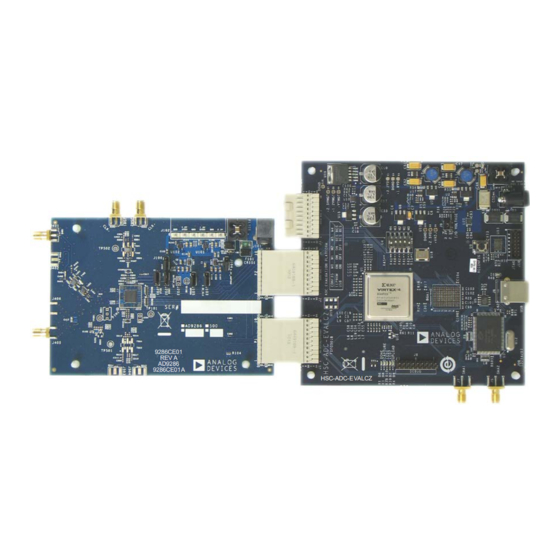

Figure 1.
AD9286
Evaluation Board and
Rev. A | Page 1 of 24
AD9286-500EBZ User Guide
Analog-to-Digital Converter

DOCUMENTS NEEDED

AD9286
data sheet
HSC-ADC-EVALCZ
data sheet
AN-905
Application Note, VisualAnalog Converter Evaluation
Tool Version 1.0 User Manual
AN-878
Application Note, High Speed ADC SPI Control Software
AN-877
Application Note, Interfacing to High Speed ADCs via SPI
AN-835
Application Note, Understanding High Speed ADC
Testing and Evaluation

GENERAL DESCRIPTION

This user guide describes the
which provides all of the support circuitry required to operate
the
AD9286
in its various modes and configurations. The
application software used to interface with the device is also
described.
The
AD9286
data sheet provides additional information and
should be consulted when using the evaluation board. All
documents and software tools are available at the
For additional information or questions, send an email to
highspeed.converters@analog.com.
HSC-ADC-EVALCZ
HSC-ADC-EVALCZ
Data Capture Board
UG-191
AD9286
evaluation board,
FIFO
page.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD9286-500EBZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Analog Devices AD9286-500EBZ

  • Page 1: Features

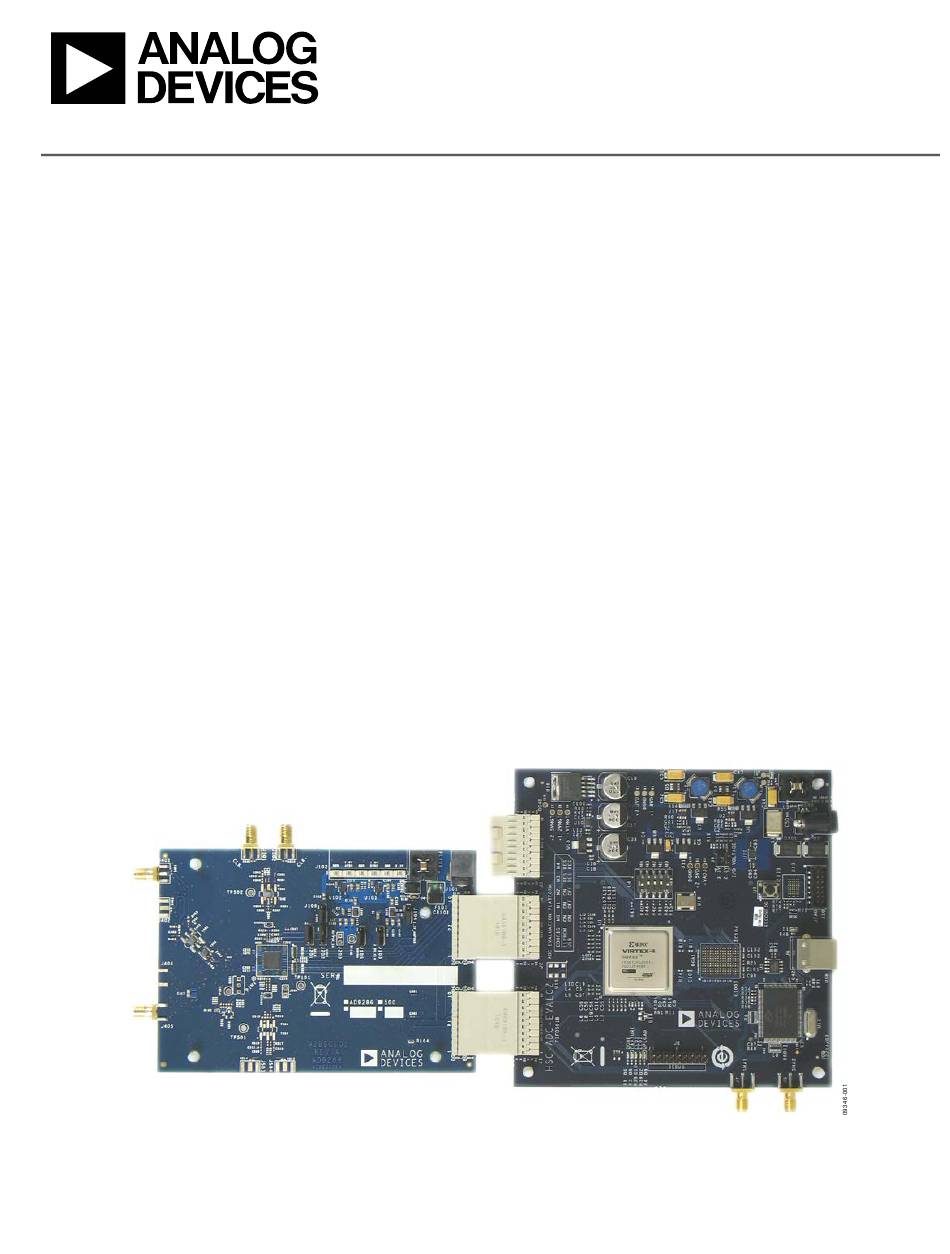

    AD9286-500EBZ User Guide UG-191 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the AD9286 Analog-to-Digital Converter FEATURES DOCUMENTS NEEDED Full featured evaluation board for the AD9286 AD9286...
