One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the AD9272/AD9273 for Ultrasound Systems

FEATURES

Full featured evaluation board for the AD9272/AD9273
SPI and alternate clock options
Internal and external reference options
VisualAnalog and SPI Controller software interfaces

EQUIPMENT NEEDED

Analog signal source and antialiasing filter
2 switching power supplies (6.0 V, 2.5 A) CUI EPS060250UH-
PHP-SZ, provided
Linear bench top dc voltage source (0 V to 1.6 V), not
required for CW Doppler mode
PC running Windows 98 (2nd ed.), Windows 2000, Windows ME,
or Windows XP
USB 2.0 port, recommended (USB 1.1 compatible)
AD9272/AD9273 evaluation board
HSC-ADC-EVALCZ FPGA-based data capture kit
For CW Doppler mode: spectrum analyzer
For CW Doppler mode: dc voltage source: +5 V w/100 mA each

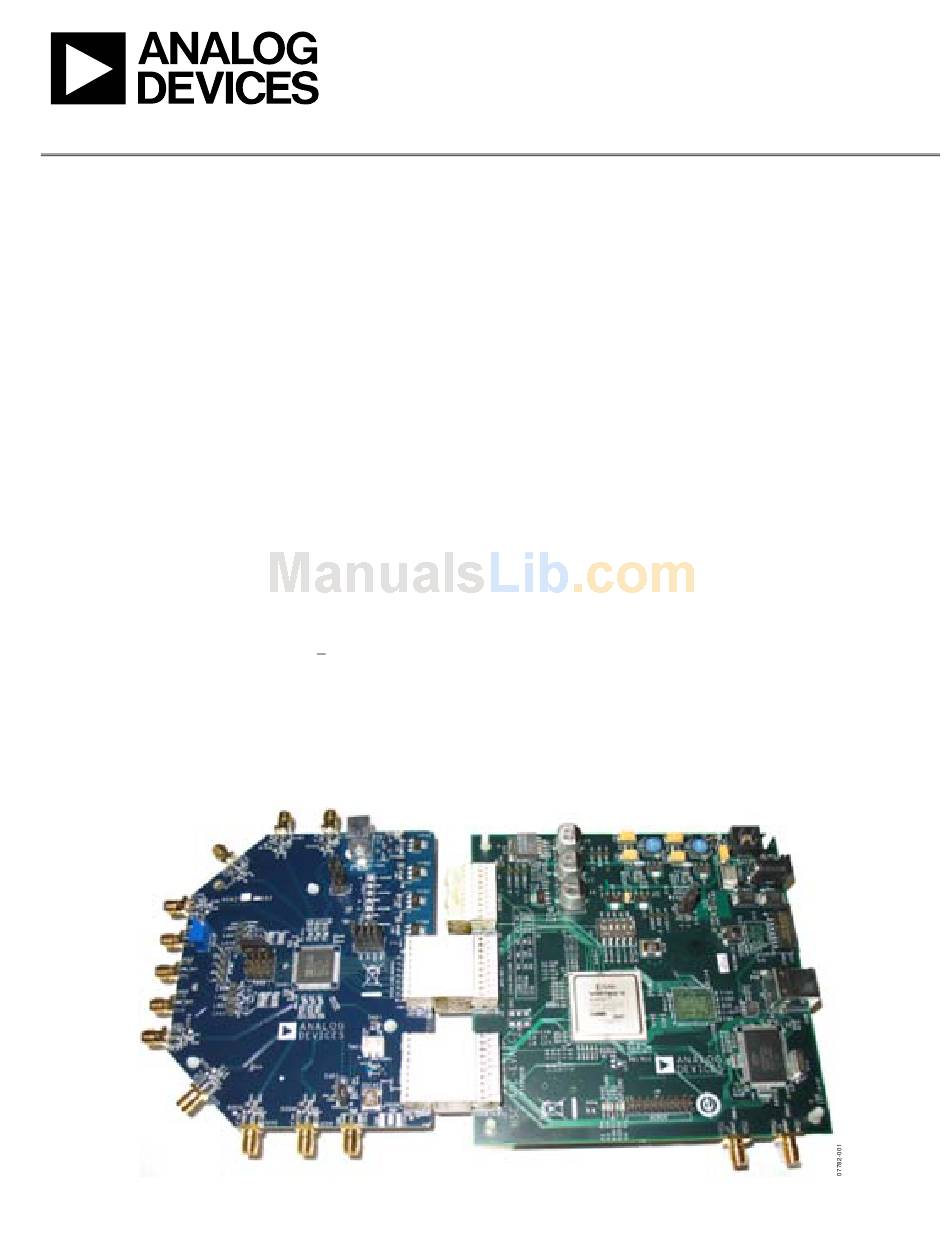

Figure 1. AD9272-65EBZ/AD9272-80KITZ/AD9273-50EBZ Evaluation Board and HSC-ADC-EVALCZ Data Capture Board
Please see the last page for an important warning and disclaimers.
Evaluation Board User Guide

DOCUMENTS NEEDED

AD9272 and AD9273 data sheets
HSC-ADC-EVALCZ data sheet, High Speed Converter
Evaluation Platform (FPGA-based data capture kit)
AN-905 Application Note, VisualAnalog Converter Evaluation
Tool Version 1.0 User Manual
AN-878 Application Note, High Speed ADC SPI Control Software
AN-877 Application Note, Interface to High Speed ADCs via SPI

SOFTWARE NEEDED

VisualAnalog
SPI Controller

GENERAL DESCRIPTION

This document describes the AD9272/AD9273 evaluation
board, which provides all of the support circuitry required to
operate the AD9272/AD9273 in their various modes and
configurations. The application software used to interface with
the devices is also described.
The AD9272/AD9273 data sheet, available at www.analog.com,
provides additional information and should be consulted when
using the evaluation board. All documents and software tools
are available at http://www.analog.com/fifo. For any questions,
send an email to highspeed.converters@analog.com.

TYPICAL MEASUREMENT SETUP

Rev. 0 | Page 1 of 24
UG-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD9272 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Analog Devices AD9272

  • Page 1: Features

    For CW Doppler mode: spectrum analyzer For CW Doppler mode: dc voltage source: +5 V w/100 mA each Figure 1. AD9272-65EBZ/AD9272-80KITZ/AD9273-50EBZ Evaluation Board and HSC-ADC-EVALCZ Data Capture Board Please see the last page for an important warning and disclaimers. Evaluation Board User Guide...
  • Page 2: Table Of Contents

    UG-001 TABLE OF CONTENTS Features ... 1 Equipment Needed ... 1 Documents Needed ... 1 Software Needed ... 1 General Description ... 1 Typical Measurement Setup ... 1 Revision History ... 2 Evaluation Board Hardware ... 3 Power Supplies ... 3 Input Signals ...
  • Page 3: Evaluation Board Hardware

    Figure 2 shows the typical bench characterization setup used to evaluate the ac performance of the AD9272/AD9273. It is critical that the signal sources used for the analog input and clock have very low phase noise (<1 ps rms jitter) to realize the optimum performance of the signal chain.
  • Page 4 UG-001 WALL OUTLET 100V TO 240V AC 47Hz TO 63Hz SWITCHING POWER SUPPLY SWITCHING POWER SUPPLY SIGNAL SYNTHESIZER ANALOG INPUT SPECTRUM ANALYZER CW OUTPUT AGILENT POWER SUPPLY GAIN CONTROL INPUT Evaluation Board User Guide 6V DC 2A MAX SIGNAL SYNTHESIZER OPTIONAL CLOCK SOURCE Figure 2.
  • Page 5: Default Operation And Jumper Selection Settings

    DEFAULT OPERATION AND JUMPER SELECTION SETTINGS This section explains the default and optional settings or modes allowed on the AD9272/AD9273 Rev. A evaluation board. Power Circuitry Connect the switching power supply that is supplied in the evaluation kit between a rated 100 V ac to 240 V ac wall outlet at 47 Hz to 63 Hz and P701.
  • Page 6 UG-001 Evaluation Board User Guide between the AD9272/AD9273 CWDx± outputs and the AD8339 inputs. DOUTx+, DOUTx− If an alternative data capture method to the setup described in Figure 2 is used, optional receiver terminations, R701 to R710, can be installed next to the high speed backplane connector.
  • Page 7: Evaluation Board Software Quick Start Procedures

    Evaluation Board User Guide EVALUATION BOARD SOFTWARE QUICK START PROCEDURES This section provides quick start procedures for using the AD9272/ AD9273 either on the evaluation board or in a system level design. Both the default and optional settings are described.
  • Page 8 In the Global tab of the SPI Controller, find the CHIP GRADE(2) box. Use the drop-down box to select the correct speed grade, if necessary. See the AD9272 or AD9273 data sheet, the AN-878 Application Note, and the AN-877 Application Note for reference.
  • Page 9 Figure 10. SPI Controller, CHIP GRADE(2) Box In the ADCBase 0 tab of the SPI Controller, find the HIGHPASS(2B) box. Click Manual Tune to calibrate the antialiasing filter. See the AD9272 or AD9273 data sheet, the AN-878 Application Note, and the AN-877 Application Note for reference.
  • Page 10: Using The Integrated Crosspoint Switch (Cw Doppler Mode)

    Note that the CWD0±/CWD1±/CWD6±/CWD7± outputs are configured and biased to interface with the evaluation board. The AD9272/AD9273 is specially designed to snap onto the AD8339 evaluation board to allow the user to evaluate a larger portion of this common signal chain. For detailed instructions about enabling this function, send an email to highspeed.converters@analog.com.
  • Page 11 Evaluation Board User Guide Figure 18. SPI Controller, MODES(8) Box In the ADC x tab of the SPI Controller, where x is the channel to which an analog input is applied, find the CROSSPOINT SWITCH(2D) box. From the Crosspoint Switch Modes drop-down box, select the cwd2p/n option (see Figure 19).
  • Page 12: Evaluation Board Schematics And Artwork

    UG-001 Evaluation Board User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK 07782-005 Figure 21. Evaluation Board Schematic, DUT Analog Input Circuits Rev. 0 | Page 12 of 24...
  • Page 13 Evaluation Board User Guide UG-001 07782-006 Figure 22. Evaluation Board Schematic, DUT Analog Input Circuits (Continued) Rev. 0 | Page 13 of 24...
  • Page 14 UG-001 Evaluation Board User Guide 07782-007 Figure 23. Evaluation Board Schematic, DUT, VREF, and Decoupling Rev. 0 | Page 14 of 24...
  • Page 15 Evaluation Board User Guide UG-001 07782-008 Figure 24. Evaluation Board Schematic, Clock, SPI, and Gain Circuits Rev. 0 | Page 15 of 24...
  • Page 16 UG-001 Evaluation Board User Guide 07782-009 Figure 25. Evaluation Board Schematic, Power Supply, CW Doppler, Digital Output Interface Rev. 0 | Page 16 of 24...
  • Page 17 Evaluation Board User Guide UG-001 Figure 26. Evaluation Board Layout, Top Side Rev. 0 | Page 17 of 24...
  • Page 18 UG-001 Evaluation Board User Guide Figure 27. Evaluation Board Layout, Ground Plane (Layer 2) Rev. 0 | Page 18 of 24...
  • Page 19 Evaluation Board User Guide UG-001 Figure 28. Evaluation Board Layout, Power Plane (Layer 3) Rev. 0 | Page 19 of 24...
  • Page 20 UG-001 Evaluation Board User Guide Figure 29. Evaluation Board Layout, Power Plane (Layer 4) Rev. 0 | Page 20 of 24...
  • Page 21 Evaluation Board User Guide UG-001 Figure 30. Evaluation Board Layout, Ground Plane (Layer 5) Rev. 0 | Page 21 of 24...
  • Page 22 UG-001 Evaluation Board User Guide Figure 31. Evaluation Board Layout, Bottom Side Rev. 0 | Page 22 of 24...
  • Page 23: Ordering Information

    Evaluation Board User Guide ORDERING INFORMATION BILL OF MATERIALS Table 1. Item Reference Designator C101, C102, C106, C110, C111, C115, C120, C121, C125, C130, C131, C136, C201, C202, C206, C210, C211, C215, C220, C221, C225, C230, C231, C236, C301, C302, C304, C305, C306, C307, C308, C309, C401, C402, C403, C404, C409, C410, C412, C413, C414, C415, C416, C419, C420, C421, C422, C423, C425,...
  • Page 24: Esd Caution

    Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Analog Devices reserves the right to change devices or specifications at any time without notice.
