AD9361 Reference Manual UG-570
VOLTAGE TRANSIENT ON THE 1.3V LINE WHEN THE TRANSMITTERS TURN ON
VTUNE VOLTAGE OF THE RX VCO THAT IS PROBED ON THE RX EXT LO LINE
VTUNE VOLTAGE OF THE TX VCO THAT IS PROBED ON THE TX EXT LO LINE

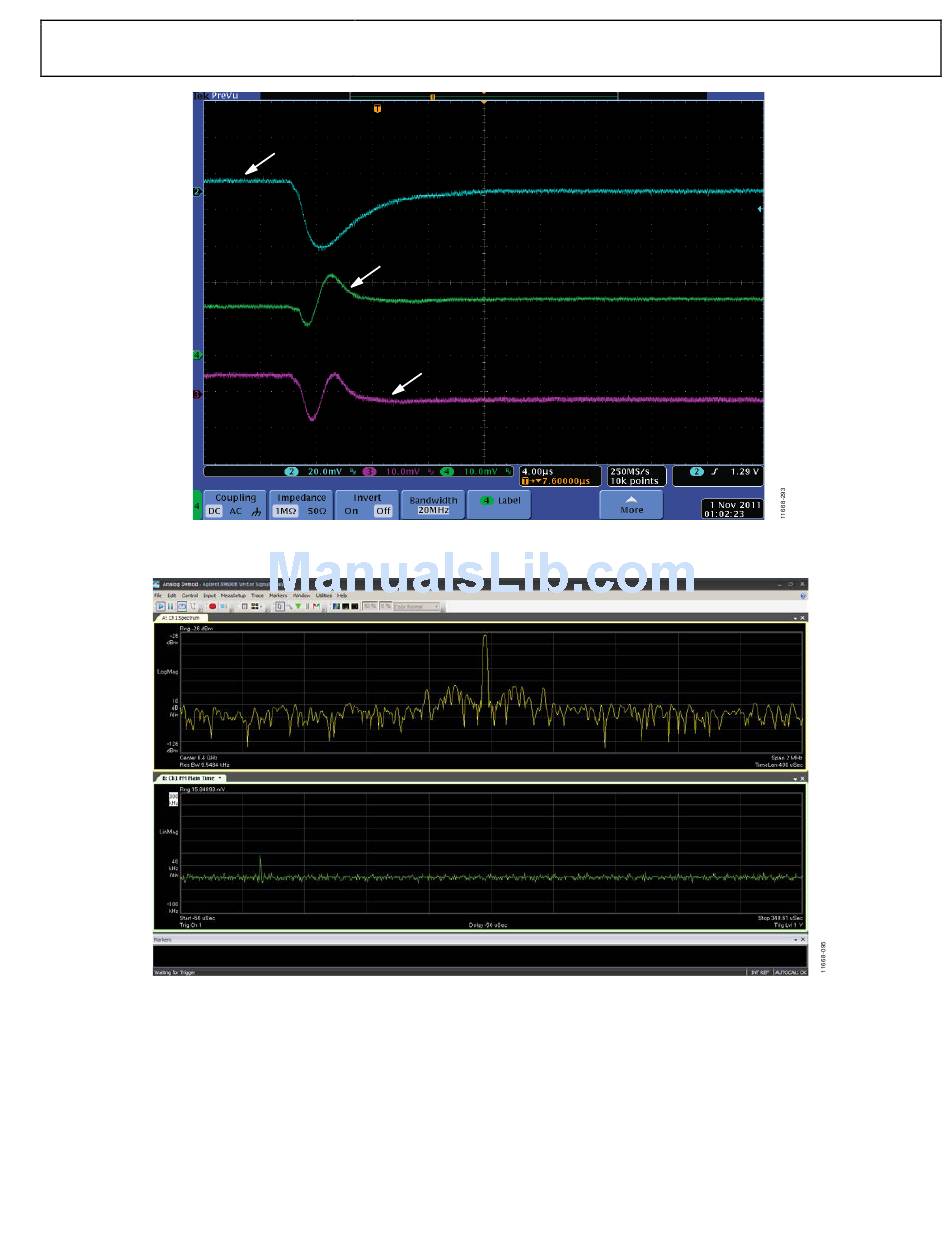

Figure 93. Voltage Transient on the 1.3 V Supply and Vtune of the Rx and the Tx VCO
Figure 94. Instantaneous Frequency Deviation Seen Due to a Voltage Transient on the 1.3 V Supply: VDDA1P3_Rx_SYNTH, VDDA1P3_Tx_SYNTHs Supplied Externally
Rev. A | Page 127 of 128
